Texas Instruments TPS74801RGWR

Part No.:: TPS74801RGWR

Manufacturer:: Texas Instruments

Package:: 20-VQFN Exposed Pad

Datasheet:: TPS74801RGWR.pdf

Description:: IC REG LIN POS ADJ 1.5A 20VQFN

In Stock:: 18828

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS74801RGWR Specifications

Package/Case:
20-VQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Adjustable
NumberofRegulators:
1
Voltage-Input(Max):
5.5V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
3.6V
VoltageDropout(Max):
0.16V @ 1.5A
Current-Output:
1.5A
Current-Quiescent(Iq):
-
Current-Supply(Max):
-
PSRR:
50dB ~ 30dB (1kHz ~ 300kHz)
ControlFeatures:
Enable, Power Good, Soft Start
ProtectionFeatures:
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TPS74801RGWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS74801RGWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS74801RGWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS74801RGWR information

Views：

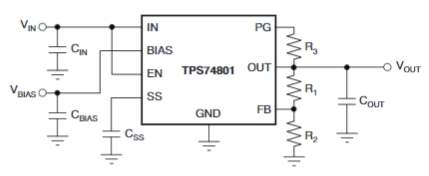

TPS74801RGWR Typical application Circuitry

TPS74801RGWR

The TPS74801RGWR is a low-dropout (LDO) linear voltage regulator designed by Texas Instruments. This device is tailored to provide precise voltage regulation and is equipped with several features for enhanced performance and safety. Here are some key features and specifications:

1. Output Voltage: The TPS74801RGWR is an adjustable voltage regulator, which means that the output voltage can be set to a desired value within a specified range using external resistors.

2. Package: The "RGWR" in the part number indicates that the device is packaged in a VQFN-20 package, which is a very thin quad flat no-lead package with 20 leads.

3. Low-Dropout Voltage: The TPS74801 is designed with a low dropout voltage, enabling stable voltage regulation even when the input and output voltages are close to each other.

4. High Output Accuracy: This device offers high accuracy and stability in the output voltage, which is crucial for applications that require a precise power supply.

5. Enable Pin and Power Good: The TPS74801 series includes an enable pin for turning the device on/off and a power good (PG) pin that provides an indication of the output voltage regulation status.

6. Over-Current and Over-Temperature Protection: The TPS74801RGWR includes safety features that protect the device from excessive current and overheating conditions.

7. Stable with Small Capacitors: The device is designed to operate stably with small ceramic output capacitors, which is beneficial in space-constrained applications.

8. Low Quiescent Current: The TPS74801 features low quiescent current, helping to minimize power consumption during no-load or low-load conditions.

9. Input Voltage Range: The TPS74801RGWR supports a wide input voltage range, offering flexibility for various applications.

10. Output Current: The TPS74801RGWR is designed to deliver an output current of up to 1.5A, making it suitable for applications requiring moderate levels of current.

11. Noise Reduction: The device incorporates features for reducing output voltage noise, making it suitable for noise-sensitive applications.

The TPS74801RGWR is suitable for a variety of applications that require a stable, adjustable, and efficient power supply, such as RF supply, post-regulation for switching power supplies, FPGA, DSP, microcontroller power, and more. For detailed specifications, pin configurations, layout guidelines, and application notes, it's recommended to consult the datasheet provided by Texas Instruments.
