Texas Instruments TPIC8101DW

Part No.:: TPIC8101DW

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: TPIC8101DW.pdf

Description:: IC KNOCK SENSOR INTERFACE 20SOIC

In Stock:: 3462

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPIC8101DW Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tube
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Type:
Sensor Interface
InputType:
Serial
OutputType:
Serial
Current-Supply:
20 mA
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TPIC8101DW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPIC8101DW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPIC8101DW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPIC8101DW information

Views：

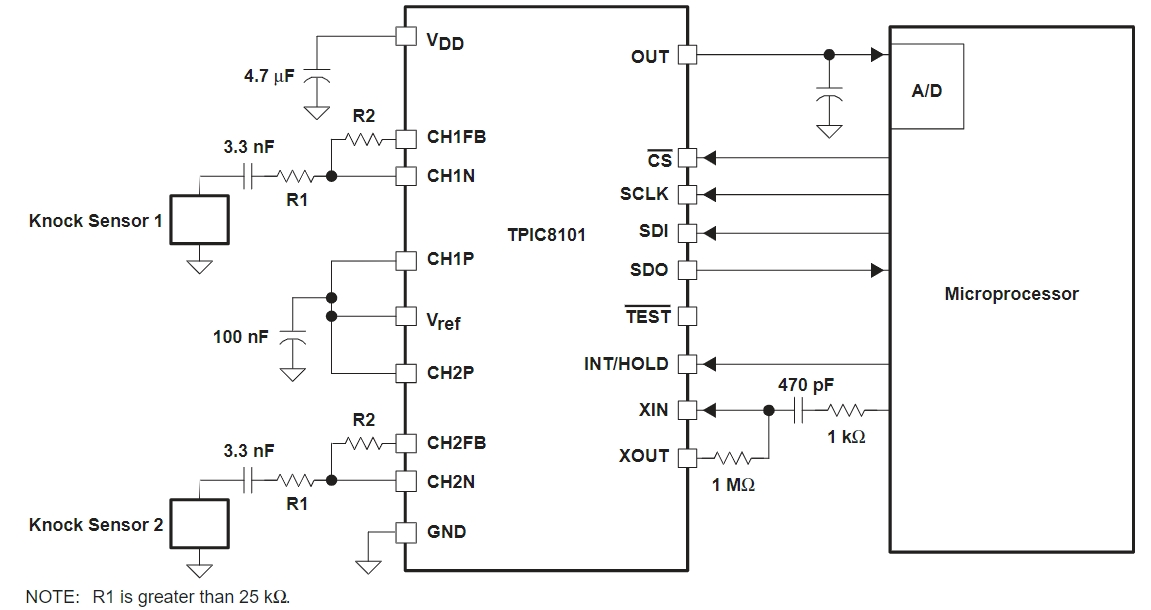

TPIC8101DW Typical application Circuitry

TPIC8101DW

The TPIC8101DW is an integrated circuit designed for signal processing in automotive applications, particularly in the context of engine knock detection. This chip is specifically tailored to process and analyze signals from knock sensors, aiding in the management of engine combustion processes.

Functionality and Application Scenarios

1. Engine Knock Detection in Automobiles: The TPIC8101DW is employed in the automotive sector to interface with knock sensors. Its primary role is to detect engine knock, a condition that can lead to inefficient combustion and potential engine damage.

2. Signal Processing for Piezoelectric Sensors: It specializes in conditioning signals from piezoelectric knock sensors, filtering and amplifying them for better analysis.

Features and Parameters

1. Dual-Channel Input: It supports inputs from two sensors, catering to multi-cylinder engines.

2. Configurable Filter and Gain: The IC allows for tuning of filter frequencies and amplifier gain to suit specific engine types.

3. On-Chip Diagnostics: Incorporates diagnostic features for system checks and reliability.

Circuit Implementation: Implementing a Knock Detection Circuit

Scenario: Creating a knock detection system for a four-cylinder engine using TPIC8101DW.

1. Sensor Connections:

- Overview: Attach knock sensors to the IC.

- Details: Connect the piezoelectric knock sensors to pins 14 and 15, which are the sensor input pins.

2. Powering the IC:

- Overview: Supply power to the IC.

- Details: Apply a 5V power supply to pin 16 (VDD) and connect pin 5 (VSS) to the ground.

3. Filter Frequency Setting:

- Overview: Adjust the filter.

- Details: Configure the filter frequency by adding resistors and capacitors to pins 6, 7, 8, and 9, tailored to the engine's specifications.

4. Gain Adjustment:

- Overview: Set the gain for amplification.

- Details: Adjust the gain level using external resistors connected to pins 10 and 11.

5. Output Management:

- Overview: Route processed signals.

- Details: Connect output pins 2 and 3 to the engine control unit (ECU) for further processing.

6. Diagnostic Feature Use:

- Overview: Leverage the chip's diagnostics.

- Details: Utilize the self-test function by activating a signal on pin 4, monitoring the system's health.

Design Considerations

In designing with the TPIC8101DW, consider:

1. Electromagnetic Interference (EMI) Mitigation: Implement design strategies to minimize EMI effects on the sensitive knock sensors.

2. Consistent Power Delivery: Ensure the power supply is stable for accurate IC operation.

3. Component Quality: Use high-quality external components for the filter and gain settings to ensure reliability.

4. Thermal Management: Address thermal issues, as automotive environments can be extreme.

5. ECU Compatibility: Make sure the IC's outputs are compatible with the ECU's input requirements.

By integrating these considerations with the TPIC8101DW, you can develop an efficient knock detection system, crucial for maintaining optimal engine performance and longevity.
