Texas Instruments TPA3251D2DDVR

Part No.:: TPA3251D2DDVR

Manufacturer:: Texas Instruments

Package:: 44-HTSSOP

Datasheet:: TPA3251D2DDVR.pdf

Description:: IC AMP CLSS D STER 220W 44HTSSOP

In Stock:: 3270

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPA3251D2DDVR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
PurePath™
ProductStatus:
Active
Type:
Class D
OutputType:
2-Channel (Stereo)
MaxOutputPowerxChannels@Load:
220W x 2 @ 3Ohm
Voltage-Supply:
12V ~ 36V
Features:
Depop, Short-Circuit and Thermal Protection
MountingType:
Surface Mount
OperatingTemperature:
0°C ~ 70°C (TA)

TPA3251D2DDVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPA3251D2DDVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPA3251D2DDVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPA3251D2DDVR information

Views：

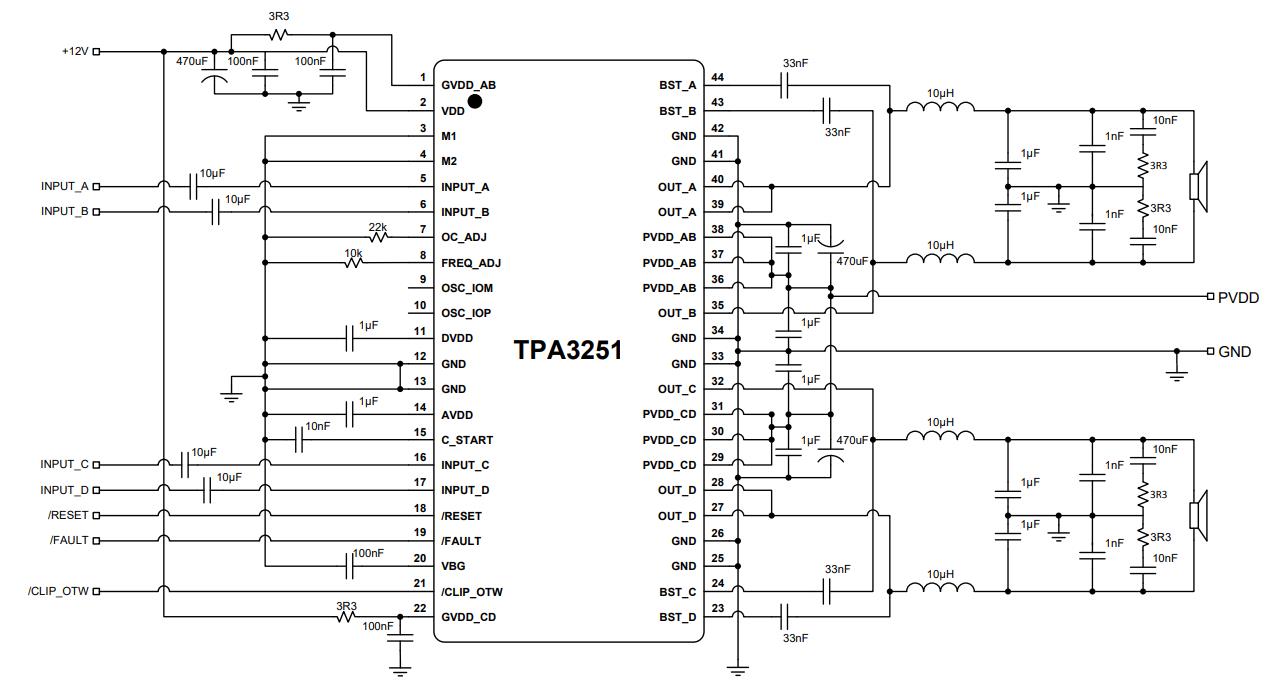

TPA3251D2DDVR Typical application Circuitry

TPA3251D2DDVR

The TPA3251D2DDVR is an ultra-high-definition, high-efficiency Class-D audio amplifier from Texas Instruments, perfect for audio applications that demand top-tier sound quality and efficiency.

Key Features of TPA3251D2DDVR: This chip exhibits numerous high-quality features including high efficiency of up to 91%, the ability to handle 2 x 175 W output into 4-Ω load or 1 x 350 W output into 2-Ω load, an integrated self-protection circuit with overvoltage, undervoltage, overtemperature, DC detection, and short circuit with error reports, as well as a broad voltage 4.5 to 36 volt power range.

Typical Applications: The TPA3251D2DDVR is used in professional audio equipment, premium home theaters, active speakers, and musical instruments due to its top-notch sound reproduction capability.

Circuit Connection in a Home Theater System: Let's delve into the specifics of using the TPA3251D2DDVR in a home theater system:

1. Supply Voltage: The PVCC (Pin 23) must be connected to a power supply within the operating voltage range (4.5V to 36V) while PGND (Pin 24) is connected to the ground.

2. Speaker Outputs: The audio outputs are from OUTP (Pin 21) and OUTN (Pin 20), which are connected to the positive and negative terminals of the speaker respectively.

3. Audio Inputs: The INP (Pin 6) and INN (Pin 5) are the positive and negative audio inputs. They should be connected to the audio output of your source device.

4. Fault Reporting: FAULT (Pin 1) should be connected to the microcontroller to monitor the status of the amplifier. When an error condition occurs, this pin will be driven low.

5. Gain Setting: The GAIN0 and GAIN1 pins (Pins 2 and 3) are used for setting the gain of the amplifier. These pins can be tied to VDD, ground, or left open for different gain configurations.

Design Considerations: While integrating the TPA3251D2DDVR into your design, consider the following aspects:

1. PCB Layout: To ensure excellent sound quality, a well-designed PCB layout is crucial. Keep power tracks and audio tracks separate to avoid noise interference.

2.Power Supply: Make sure your power supply can deliver the necessary current without significant voltage drops or noise, as these can affect sound quality.

3. Thermal Management: The TPA3251D2DDVR can generate significant heat at high output levels. Therefore, ensure adequate heat dissipation through a well-designed heat sink or similar solution.

4. Speaker Selection: The speaker impedance and power rating should match the capabilities of the TPA3251D2DDVR. The amplifier or speakers may get distorted or damaged if the wrong speakers are used.

The TPA3251D2DDVR delivers top-notch audio performance while maintaining high efficiency, thus making it a reliable choice for premium audio applications. With careful attention to design aspects such as PCB layout, power supply, thermal management, and speaker selection, you can maximize its capabilities.
