Texas Instruments TMS5701114CPGEQQ1

Part No.:: TMS5701114CPGEQQ1

Manufacturer:: Texas Instruments

Package:: 144-LQFP

Datasheet:: TMS5701114CPGEQQ1.pdf

Description:: IC MCU 16/32BIT 1MB FLSH 144LQFP

In Stock:: 3897

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMS5701114CPGEQQ1 Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R
RoHS:
RoHS
Speed:
160MHz
RAM Size:
128K x 8
Core Size:
16/32-Bit
EEPROM Size:
64K x 8
Part Status:
Active
Peripherals:
DMA, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, LINbus, MibSPI, SCI, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
64
Core Processor:
ARM® Cortex®-R4F
Data Converters:
A/D 24x12b
Oscillator Type:
External
Program Memory Size:
1MB (1M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 125°C (TA)

TMS5701114CPGEQQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMS5701114CPGEQQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMS5701114CPGEQQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TMS5701114CPGEQQ1 information

Views：

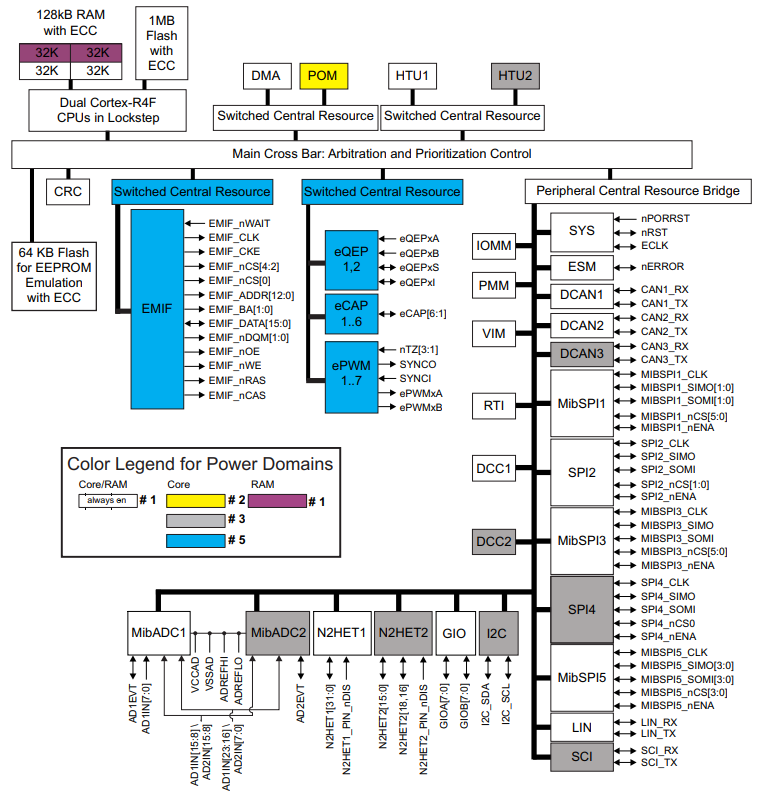

TMS5701114CPGEQQ1 Typical application Circuitry

TMS5701114CPGEQQ1 is a sophisticated microcontroller unit (MCU) that is part of the broader TMS570 series provided by Texas Instruments. Engineered for resilience and adaptability, this microcontroller addresses various needs in safety-critical applications.

Characteristics of TMS5701114CPGEQQ1

TMS5701114CPGEQQ1 boasts a myriad of technical specifications, primarily characterized by:

1. A state-of-the-art ARM Cortex-R4F CPU designed for optimal computing performance.

2. A built-in memory configuration consisting of ECC Flash and RAM.

3. Enhanced error-signaling modules for reinforced system safety.

4. Multiple communication channels, which could range from CAN interfaces, LIN, SPI, to UART, facilitating diverse connectivity options.

5. Innovative safety features, including a built-in self-test mechanism and Error Signaling Module (ESM) for diagnosing and signaling system faults.

Probable Application Domains

The TMS5701114CPGEQQ1 is particularly effective in applications necessitating high-reliability and stringent safety requirements. These might encompass automotive systems (e.g., Advanced Driver Assistance Systems or ADAS, Electronic Control Units or ECUs), industrial controls, robotic mechanisms, and even aerospace controls.

For the sake of clarity, let's delve into one application: an automotive Electronic Control Unit (ECU) responsible for engine management.

Detailed Circuit Integration

Power Configuration: All VDD pins must be reliably linked to the designated power supply, commonly 3.3V. Concurrently, all VSS pins should be securely grounded. This establishes the primary power framework for the TMS5701114CPGEQQ1.

Engine Sensor Integration: Harnessing the ADC channels, engine sensors, such as temperature or oxygen sensors, can be efficiently connected. A typical pin like A3 can serve as the ADC input for the oxygen sensor.

Communication Mechanism: For seamless data transmission regarding engine stats, one can utilize the CAN interface. In this regard, pins D15 (CAN2TX) and D14 (CAN2RX) are crucial touchpoints for communication with other vehicular ECUs.

Clock Source Connection: The TMS5701114CPGEQQ1 necessitates a consistent clock signal, typically catered by connecting an external oscillator to dedicated pins, often G9 and G10.

Reset Mechanism: To enable dependable resetting capabilities, the pin earmarked as nRESET should be meticulously connected to an established reset circuit.

Programming & Debugging Access: For efficient debugging and programming, ensure that the JTAG interface pins, including but not limited to TMS, TDI, TDO, and TCK, are not only accessible but also tethered to the appropriate connector.

Design Considerations

When orchestrating a circuit around TMS5701114CPGEQQ1, engineers must be privy to:

1. Decoupling Capacitance: In proximity to each VDD pin, it's paramount to position decoupling capacitors. Their primary role is to neutralize high-frequency power noise.

2. Safety Protocols: Given its pivotal role in safety-critical applications, TMS5701114CPGEQQ1 mandates that all safety tools, such as error checks and the built-in self-test, are actively engaged.

3. Thermal Management: Automotive applications can often induce thermal stress. Hence, ensuring all components, including TMS5701114CPGEQQ1, can weather temperature fluctuations is crucial.

4. Pin Optimization: Any pins left unused should be aptly managed to curtail unnecessary energy drainage or electromagnetic disturbances.

Conclusively, the TMS5701114CPGEQQ1 is a powerhouse microcontroller, adept at shouldering safety-critical tasks in various domains. However, to unlock its full potential, designers should judiciously follow the outlined considerations.
