What is the Additional Feature ?

Name: TMS320F28069PZPS
Brand: Texas Instruments
SKU: TMS320F28069PZPS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TMS320F28069PZPS

Part No.:: TMS320F28069PZPS

Manufacturer:: Texas Instruments

Package:: 100-TQFP Exposed Pad

Datasheet:: TMS320F28069PZPS.pdf

Description:: IC MCU 32BIT 256KB FLSH 100HTQFP

In Stock:: 3302

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMS320F28069PZPS Specifications

Package/Case:
100-TQFP Exposed Pad
Packaging:
Tray
Series:
C2000™ C28x Piccolo™
RoHS:
RoHS
Speed:
90MHz
RAM Size:
50K x 16
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity:
CANbus, I²C, McBSP, SCI, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
54
Core Processor:
C28x
Data Converters:
A/D 16x12b
Oscillator Type:
Internal
Program Memory Size:
256KB (128K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 125°C (TA)

TMS320F28069PZPS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMS320F28069PZPS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMS320F28069PZPS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TMS320F28069PZPS information

Views：

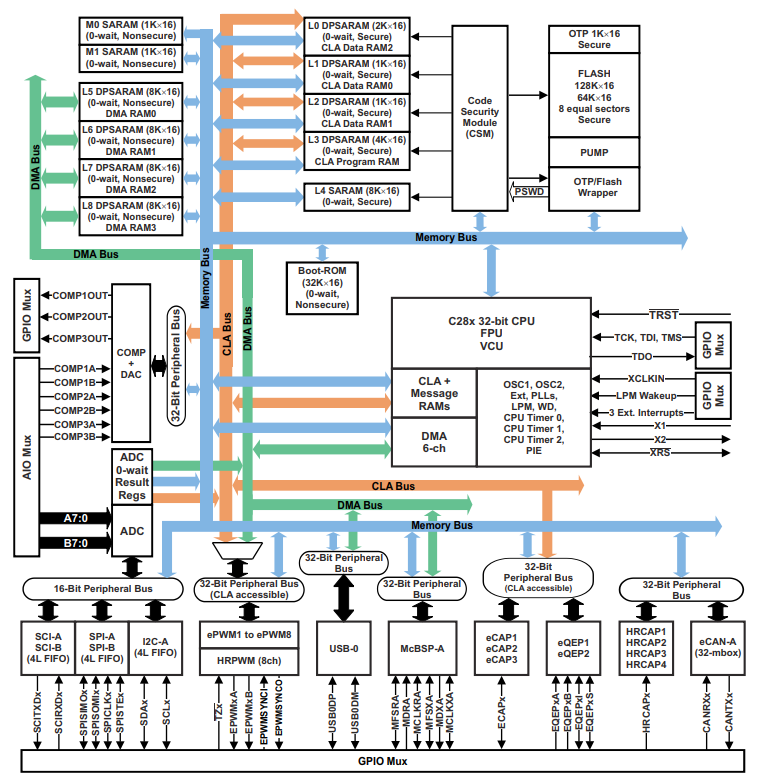

TMS320F28069PZPS Typical application Circuitry

The TMS320F28069PZPS is an embedded microcontroller component of the TMS320 C2000 series from Texas Instruments, specifically optimized for digital control applications.

TMS320F28069PZPS Applications:

- Motor control (e.g., servo, BLDC, PMSM)

- Renewable energy systems (solar inverters, etc.)

- Power factor correction (PFC) converters

- Digital power supplies

- Advanced sensing and feedback systems

Distinctive Features of TMS320F28069PZPS:

1. Integrated with the C28x CPU core combined with the Control Law Accelerator (CLA) for parallel processing.

2. Features an abundance of pulse width modulation (PWM) channels, ideal for digital power conversion.

3. Comes with an array of ADC channels for concurrent multi-sensor reading.

4. Integrated Viterbi, Complex Math, and CRC units.

5. Enhanced communication interfaces like CAN, UART, I2C, and SPI.

Taking Motor Control as a focal application, let's map out the circuit setup for TMS320F28069PZPS.

1. Core Power Arrangement:

For TMS320F28069PZPS:
- VDDIO (e.g., Pin 23) should be connected to a 3.3V supply, with decoupling capacitors to suppress voltage spikes.
- VSS (Ground, e.g., Pin 22) is the common ground reference.

2. Boot Mode Selection:

Multiple GPIO pins dictate the boot mode. For a standard GPIO mode:
- Connect BOOTCFG pins (like Pin 18) to the appropriate high or low logic levels as per the desired mode.

3. Programming (JTAG) Interface:

To program and debug TMS320F28069PZPS:
- TDI: Pin 58
- TDO: Pin 59
- TCK: Pin 56
- TMS: Pin 57

4. Motor Control Feedback (ADCs):

For feedback from the motor (like back EMF or current sensing):
- Connect motor sensors to ADC pins, e.g., ADCINA2 (Pin 39) or ADCINB2 (Pin 71).

5. PWM Outputs for Motor Control:

These outputs control the motor phases.
- ePWM1A (Pin 98) and ePWM1B (Pin 99) can drive a half-bridge, which in turn drives one phase of a BLDC motor.

6. Serial Communication (For feedback or diagnostics):

- UART_RX (Pin 32) and UART_TX (Pin 31) can be linked for serial communication to other peripherals or systems.

Designing with TMS320F28069PZPS - What to Heed?

1. Thermal Considerations: The TMS320F28069PZPS can get warm during intensive operations. Adequate heat dissipation techniques or heat sinks might be crucial.

2. Signal Integrity: Given the high-speed nature of motor control, it's pivotal to maintain proper trace lengths and avoid cross-talk between channels.

3. External Components: Select external components, like gate drivers or ADC input conditioning circuits, that can match the speed and precision of the MCU.

4. Safety Protocols: In motor control applications, implement safety protocols to handle fault conditions.

Conclusively, the TMS320F28069PZPS serves as a bedrock for intricate digital control applications, particularly motor control. By following design best practices and ensuring safety, the microcontroller will undoubtedly fulfill its promise of efficiency and precision.
