Texas Instruments TMP75AIDGKRG4

Part No.:: TMP75AIDGKRG4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: TMP75AIDGKRG4.pdf

Description:: SENSOR DIGITAL -40C-125C 8VSSOP

In Stock:: 3204

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMP75AIDGKRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
SensorType:
Digital, Local
SensingTemperature-Local:
-40°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
I²C/SMBus
Voltage-Supply:
2.7V ~ 5.5V
Resolution:
11 b
Features:
One-Shot, Output Switch, Programmable Resolution, Shutdown Mode, Standby Mode
Accuracy-Highest(Lowest):
±2°C (±3°C)
TestCondition:
-25°C ~ 85°C (-40°C ~ 125°C)
OperatingTemperature:
-55°C ~ 127°C
MountingType:
Surface Mount

TMP75AIDGKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMP75AIDGKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMP75AIDGKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TMP75AIDGKRG4 information

Views：

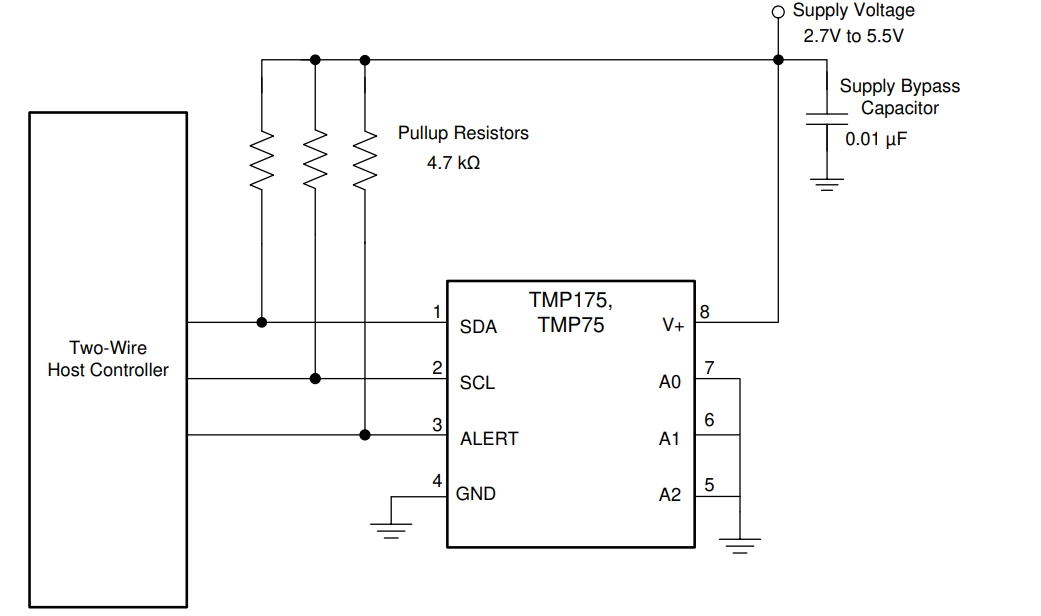

TMP75AIDGKRG4 Typical application Circuitry

TMP75AIDGKRG4

The TMP75AIDGKRG4 is a digital temperature sensor integrated circuit (IC) manufactured by Texas Instruments, known for its precision and versatility in various applications. This IC TMP75AIDGKRG4 features an onboard 12-bit analog-to-digital converter (ADC) and communicates over the I2C/SMBus, making it highly suitable for digital systems requiring accurate temperature monitoring.

Functionality of the TMP75AIDGKRG4

This sensor excels in measuring temperature with high precision and providing the readings digitally via an I2C interface. It's designed for applications where digital connectivity and precise temperature data are critical.

Application Scenarios

1. HVAC Systems: Perfect for controlling air conditioning, heating, and ventilation system temperature.

2. Electronic Device Monitoring: Used in PCs and servers for thermal management.

3. Medical Equipment: Applicable for temperature monitoring in sensitive medical devices.

Key Specifications

- 12-bit ADC: Ensures high-resolution temperature readings.

- I2C/SMBus Interface: Facilitates straightforward digital integration.

- Wide Temperature Measurement Range: Suitable for diverse environmental conditions.

- Programmable Temperature Alert: Enhances safety with overtemperature notifications.

- Low Power Consumption: Optimal for energy-saving applications.

- Compact Package (MSOP-8): Ideal for designs with limited space.

- Accuracy: Provides reliable temperature measurements.

- Versatility: Suitable for various digital monitoring systems.

Circuit Design: PC Thermal Management

Incorporating the TMP75AIDGKRG4 into a PC thermal management system involves several crucial steps:

1. Power Supply (Pin 8 - VDD)

- Connect this pin to a stable 3.3V or 5V source. Maintaining a stable power supply is crucial for accurate temperature readings.

2. Ground (Pin 5 - GND)

- This pin should be connected to the system ground to reduce noise and ensure accurate readings.

3. I2C Data Line (Pin 6 - SDA)

- Connect to the PC's I2C data line for digital communication of temperature data.

4. I2C Clock Line (Pin 7 - SCL)

- Attach this pin to the I2C clock line for synchronized data transmission.

Design Considerations

- Stable Power Source: Essential for the sensor's precision and reliability.

- I2C Communication Integrity: Ensure robust and clear communication for real-time temperature monitoring.

- Noise Immunity: Design the circuit to minimize electrical noise, crucial in PC environments.

- Programmable Alert Feature: Set appropriate temperature thresholds for system protection.

- Sensor Placement: Locate the sensor in a position that accurately reflects PC component temperatures.

- Thermal Response Time: Consider the sensor's response time for effective thermal management.

- Energy Efficiency: Optimize the circuit for low power consumption.

- Integration with Control Systems: Ensure seamless integration with the PC's cooling system.

In summary, the TMP75AIDGKRG4 is a highly suitable choice for PC thermal management, offering precise temperature monitoring, digital I2C interface, programmable alerts, and low power consumption. Designing with this IC requires careful consideration of power supply stability, communication pathways, sensor placement, and integration into the broader thermal control system to ensure effective and reliable temperature management.
