Analog Devices Inc./Maxim Integrated TMC4671-LA

Part No.:: TMC4671-LA

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 76-VFQFN Exposed Pad

Datasheet:

Description:: ETHERNET ICS SERVO CONTROLLER IC

In Stock:: 2295

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMC4671-LA Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Multiphase
MotorType-ACDC:
Brushless DC (BLDC) Servo, Brushed DC Servo
Function:
Controller - Commutation, Direction Management
OutputConfiguration:
Pre-Driver - Half Bridge (3)
Interface:
SPI, Step/Direction, UART
Technology:
Power MOSFET
StepResolution:
-
Applications:
Servo
Current-Output:
70mA
Voltage-Supply:
1.65V ~ 1.95V, 3.15V ~ 3.45V
Voltage-Load:
-
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TMC4671-LA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMC4671-LA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMC4671-LA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TMC4671-LA information

Views：

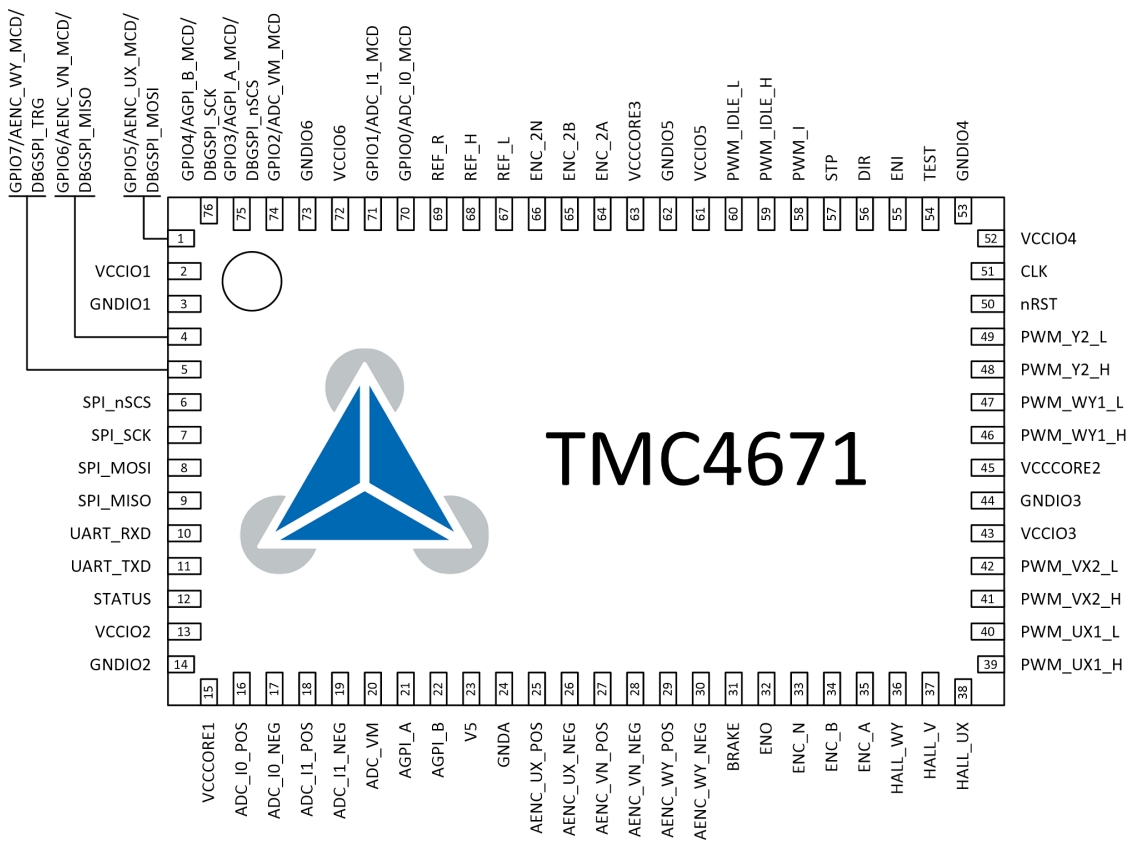

TMC4671-LA Typical application Circuitry

TMC4671-LA

The TMC4671-LA is a part of Trinamic's TMC product line, specifically designed for servo motor controlling, providing a highly integrated and sophisticated solution for various applications. This IC is notable for its capacity to manage and control servo motors, offering features like precise position, speed, and torque control, making it highly suitable for applications that require detailed and dynamic motor management.

1. Power Supply Connections: For the TMC4671-LA, a stable power supply must be connected to the VCC pin for the IC's logic operations and potentially separate power inputs for the motor, depending on the external driver setup. Ensuring a clean and stable power source is vital for the IC's performance and reliability.

2. Motor Encoder Feedback: One of the TMC4671-LA's standout features is its support for various feedback mechanisms. The device can interface with incremental encoders, Hall sensors, and absolute encoders, providing feedback necessary for precise motor control. These connections are typically made through specific pins designated for encoder input.

3. External Motor Driver Interface: The TMC4671-LA often interfaces with an external motor driver to control the motor's power stages. It outputs signals like PWM or analog outputs for current control, which need to be correctly connected to the motor driver to facilitate effective motor control.

4. SPI Interface for Communication: The TMC4671-LA utilizes an SPI communication protocol to interface with a microcontroller or processor for configuration and control. The relevant pins (such as SPI MOSI, MISO, SCK, and CS) must be accurately connected for proper communication, allowing for the configuration of the IC and real-time control and monitoring.

5. Analog and Digital I/O: The IC offers several analog and digital inputs and outputs for additional functionalities like end-stop switches, extra sensor inputs, or even for implementing custom control logic. Proper utilization of these I/Os can greatly enhance the application's functionality and responsiveness.

By effectively connecting and configuring these key points, the TMC4671-LA can be fully utilized to implement sophisticated control algorithms for servo motors, thereby enabling high-precision positioning, speed control, and efficient torque management in applications such as robotics, CNC machines, and automated assembly lines.
