What is the Additional Feature ?

Name: TM4C1294NCPDTT3
Brand: Texas Instruments
SKU: TM4C1294NCPDTT3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TM4C1294NCPDTT3

Part No.:: TM4C1294NCPDTT3

Manufacturer:: Texas Instruments

Package:: 128-TQFP

Datasheet:: TM4C1294NCPDTT3.pdf

Description:: IC MCU 32BIT 1MB FLASH 128TQFP

In Stock:: 2847

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TM4C1294NCPDTT3 Specifications

Package/Case:
128-TQFP
Packaging:
Tray
Series:
Tiva™ C
RoHS:
RoHS
Speed:
120MHz
RAM Size:
256K x 8
Core Size:
32-Bit
EEPROM Size:
6K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, Ethernet, I²C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
90
Core Processor:
ARM® Cortex®-M4F
Data Converters:
A/D 20x12b
Oscillator Type:
Internal
Program Memory Size:
1MB (1M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 105°C (TA)

TM4C1294NCPDTT3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TM4C1294NCPDTT3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TM4C1294NCPDTT3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TM4C1294NCPDTT3 information

Views：

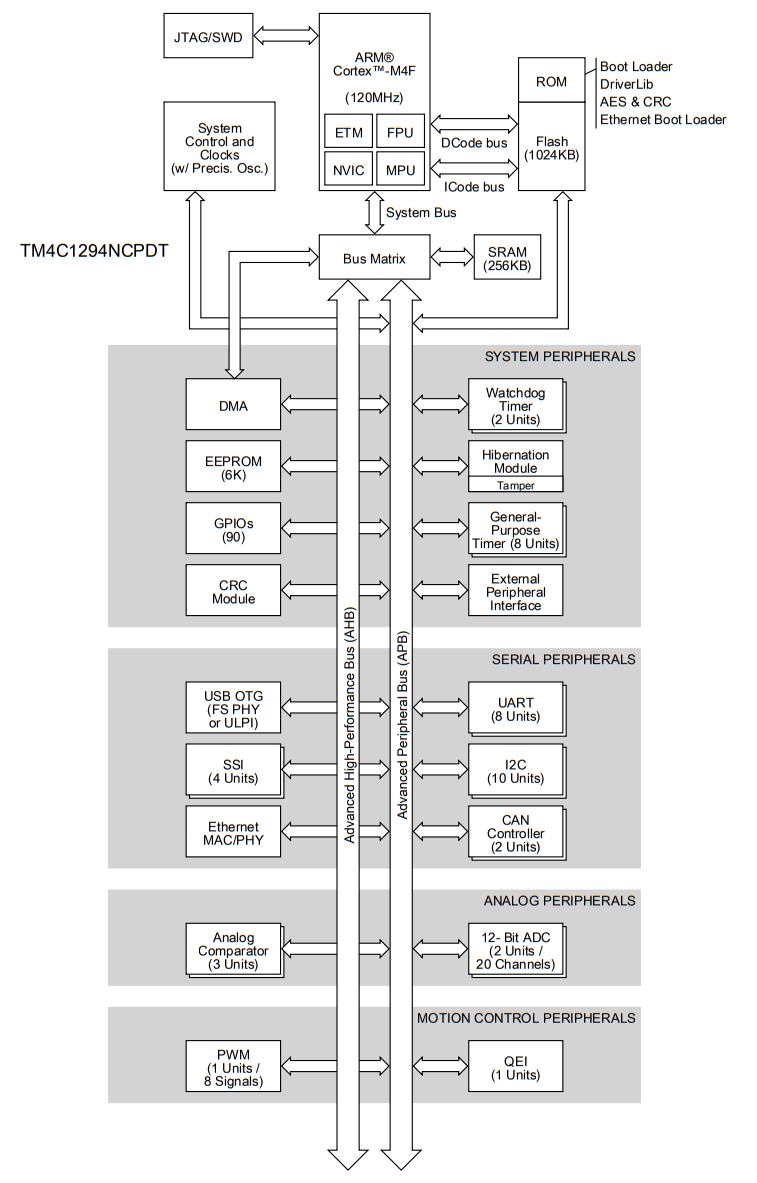

TM4C1294NCPDTT3 Typical application Circuitry

The TM4C1294NCPDTT3 is an advanced microcontroller from Texas Instruments' Tiva C series, designed with an emphasis on connectivity solutions.

Applications of TM4C1294NCPDTT3:

- Ethernet-based industrial automation

- Home automation systems

- Smart grid infrastructure

- Medical devices and equipment

- Point of Sale (PoS) systems

Key Attributes of TM4C1294NCPDTT3:

1. Manufactured using the ARM Cortex-M4 processor with floating-point.

2. Inbuilt Ethernet MAC+PHY for connectivity.

3. Packed with a large amount of Flash memory and SRAM.

4. Incorporates various communication peripherals like UART, I2C, SPI.

5. Enhanced security and encryption features.

6. Low power consumption modes for efficient energy management.

Focusing on Ethernet-based industrial automation as an application, let's chart out the circuit incorporation for TM4C1294NCPDTT3.

1. Power Supply Setup:

Powering the TM4C1294NCPDTT3 involves connecting the VDD (3.3V) and GND pins. It's good practice to place decoupling capacitors close to the power pins to smooth out voltage transients.

2. Programming Interface:

For the TM4C1294NCPDTT3, programming can be achieved using the JTAG interface. Here are the key pins:
- TDI: Pin 78
- TDO: Pin 79
- TCK: Pin 76
- TMS: Pin 77

3. Ethernet Connection:

To exploit the built-in Ethernet MAC+PHY:
- Connect ETH_RXD0 and ETH_RXD1 to the respective differential pairs of an Ethernet jack.
- Similarly, ETH_TXD0 and ETH_TXD1 will connect to the jack's transmit differential pairs.
- The jack might also need connections for LEDs indicating link status.

4. Serial Debugging (UART):

For diagnostic or console outputs, establish a UART connection:
- U0RX (Pin 13) and U0TX (Pin 12) can be linked to an external USB-to-serial converter or directly interfaced with other serial devices.

5. Reset Mechanism:

A reset button can be connected to the RST/NMI (Pin 1) pin, tied to ground with a pull-up resistor ensuring stability.

Anticipate these facets while designing with TM4C1294NCPDTT3:

1. Electrostatic Discharge (ESD) Protection: Especially crucial for Ethernet interfaces.

2. Clock Sources: TM4C1294NCPDTT3 can utilize external or internal oscillators. Ensure the right components are in place for your clocking scheme.

3. Interrupt Handling: Prioritize interrupts aptly for smooth operations, especially in time-sensitive applications.

4. Isolation: For industrial applications, consider isolation techniques to protect the MCU from surges or noises.

To sum it up, the TM4C1294NCPDTT3 is a powerhouse for connected applications. By prudently addressing design facets, this MCU can be a linchpin for robust and reliable systems.
