Infineon Technologies TLE6281GXUMA1

Part No.:: TLE6281GXUMA1

Manufacturer:: Infineon Technologies

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: TLE6281GXUMA1.pdf

Description:: IC MOTOR DRIVER 7.5V-60V 20DSO

In Stock:: 3226

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLE6281GXUMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
MotorType-Stepper:
-
MotorType-ACDC:
Brushed DC
Function:
Controller - Commutation, Direction Management
OutputConfiguration:
Pre-Driver - Half Bridge (2)
Interface:
PWM
Technology:
Power MOSFET
StepResolution:
-
Applications:
General Purpose
Current-Output:
-
Voltage-Supply:
7.5V ~ 60V
Voltage-Load:
-
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TLE6281GXUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLE6281GXUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLE6281GXUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLE6281GXUMA1 information

Views：

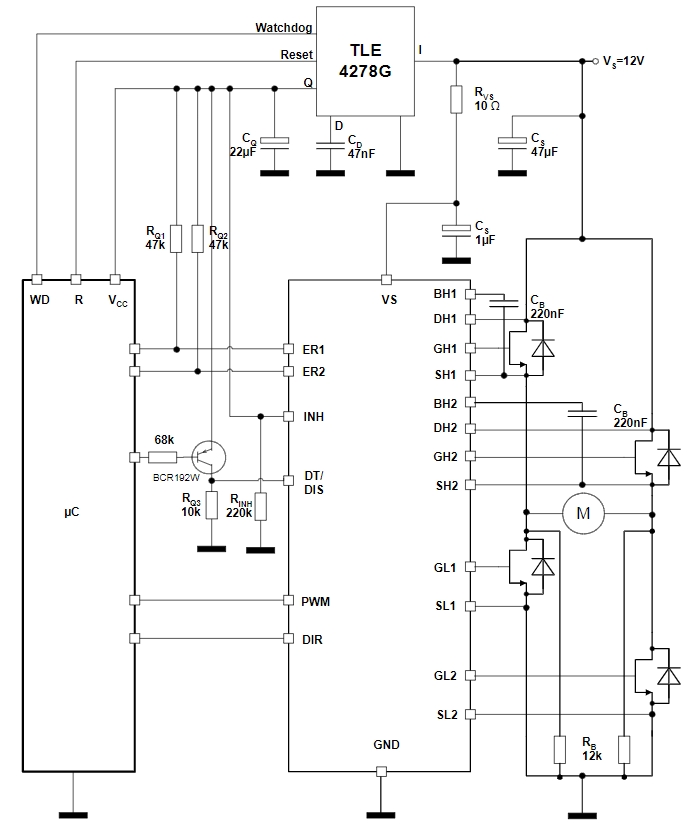

TLE6281GXUMA1 Typical application Circuitry

TLE6281GXUMA1

The TLE6281GXUMA1 is a specialized H-bridge driver IC, primarily designed for controlling MOSFET power stages. This chip is particularly effective in applications involving DC-brush high-current motor bridges and operates efficiently in PWM (Pulse Width Modulation) control mode. It's widely used in various power network systems, including 12V, 24V, and 42V.

Important Uses and Features of TLE6281GXUMA1:

With a number of features, the TLE6281GXUMA1 is appropriate for demanding uses. These include:

- High Current Motor Control: This IC is ideal for DC-brush motor applications, especially in automotive and industrial environments where high current control is required.

- PWM DIR Interface: It supports PWM control up to 50kHz, which is essential for precise motor speed and torque control.

- Multiple Protection Functions: Including short circuit protection for each MOSFET, driver undervoltage shutdown, and thermal overload warning, enhancing the reliability and safety of the application.

- Low EMC Sensitivity and Emission: In situations where electromagnetic interference may be an issue, this is essential.

Example Circuit Connection in a DC-Brush Motor Application:

- PWM Control Pin (PWM): This input modulates the motor speed by varying frequency and duty cycle, critical in applications like electric vehicles or conveyor systems.

- Motor Direction Control (DIR): This pin dictates the rotation direction of the motor, essential for applications requiring reversible motion.

- Dead Time Adjustment (DT/DIS): Adjusts the dead time to prevent simultaneous conduction of the MOSFETs, critical for preventing potential short circuits.

- Error Reporting Pins (ER1, ER2): These are used for indicating faults or shutdowns in the driver, vital for diagnostic and safety purposes.

- MOSFET Gate Drive Outputs (GH1, GH2, GL1, GL2): They are crucial for activating the MOSFET gates, thereby controlling the motor.

Design Considerations for Circuits with TLE6281GXUMA1:

- Stable Power Supply: Ensure a consistent power supply within the operating range (7.5V to 60V) to maintain chip functionality.

- Effective Thermal Management: Implement appropriate cooling strategies, considering the high current handling capacity.

- EMC Compliance: Given its low EMC sensitivity, the overall circuit design should maintain this characteristic to avoid interference in sensitive applications.

- Protection Feature Integration: Utilize the chip's built-in protection features to enhance the overall safety and reliability of the application.

In summary, the TLE6281GXUMA1 is a versatile and robust driver IC, ideal for high-current motor control applications in automotive and industrial settings. Its comprehensive feature set and protection capabilities make it an integral component in efficient and reliable motor control solutions.
