Name: TLC555QDRQ1
Brand: Texas Instruments
SKU: TLC555QDRQ1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TLC555QDRQ1

Part No.:: TLC555QDRQ1

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TLC555QDRQ1.pdf

Description:: IC OSC SGL TIMER 2.1MHZ 8-SOIC

In Stock:: 3985

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLC555QDRQ1 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100, LinCMOS™
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
2.1MHz
Voltage-Supply:
2V ~ 15V
Current-Supply:
360 µA
OperatingTemperature:
-40°C ~ 125°C

TLC555QDRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLC555QDRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLC555QDRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLC555QDRQ1 information

Views：

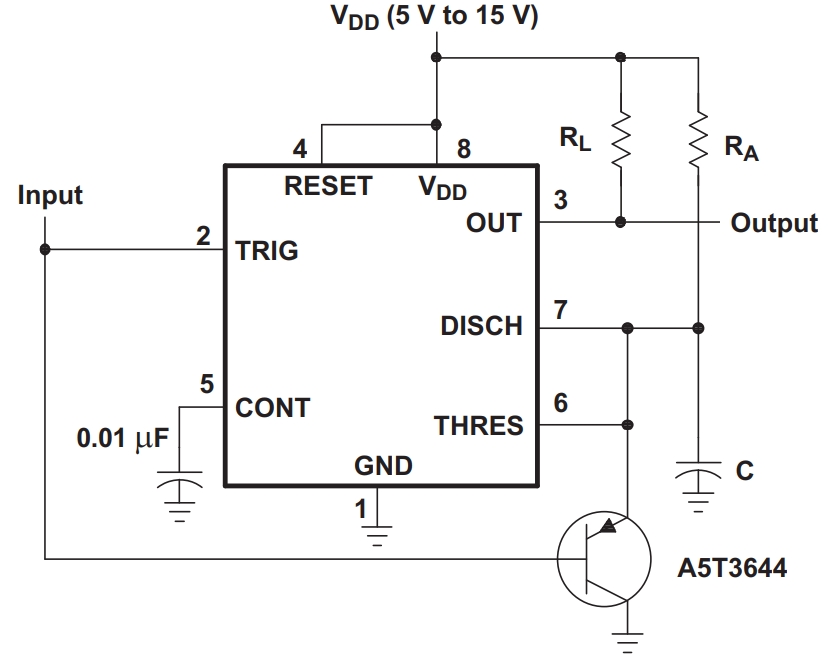

TLC555QDRQ1 Typical application Circuitry

TLC555QDRQ1

The TLC555QDRQ1 is recognized for its role as a CMOS-based timer, offering low power consumption and high reliability, which is suitable for various timing and pulse generation applications.

Practical Applications

One notable application of the TLC555QDRQ1 is in vehicle electronics, specifically for timing mechanisms in automotive sensors.

Characteristic Parameters

- Low Power Requirement: Optimized for minimal energy usage.

- Operational Voltage Range: Functions effectively within a 2V to 15V range.

- Flexible Duty Cycle: Adjustable feature accommodating different timing needs.

- High Output Drive Capacity: Suitable for directly driving various components.

Circuit Design: Automotive Sensor Timer

1. Design Objective:

- Develop a timing circuit using the TLC555QDRQ1 for controlling automotive sensors.

2. Key Components:

- TLC555QDRQ1 as the central timer.

- Resistors and capacitors to set specific timing intervals.

- A power source compatible with the chip's voltage requirements.

3. Detailed Circuit Connection:

- Power Supply Arrangement: Connect TLC555QDRQ1 pin 8 to the positive end of the power source and pin 1 to ground.

- Timing Control Setup: Link resistors to pin 7 (discharge) and pin 6 (threshold), and a capacitor to pin 2 (trigger) to define the timing cycles.

- Sensor Output Control: Use pin 3 to connect to the automotive sensor's control input.

- Reset Function: Integrate a switch to pin 4 for a manual reset option, if needed.

4. Circuit Customization:

- Choose resistor and capacitor values to match the required timing for sensor control.

- Ensure that the power source is within the operational range of the TLC555QDRQ1.

Circuit Design Considerations

- Temperature and Vibration Resilience: Essential for automotive environments.

- Energy Efficiency: Critical for battery-operated vehicle systems.

- Load Compatibility: Confirm that the output matches the sensor's control input requirements.

The TLC555QDRQ1, with its precision timing capabilities and efficient power consumption, is ideally suited for applications in vehicle electronics, like sensor timing. This article provides a comprehensive view of the TLC555QDRQ1's functionalities and a detailed guide for circuit implementation, highlighting its efficacy and adaptability in specialized automotive applications.
