TJA1057T/1Z information

Views：

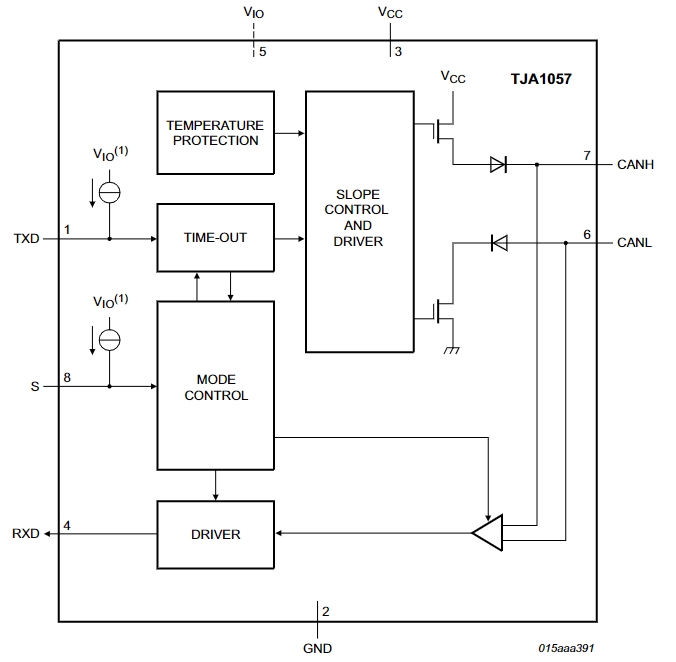

TJA1057T/1Z Typical application Circuitry

TJA1057T 1Z

The TJA1057T/1Z is a high-speed CAN (Controller Area Network) transceiver, designed by NXP Semiconductors, which is part of the Mantis family of high-speed CAN transceivers. These transceivers are intended to provide an interface between the CAN protocol controller and the physical bus in automotive and industrial communication systems. The TJA1057T/1Z is designed to operate at high speeds, up to 1 Mbps.Here are some key features and specifications of the TJA1057T/1Z:

1. Compliance: The TJA1057T/1Z is compliant with ISO 11898-2 and ISO 11898-5 standards, supporting high-speed CAN communication.

2. Operating Voltage: The device typically operates with a 5V supply.

3. Bus Pins (CANH and CANL): The CAN High (CANH) and CAN Low (CANL) pins facilitate differential signaling on the CAN bus, which is essential for communication.

4. TXD and RXD: The Transmit Data (TXD) pin sends data from the CAN controller to the CAN bus, and the Receive Data (RXD) pin passes data from the CAN bus to the CAN controller.

5. Standby Mode: The TJA1057T/1Z includes a standby mode which helps in reducing power consumption when the CAN bus is not active.

6. Silent Mode: In silent mode, the transceiver can receive data but does not influence the bus, which is useful during diagnostics.

7. ESD Protection: The device offers Electrostatic Discharge (ESD) protection.

8. Slope Control: The TJA1057T/1Z has slope control to adjust the rise and fall times of the CAN bus signals, reducing Radio Frequency Interference (RFI).

9. Thermal and Short-Circuit Protection: The device includes protection mechanisms against thermal overloads and short circuits on the bus lines.

10. Bus Failure Detection: It can detect and signal failures on the CAN bus to the microcontroller.

11. Undervoltage Detection: The transceiver can detect undervoltage conditions on its supply lines.

12. Package: The "/1Z" in the part number may indicate a specific packaging variant, but typically the TJA1057T series comes in an SO8 or SO14 package.

13. High-Speed Communication: The TJA1057T/1Z supports high-speed data transmission up to 1 Mbps.

The TJA1057T/1Z is suitable for applications that require reliable and high-speed communication over a CAN network, such as in automotive ECUs, industrial automation systems, and various embedded applications.
