NXP USA Inc. TJA1051T/3/2Z

Part No.:: TJA1051T/3/2Z

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJA1051T/3/2Z.pdf

Description:: IC TRANSCEIVER 1/1 8SO

In Stock:: 3266

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJA1051T/3/2Z Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Type:
Transceiver
Protocol:
CAN
NumberofDrivers/Receivers:
1/1
Duplex:
-
ReceiverHysteresis:
120 mV
DataRate:
5Mbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TJA1051T/3/2Z this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJA1051T/3/2Z price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJA1051T/3/2Z to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJA1051T/3/2Z information

Views：

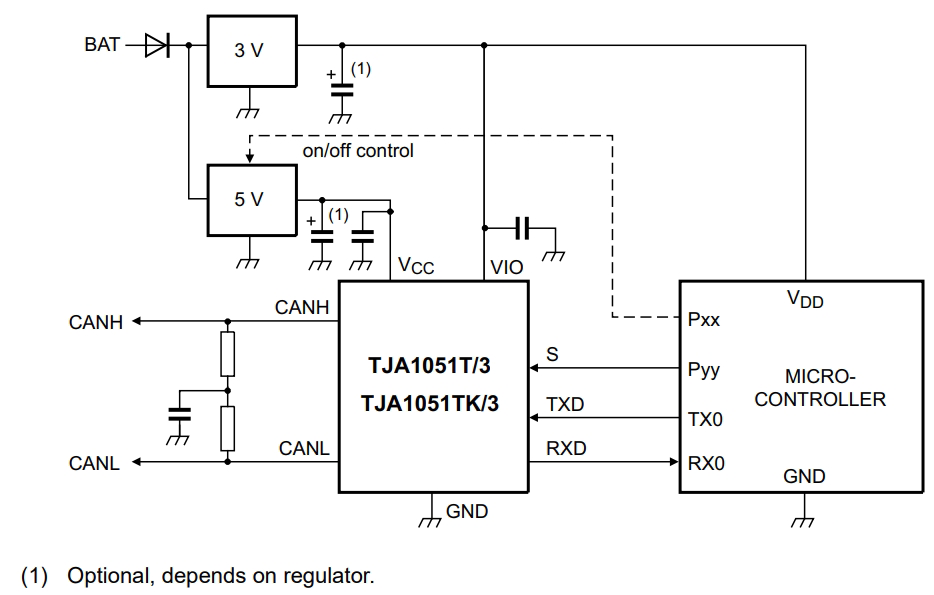

TJA1051T/3/2Z Typical application Circuitry

TJA1051T 3 2Z

The TJA1051T/3/2Z chip serves a specific role in the realm of electronic communication, primarily within Controller Area Network (CAN) systems. This exploration will encompass the chip's functionality, its application in various scenarios, distinctive parameters, a detailed example of a circuit application, and critical considerations for circuit design. Essence of TJA1051T/3/2Z

The TJA1051T/3/2Z is engineered as a high-speed CAN transceiver, adept at translating data between a CAN protocol controller and the physical CAN bus lines.

Deployment of TJA1051T/3/2Z

This chip is pivotal in:

- Automotive Communication Networks: Streamlining data transfer within various car systems.

- Industrial Automation Networks: Ensuring reliable communication in automated machinery.

Hallmarks of TJA1051T/3/2Z

Key attributes of the TJA1051T/3/2Z encompass:

- Rapid Communication: Facilitates CAN operations up to 1 Mbit/s.

- Power Efficiency: Features a low-power mode to conserve energy.

- ESD Defense: Designed with robust electrostatic discharge protection.

Circuit Application: Vehicle Network System

Utilizing the TJA1051T/3/2Z in a vehicle network system entails:

1. Power Supply Integration

- VCC Connection: Link the 5V supply to the VCC pin (Pin 8) of the TJA1051T/3/2Z.

- Grounding Method: Ensure Pin 5 is connected to the ground.

2. CAN Controller Interface

- TXD Coordination: The transmit output from the CAN controller is linked to TXD (Pin 1).

- RXD Connection: RXD (Pin 4) should be connected to the CAN controller's receive input.

3. CAN Bus Connectivity

- Bus Line Association: Attach CANH (Pin 6) and CANL (Pin 7) to the respective bus lines.

4. Signal Clarity Assurance

- Termination Resistors: Utilize resistors at both ends of the CAN bus for signal integrity.

5. Protective Measures

- Voltage Suppression Inclusion: Implement transient voltage suppressors on the CANH and CANL lines.

Design Insights with TJA1051T/3/2Z

When crafting circuits with the TJA1051T/3/2Z, several aspects are crucial:

- Stable Power Source: A consistent 5V supply is essential for the chip's operation.

- CAN Bus Layout Mastery: Proper bus design and termination ensure efficient communication.

- Thermal Management Focus: Attention to heat dissipation is key, particularly in high-speed scenarios.

- Electromagnetic Compatibility: Aim for a design that minimizes electromagnetic interference.

- Environmental Robustness: The circuit should be designed to withstand diverse operating conditions.

In conclusion, the TJA1051T/3/2Z is a standout high-speed CAN transceiver, instrumental in systems like vehicle networks and industrial automation, due to its fast data transmission, energy-saving features, and ESD robustness. Designing circuits with this chip demands a comprehensive approach, considering power management, bus architecture, heat dissipation, EMC, and environmental factors.
