NXP USA Inc. TJA1051T/3,112

Part No.:: TJA1051T/3,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJA1051T/3,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2568

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJA1051T/3,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
120 mV
DataRate:
5Mbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 150°C
MountingType:
Surface Mount

TJA1051T/3,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJA1051T/3,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJA1051T/3,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJA1051T/3,112 information

Views：

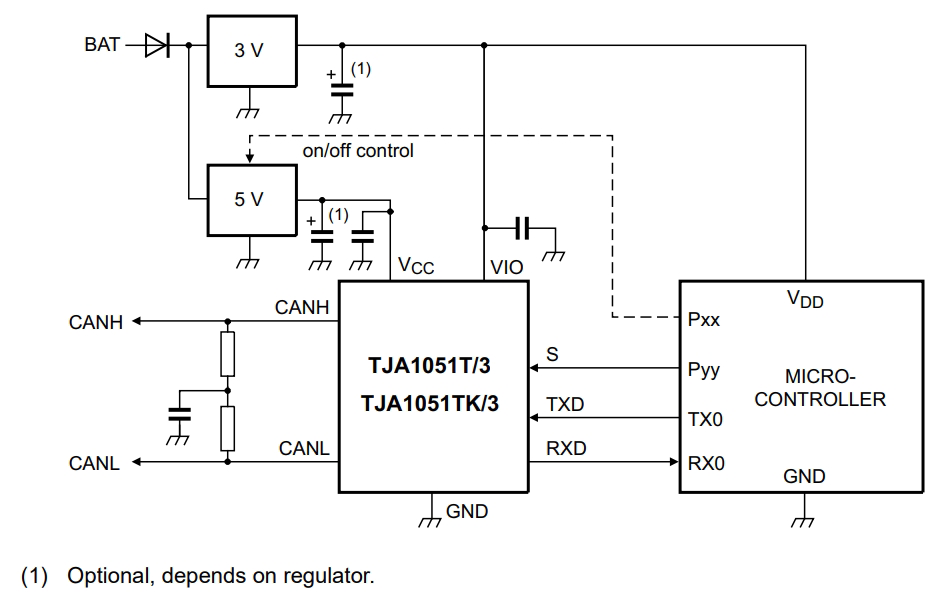

TJA1051T/3,112 Typical application Circuitry

TJA1051T 3,112

The TJA1051T/3,112 is a high-speed CAN transceiver chip, widely employed in Controller Area Network (CAN) systems.

Primary Role of TJA1051T/3,112

The TJA1051T/3,112 serves as an interface in CAN systems, facilitating communication between the network and microcontrollers or devices.

Utilization Scenarios of TJA1051T/3,112

This chip is notably used in:

- Automotive Networking: For communications within vehicle systems.

- Industrial Automation: In automated control systems requiring dependable data transmission.

Key Specifications of TJA1051T/3,112

The TJA1051T/3,112 is characterized by:

- High-Speed Operation: It supports CAN communications up to 1 Mbit/s.

- Energy Efficiency: Features a low-power mode to optimize energy usage.

- Enhanced ESD Protection: Provides robust defense against electrostatic discharges.

Circuit Implementation: Vehicle Control Network

Incorporating the TJA1051T/3,112 in a vehicle control network involves:

1. Power Supply Connectivity

- VCC Configuration: Connect the 5V power supply to the VCC pin (Pin 8) of the TJA1051T/3,112.

- Effective Grounding: Ensure Pin 5 is connected to the ground.

2. CAN Controller Integration

- TXD Linkage: The TXD input (Pin 1) should be connected to the transmit output of the CAN controller.

- RXD Association: Link RXD output (Pin 4) to the CAN controller's receive input.

3. CAN Bus Connection

- Bus Line Attachment: Connect CANH (Pin 6) and CANL (Pin 7) to the respective high and low lines of the CAN bus.

4. Signal Stability Assurance

- Termination Resistors: Employ resistors at both ends of the CAN bus to maintain signal integrity.

5. Circuit Protection Measures

- Voltage Suppression Implementation: Integrate transient voltage suppressors on the CANH and CANL lines for added safety.

Design Considerations with TJA1051T/3,112

Key factors to consider when designing circuits with the TJA1051T/3,112 include:

- Stable Power Source: Ensuring a consistent 5V supply is crucial for the chip's performance.

- CAN Bus Design: Effective communication relies on proper bus layout and termination.

- Thermal Management Strategies: Adequate heat dissipation is essential in high-speed operations.

- EMC Optimization: Minimizing electromagnetic interference is key for reliable communication.

- Environmental Suitability: Designing for resilience in various operating conditions.

Concluding Insights on TJA1051T/3,112

In summary, the TJA1051T/3,112 is a key component in CAN systems, particularly in automotive and industrial settings, offering fast data transfer, power efficiency, and ESD protection. When integrating this chip into circuit designs, considerations around power stability, bus architecture, thermal management, electromagnetic compatibility, and environmental resilience are paramount.
