NXP USA Inc. TJA1050T/N1,518

Part No.:: TJA1050T/N1,518

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJA1050T/N1,518.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 3861

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJA1050T/N1,518 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
70 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 150°C
MountingType:
Surface Mount

TJA1050T/N1,518 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJA1050T/N1,518 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJA1050T/N1,518 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJA1050T/N1,518 information

Views：

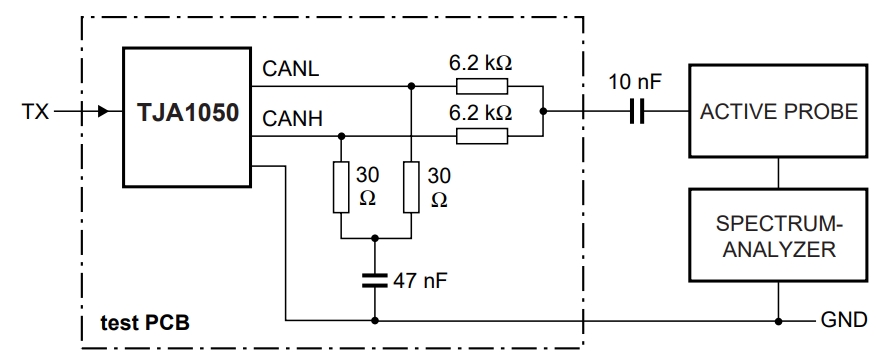

TJA1050T/N1,518 Typical application Circuitry

TJA1050T N1,518

High-speed CAN (Controller Area Network) transceiver TJA1050T/N1,518 is mostly utilized in industrial and automotive communication systems. This segment will detail a specific circuit connection methodology for the TJA1050T/N1,518, highlighting individual pin connections and essential design considerations.

Power Supply Arrangement

1. VCC Connection: Attach the 5V power supply to the VCC pin (Pin 8) of the TJA1050T/N1,518.

2. Grounding the Device: Ensure that Pin 3 of the TJA1050T/N1,518 is connected to the system ground.

CAN Controller Interfacing

1. TXD Configuration: The transmit output of the CAN controller should be connected to the TXD input (Pin 1) of the TJA1050T/N1,518.

2. RXD Connectivity: Link the RXD output (Pin 4) of the TJA1050T/N1,518 to the receive input of the CAN controller.

Connecting TJA1050T/N1,518 to CAN Bus

- Bus Line Integration: Connect the CANH (Pin 6) and CANL (Pin 7) pins of the TJA1050T/N1,518 to the high and low lines of the CAN bus.

Signal Quality Assurance in TJA1050T/N1,518 Circuit

- Implementing Termination Resistors: To maintain signal integrity, place termination resistors at both ends of the CAN bus.

Protective Measures for TJA1050T/N1,518 Circuit

- Voltage Suppression Implementation: Add transient voltage suppressors to the CANH and CANL lines to protect the TJA1050T/N1,518 from voltage spikes.

Design Considerations with TJA1050T/N1,518

When creating circuits with the TJA1050T/N1,518, it's important to consider:

- Stable Power Source: A consistent 5V supply is crucial for the TJA1050T/N1,518's optimal operation.

- CAN Bus Architecture: Proper layout and termination are key for effective data communication.

- Heat Management: Efficient heat dissipation should be considered due to the high-speed nature of the TJA1050T/N1,518.

- EMI Minimization: Design the circuit to reduce electromagnetic interference, ensuring reliable operation.

- Adaptability to Environmental Conditions: The circuit should withstand various environmental conditions, especially in automotive and industrial applications.

In conclusion, the TJA1050T/N1,518 is an integral component in CAN communication systems, known for its fast data transfer capabilities and reliability. Designing circuits with the TJA1050T/N1,518 requires attention to power stability, bus configuration, thermal considerations, EMI, and environmental durability.
