NXP USA Inc. TJA1050T/N1,112

Part No.:: TJA1050T/N1,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJA1050T/N1,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 3791

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJA1050T/N1,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
70 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 150°C
MountingType:
Surface Mount

TJA1050T/N1,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJA1050T/N1,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJA1050T/N1,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJA1050T/N1,112 information

Views：

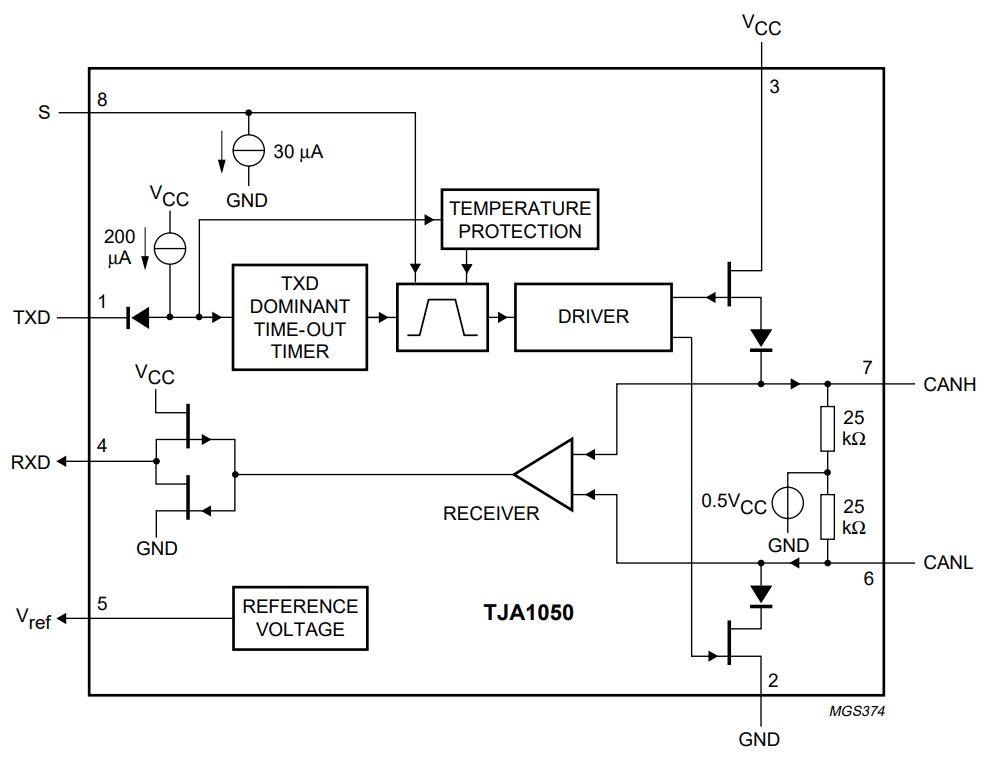

TJA1050T/N1,112 Typical application Circuitry

TJA1050T N1,112

The TJA1050T/N1,112 is a CAN (Controller Area Network) transceiver chip, tailored for high-speed communication in automotive and industrial systems. This detailed guide focuses on constructing a circuit using the TJA1050T/N1,112, addressing each pin's specific connection and pivotal design considerations.

Power Supply Configuration

1. VCC Connection: Attach the VCC pin (Pin 8) of the TJA1050T/N1,112 to a 5V power supply.

2. Grounding: Connect Pin 3 of the TJA1050T/N1,112 to the system ground for stable operation.

Interfacing with CAN Controller Using TJA1050T/N1,112

1. TXD Integration: Link the TXD input (Pin 1) of the TJA1050T/N1,112 to the transmit output of the CAN controller.

2. RXD Connectivity: Attach the RXD output (Pin 4) of the TJA1050T/N1,112 to the receive input of the CAN controller.

CAN Bus Attachment

- Bus Line Connections: Connect the CANH (Pin 6) and CANL (Pin 7) pins of the TJA1050T/N1,112 to the high and low lines of the CAN bus.

Signal Integrity Assurance in TJA1050T/N1,112 Circuit

- Termination Resistors Implementation: To maintain signal quality, install termination resistors at both ends of the CAN bus.

Circuit Protection

- Voltage Suppression Measures: Incorporate transient voltage suppressors on the CANH and CANL lines to safeguard the TJA1050T/N1,112 against voltage spikes.

Design Considerations

When designing circuits utilizing the TJA1050T/N1,112, several critical factors must be considered:

- Consistent Power Supply: A stable 5V power source is vital for the optimal functionality of the TJA1050T/N1,112.

- Proper CAN Bus Layout: Effective data communication relies on the correct configuration and termination of the CAN bus.

- Heat Management: Efficient heat dissipation is essential due to the high-speed operation of the TJA1050T/N1,112.

- EMI Minimization: Reduce electromagnetic interference in the circuit design to ensure dependable and seamless operation.

- Environmental Robustness: The circuit should be capable of operating effectively under various environmental conditions, particularly in automotive and industrial settings.

In conclusion, the TJA1050T/N1,112 is an essential component in high-speed CAN systems, known for its reliability and efficiency in demanding environments. Its data transfer capabilities, combined with robust protection features, make it ideal for challenging applications. Key design considerations when using the TJA1050T/N1,112 include attention to power stability, bus architecture, thermal management, EMI considerations, and environmental adaptability.
