NXP USA Inc. TJA1042T/3/CM,118

Part No.:: TJA1042T/3/CM,118

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJA1042T/3/CM,118.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2924

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJA1042T/3/CM,118 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
120 mV
DataRate:
5Mbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 150°C
MountingType:
Surface Mount

TJA1042T/3/CM,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJA1042T/3/CM,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJA1042T/3/CM,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJA1042T/3/CM,118 information

Views：

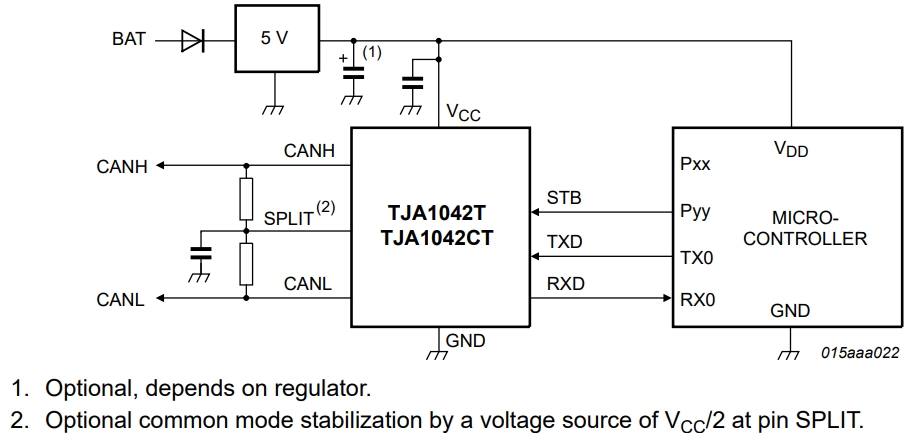

TJA1042T/3/CM,118 Typical application Circuitry
