Texas Instruments TCA9546APWR

Part No.:: TCA9546APWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: TCA9546APWR.pdf

Description:: IC BUS SWITCH 2 X 1:4 16TSSOP

In Stock:: 3260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TCA9546APWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TCA
ProductStatus:
Active
Type:
Bus Switch
Circuit:
2 x 1:4
IndependentCircuits:
1
Current-OutputHighLow:
-
VoltageSupplySource:
Single Supply
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

TCA9546APWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TCA9546APWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TCA9546APWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TCA9546APWR information

Views：

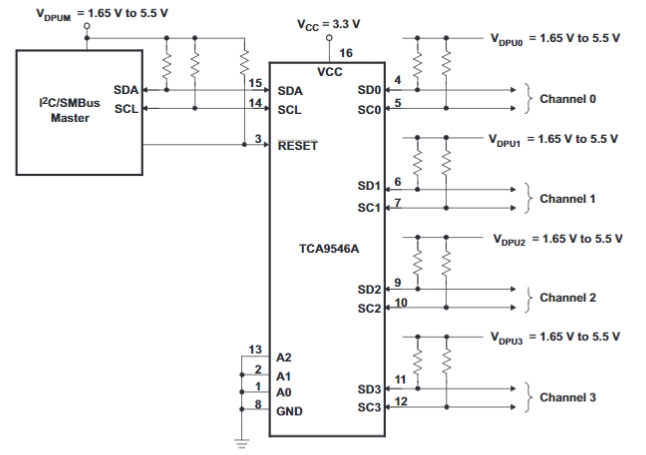

TCA9546APWR Typical application Circuitry

TCA9546APWR

The TCA9546APWR is a 4-channel I²C switch designed by Texas Instruments. It is intended to interface with I²C and similar bus systems to enable communication with multiple I²C devices that may otherwise have address conflicts or require isolation.Here's a detailed description of the TCA9546APWR:

1. 4-Channel I²C Switch: The TCA9546APWR has four bidirectional translating switches that can connect an upstream I²C bus to any combination of downstream I²C buses.

2. I²C Interface: The device communicates via the I²C protocol, allowing it to be controlled by a wide range of microcontrollers and processors.

3. Voltage Levels: The device operates across a wide supply voltage range of 1.65 V to 5.5 V, making it versatile for various applications.

4. Channel Selection: The TCA9546APWR allows the user to select or deselect individual channels via I²C commands. This is useful when multiple devices on the downstream buses have the same I²C address.

5. Isolation: The switch provides isolation, meaning that if there's a fault or low-level activity on one downstream channel, it won't affect the other channels.

6. Active-Low Reset Input: The device has an active-low reset input which, when pulled low, resets the I²C switch and deselects all channels.

7. Package: The TCA9546APWR is available in a TSSOp(Thin Shrink Small Outline Package), which is suitable for applications with space constraints.

8. Applications: This IC can be useful in applications that require interfacing with multiple I²C devices, such as sensor systems, multi-channel data acquisition systems, and other applications involving I²C bus management.

9. Datasheet: For detailed specifications, pin configurations, electrical characteristics, and application notes, it is recommended to consult the datasheet of the TCA9546APWR, which can be obtained from Texas Instruments' website or from authorized distributors.

In summary, the TCA9546APWR is a 4-channel I²C switch that enables communication between a single I²C master and multiple I²C devices on separate buses. It provides isolation and channel selection capabilities, making it an ideal solution for managing complex I²C communication setups.
