What is the Additional Feature ?

Name: TCA9406YZPR
Brand: Texas Instruments
SKU: TCA9406YZPR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TCA9406YZPR

Part No.:: TCA9406YZPR

Manufacturer:: Texas Instruments

Package:: 8-XFBGA, DSBGA

Datasheet:: TCA9406YZPR.pdf

Description:: IC TRNSLTR BIDIRECTIONAL 8DSBGA

In Stock:: 2809

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TCA9406YZPR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TCA
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.65 V ~ 3.6 V
Voltage-VCCB:
2.3 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Open Drain
DataRate:
24Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

TCA9406YZPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TCA9406YZPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TCA9406YZPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TCA9406YZPR information

Views：

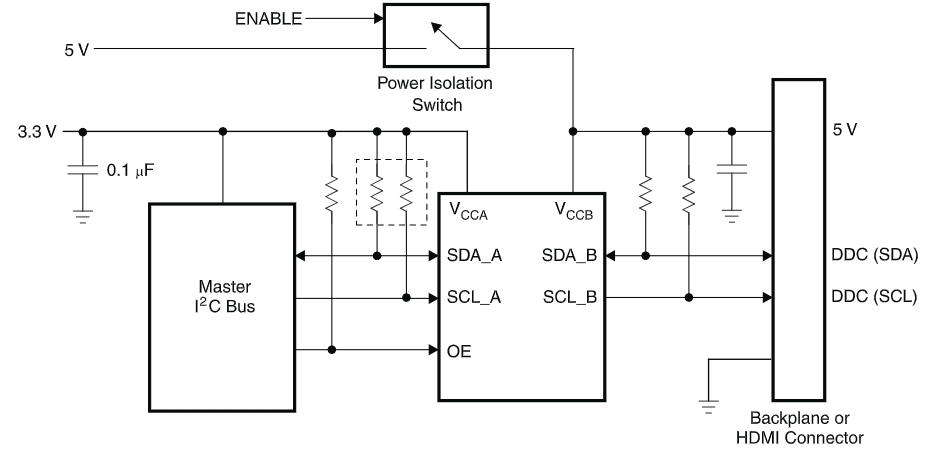

TCA9406YZPR Typical application Circuitry

TCA9406YZPR

The TCA9406YZPR is a 2-bit bidirectional I²C and SMBus voltage level translator. It is designed for applications that require interfacing between systems operating at different voltage levels in an I²C or SMBus network.

Application Scenarios of TCA9406YZPR:

1. Multi-Voltage Systems: Often used in systems where communication is needed between components operating at different voltage levels, such as a 3.3V microcontroller communicating with 5V sensors.

2. I²C/SMBus Devices: Suitable for interfacing I²C/SMBus devices that operate at different voltages, ensuring data integrity and signal level matching.

Key Features:

1. Voltage Level Translation: Translates signals between two different voltage domains, protecting low-voltage devices from higher voltage levels.

2. Bidirectional Communication: Supports bidirectional data transfer, making it suitable for I²C or SMBus applications.

3. High-Speed Operation: Capable of operating at high data rates, suitable for fast communication requirements.

Example Circuit Design - Interfacing 3.3V Microcontroller with 5V Sensors Using TCA9406YZPR:

Detailed Circuit Connection Strategy:

1. Power Connections:

- Pin 1 (VCCA): Connect to the lower voltage domain (e.g., 3.3V from the microcontroller).

- Pin 4 (VCCB): Connect to the higher voltage domain (e.g., 5V from the sensors).

- Pin 3 (GND): Connect to the system ground, ensuring a common reference point for both voltage domains.

2. Data Line Connections:

- Pin 5 (A1) and Pin 6 (A2): Connect these pins to the SDA and SCL lines of the microcontroller, respectively.

- Pin 8 (B1) and Pin 7 (B2): Connect these pins to the SDA and SCL lines of the 5V sensors, respectively.

3. Pull-up Resistors:

- Connect pull-up resistors to the SDA and SCL lines on both sides (A1/A2 and B1/B2). The value of the resistors should be chosen based on the specific requirements of the I²C/SMBus specifications and the capacitance of the bus.

4. Decoupling Capacitors:

- Place decoupling capacitors close to Pin 1 (VCCA) and Pin 4 (VCCB) to stabilize the voltage levels and filter out noise.

Circuit Design Considerations:

1. Pull-up Resistor Values: Ensure that the pull-up resistors are correctly calculated to provide enough current for the logic levels but not so much as to slow down the transition times.

2. Capacitive Loading: Consider the capacitive loading on the bus, as it affects the maximum operational speed and the choice of pull-up resistors.

3. Power Supply Stability: Ensure that both VCCA and VCCB are stable and well-regulated to maintain proper voltage level translation.

4. Signal Integrity: Minimize noise and ensure clean signal transitions by proper PCB layout, especially in high-speed operations.

In conclusion, the TCA9406YZPR is an effective solution for interfacing devices operating at different voltage levels in I²C or SMBus networks. Designing circuits with the TCA9406YZPR involves careful consideration of pull-up resistor values, capacitive loading, power supply stability, and signal integrity to ensure reliable and efficient communication.

TCA9406YZPR FAQ

1. How to order TCA9406YZPR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that TCA9406YZPR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the TCA9406YZPR. All suppliers must pass our qualification reviews before they can publish their products including TCA9406YZPR on icwhale.com; we pay more attention to the channels and quality of TCA9406YZPR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the TCA9406YZPR price and inventory displayed accurate?

The price and inventory of TCA9406YZPR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of TCA9406YZPR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the TCA9406YZPR we delivered, we will accept the replacement or return of the TCA9406YZPR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of TCA9406YZPR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
