Texas Instruments TAS6424QDKQRQ1

Part No.:: TAS6424QDKQRQ1

Manufacturer:: Texas Instruments

Package:: 56-HSSOP

Datasheet:: TAS6424QDKQRQ1.pdf

Description:: IC AMP CLASS D QUAD 150W 56HSSOP

In Stock:: 3901

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TAS6424QDKQRQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Type:
Class D
OutputType:
4-Channel (Quad)
MaxOutputPowerxChannels@Load:
150W x 4 @ 2Ohm
Voltage-Supply:
4.5V ~ 26.4V
Features:
Depop, Short-Circuit and Thermal Protection
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C (TA)

TAS6424QDKQRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TAS6424QDKQRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TAS6424QDKQRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TAS6424QDKQRQ1 information

Views：

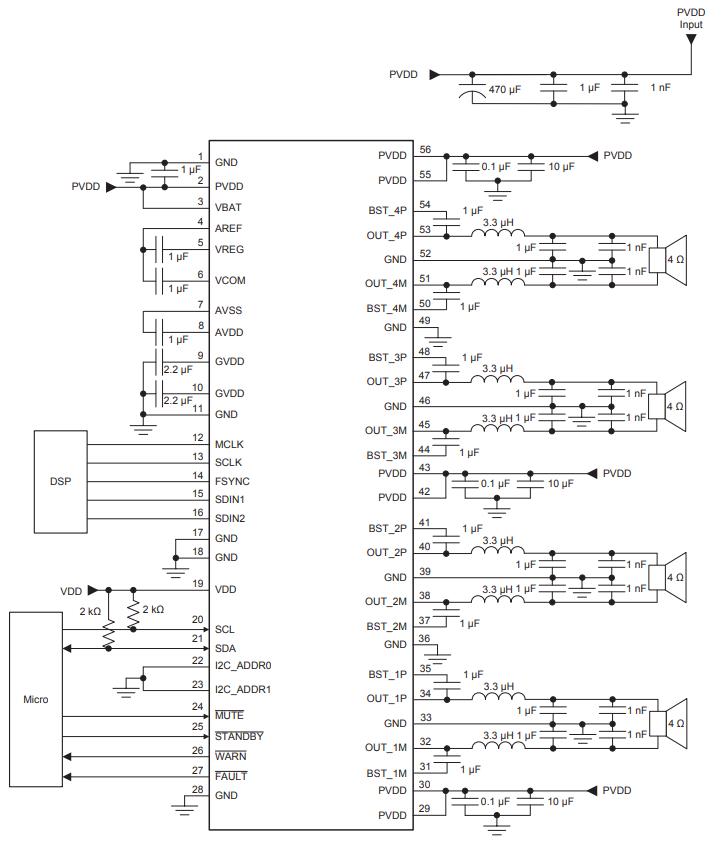

TAS6424QDKQRQ1 Typical application Circuitry

TAS6424QDKQRQ1

The TAS6424QDKQRQ1 is a high-performance, four-channel digital input Class-D audio amplifier. Manufactured by Texas Instruments, this automotive audio amplifier is specifically designed for automotive applications.

Key Features and Specifications of TAS6424QDKQRQ1:

- Amplification: The TAS6424QDKQRQ1 is a fantastic option for surround sound systems in-vehicle applications because it supports four distinct audio channels.

- Power Output: The chip can deliver up to 27 W into a 4-Ω speaker at 14.4 V, making it suitable for robust and powerful audio applications.

- Efficiency: Leveraging Class-D topology, the TAS6424QDKQRQ1 boasts high efficiency, translating to reduced heat generation and minimal power usage.

- Diagnostic Features: This chip has built-in diagnostic features, such as DC and AC load diagnostics, short-circuit protection, and temperature warnings, enhancing the safety and reliability of the overall system.

- Operating Voltage: The TAS6424QDKQRQ1 operates in the voltage range of 4.5 V to 18 V, providing flexibility for various automotive applications.

The TAS6424QDKQRQ1 can be used in a variety of automotive audio applications, such as car infotainment systems and active sound design. In this context, let's consider an application of implementing the TAS6424QDKQRQ1 in a car infotainment system.

Implementing TAS6424QDKQRQ1 in a Car Infotainment System:

1. Power Supply Pins (PVDD, AVDD): These pins should be connected to the corresponding power supply as per the voltage requirements outlined in the datasheet.

- Power Supply Filtering: Connect decoupling capacitors close to these pins to filter out noise for a clean power supply.

2. Audio Input Pins (IN1, IN2, IN3, IN4): These pins serve as the audio input for each of the four channels. Connect the audio source to each of these pins as per your application requirement.

3. Audio Output Pins (OUT1, OUT2, OUT3, OUT4): These pins provide the amplified audio output for each channel. Connect each output pin to the corresponding speaker in the system.

- Speaker Connections: Correct speaker impedance matching is crucial for optimal audio output.

4. Other Pins: Other pins, including the I2C interface pins (SDA, SCL), diagnostics and fault pins, and mute pin (MUTE), should be connected as per the specific requirements of your application and based on the guidance provided in the datasheet.

Design Considerations with the TAS6424QDKQRQ1:

- Thermal Management: With substantial power output, the TAS6424QDKQRQ1 can generate significant heat. Proper heat management techniques, such as utilizing a suitable heatsink or implementing efficient PCB design with thermal vias, are essential.

- Power Supply: Ensuring a stable and clean power supply within the recommended range is crucial for the reliable operation and longevity of the TAS6424QDKQRQ1.

- Protection Measures: Implementing protective measures against potential issues such as overvoltage, overtemperature, and Undervoltage is important in designing the system.

- PCB Layout: The PCB layout plays a significant role in the overall performance of the audio system. Careful routing of traces, proper grounding, and decoupling strategies are key to minimizing noise and achieving good audio performance.

In conclusion, the TAS6424QDKQRQ1 offers a reliable and efficient solution for automotive audio applications requiring multi-channel high-quality audio output. When designing circuits with the TAS6424QDKQRQ1, it is essential to pay heed to factors such as thermal management, power supply quality, protection measures, and a carefully planned PCB layout to extract the best performance.
