ON Semiconductor SZMM5Z5V1T1G

Part No.:: SZMM5Z5V1T1G

Manufacturer:: ON Semiconductor

Package:: SC-79, SOD-523

Datasheet:: SZMM5Z5V1T1G.pdf

Description:: DIODE ZENER 5.1V 500MW SOD523

In Stock:: 3232

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SZMM5Z5V1T1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101
RoHS:
RoHS
Tolerance:
±5.9%
Part Status:
Active
Power - Max:
500 mW
Mounting Type:
Surface Mount
Impedance (Max) (Zzt):
60 Ohms
Operating Temperature:
-65°C ~ 150°C
Voltage - Zener (Nom) (Vz):
5.1 V
Current - Reverse Leakage @ Vr:
2 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If:
900 mV @ 10 mA

SZMM5Z5V1T1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SZMM5Z5V1T1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SZMM5Z5V1T1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SZMM5Z5V1T1G information

Views：

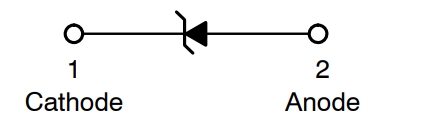

SZMM5Z5V1T1G Typical application Circuitry

SZMM5Z5V1T1G

The SZMM5Z5V1T1G is a Zener diode designed for voltage regulation and protection purposes in electronic circuits. This semiconductor device permits current to flow in both directions, just like a regular diode, provided the breakdown voltage, often referred to as the Zener voltage, is greater than the voltage.

Application Scenarios of SZMM5Z5V1T1G:

1. Voltage Regulation: Employed in power supplies to provide a stable reference voltage.

2. Overvoltage Protection: Used across sensitive components to protect them from voltage spikes.

3. Waveform Clipping: Utilized in signal processing to clip or shape the waveform to desired voltage levels.

Key Features:

1. Zener Voltage: The SZMM5Z5V1T1G "5V1" indicates a Zener voltage of 5.1V, the voltage at which the diode will conduct in the reverse direction.

2. Power Dissipation: It can safely dissipate a certain amount of power without damage, typically indicated in the datasheet.

3. Small Package: The "T1G" denotes the package type, which is compact and suitable for high-density circuit boards.

Example Circuit Design - Overvoltage Protection for a Microcontroller Using SZMM5Z5V1T1G:

Detailed Circuit Connection Guide:

1. Overvoltage Protection:

- Voltage Shield (Across Sensitive Lines): Connect SZMM5Z5V1T1G across the power supply line (VCC) and ground (GND) of the microcontroller. In this configuration, SZMM5Z5V1T1G acts as a safeguard, clamping the voltage to 5.1V and protecting the microcontroller from potential overvoltage conditions.

2. Current Limiting Resistor:

- Guardian Resistor (Series with SZMM5Z5V1T1G): Place a resistor in series with SZMM5Z5V1T1G to limit the current through the diode during the overvoltage condition. The value of the resistor depends on the maximum current you expect to flow through the Zener diode.

3. Physical Layout:

- Close Proximity (PCB Layout): Position SZMM5Z5V1T1G as close as possible to the protected component to ensure rapid response to voltage spikes. Short leads or PCB traces are essential to minimize inductance and ensure the effectiveness of the protection.

Circuit Design Considerations:

1. Zener Voltage Selection: Ensure the Zener voltage of SZMM5Z5V1T1G matches the voltage requirement for protection.

2. Power Dissipation: Consider the power dissipation rating of SZMM5Z5V1T1G and ensure it is not exceeded. Calculate the maximum current and voltage across the diode to ensure it's within safe limits.

3. Thermal Considerations: Be mindful of the heat generated due to power dissipation and ensure adequate heat sinking or air flow if necessary.

4. Proper Biasing: Ensure that SZMM5Z5V1T1G is biased correctly to operate in the Zener breakdown region when required.

In conclusion, the SZMM5Z5V1T1G Zener diode is a crucial component for voltage regulation and overvoltage protection in electronic circuits. When designing circuits with the SZMM5Z5V1T1G, it's essential to focus on Zener voltage selection, power dissipation, thermal management, and proper biasing to ensure optimal performance and reliability. Proper application of SZMM5Z5V1T1G can significantly enhance the protection and stability of electronic devices.
