STMicroelectronics STP16CP05XTTR

Part No.:: STP16CP05XTTR

Manufacturer:: STMicroelectronics

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: STP16CP05XTTR.pdf

Description:: IC LED DRVR LINEAR 100MA 24TSSOP

In Stock:: 3934

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STP16CP05XTTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Linear
Topology:
Shift Register
InternalSwitch(s):
Yes
NumberofOutputs:
16
Voltage-Supply(Min):
3V
Voltage-Supply(Max):
5.5V
Voltage-Output:
20V
Current-Output/Channel:
100mA
Frequency:
30MHz
Dimming:
-
Applications:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

STP16CP05XTTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STP16CP05XTTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STP16CP05XTTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STP16CP05XTTR information

Views：

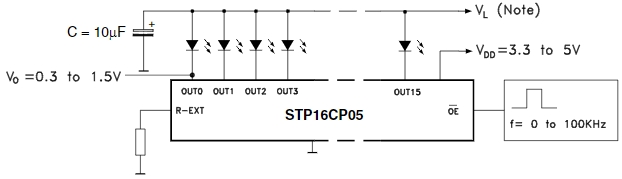

STP16CP05XTTR Typical application Circuitry

STP16CP05XTTR

The STP16CP05XTTR is an integrated circuit manufactured by STMicroelectronics. It belongs to a family of constant current 16-bit LED sink drivers. Here's a description of its main characteristics and features:

1. 16-Bit Shift Register: At its core, the device is essentially a 16-bit shift register, which means it can accept a 16-bit serial input and can convert it to a parallel output.

2. Constant Current LED Sink Drivers: This IC can drive LEDs with a constant current, ensuring consistent brightness. This feature is beneficial for applications where uniform light emission is crucial.

3. Specifications:

- Output Current: Typically, the device can be programmed to provide a constant current to each LED ranging from 5 mA upto 100 mA.

- Voltage Range: It generally supports a wide supply voltage range, often from 3 V upto 5.5 V or even more.

- Output Voltage: Upto 20V or even more, allowing the driving of blue and white LEDs that have higher forward voltage requirements.

4. Cascade Feature: Multiple STP16CP05XTTR devices can be cascaded, meaning the output of one can be fed as the input to the next. This feature allows the control of more than 16 LEDs with a single serial input.

5. Thermal Shutdown: This feature ensures that the device will turn itself off if it becomes too hot, preventing potential damage due to overheating.

6. Applications: Given its ability to drive LEDs with a constant current, the STP16CP05XTTR is suitable for LED displays, LED signs, and other applications where arrays of LEDs need to be driven with uniform brightness.

7. Package: The "XTTR" suffix in STP16CP05XTTR typically refers to a specific type of packaging, but for the exact details on the package type, dimensions, and other specifics, you'd need to refer to the datasheet.

8. Datasheet: As always, for more detailed information such as pin configuration, electrical characteristics, timing diagrams, and application circuits, it's best to consult the datasheet of STP16CP05XTTR. This can be found on the STMicroelectronics website or from electronic component distributors.

When designing circuits with this IC, it's essential to ensure that the constant current setting matches the requirements of the LEDs being used and that adequate provisions are made for heat dissipation if many LEDs are being driven simultaneously.
