STMicroelectronics STM8S003F3P6

The STM8S003F3P6 is a microcontroller from STMicroelectronics, offering a powerful and versatile platform for hobbyists, engineers, and developers alike. Whether you're interested in building simple embedded systems or tackling more complex projects, this chip provides a robust solution for a variety of applications. In this article, we'll explore its pinout, development boards, and how you can use it in conjunction with Arduino for exciting projects.

Table of Contents

• Overview of the STM8S003F3P6 Microcontroller
• Understanding the Pinout of STM8S003F3P6
• STM8S003F3P6 Development Boards
• Using STM8S003F3P6 with Arduino
• Example Projects with STM8S003F3P6
• STM8S003F3P6 Package and Footprint
• Sum up
• Frequently Asked Questions

Overview of the STM8S003F3P6 Microcontroller

The STM8S003F3P6 is part of the STM8 family of microcontrollers, designed to be both cost-effective and powerful. Featuring 8-bit architecture, it comes with 32KB of Flash memory, 2KB of RAM, and an integrated 16-bit timer, among other features. Its versatile I/O and peripheral set make it ideal for a range of applications, from basic DIY projects to industrial solutions.

Key Features of STM8S003F3P6

Flash memory: 32KB

RAM: 2KB

Clock speed: Up to 16 MHz

I/O Pins: 16

Timers: 16-bit

Communication interfaces: I2C, SPI, UART

Operating voltage: 2.95V to 5.5V

Understanding the Pinout of STM8S003F3P6

The pinout of the STM8S003F3P6 is crucial for designing circuits that make use of its various features. The microcontroller provides 16 I/O pins, each serving multiple functions, depending on the application.

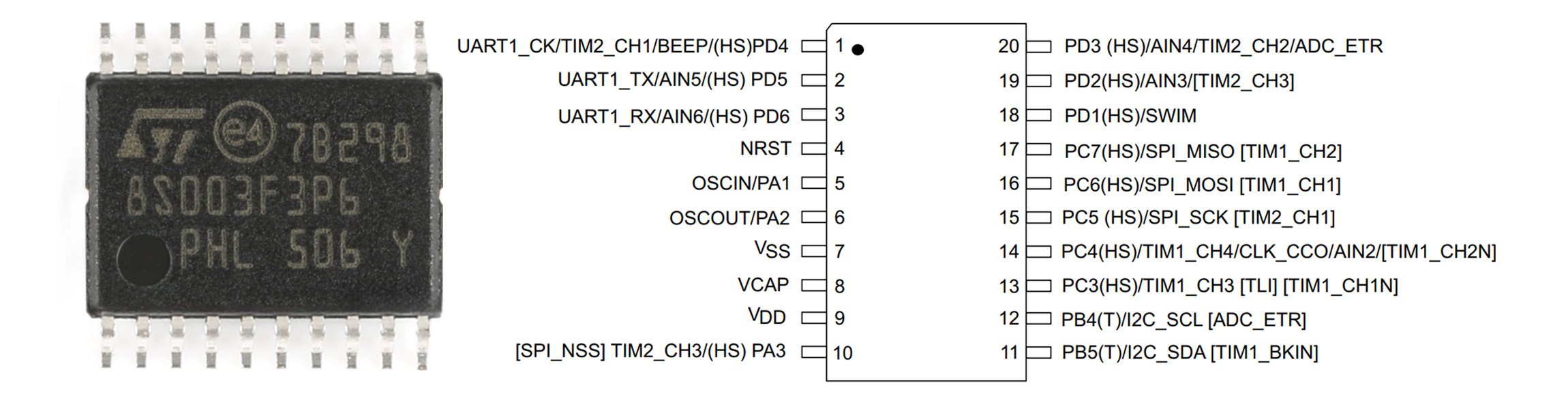

STM8S003F3P6 Pinout

Here's a brief overview of the pinout of the STM8S003F3P6:

STM8S003F3P6 Pinout

Referencing the datasheet for detailed information on each pin's alternate functions and electrical specifications is essential for proper implementation. The datasheet includes a complete schematic of the chip's connections and configurations, which can guide you in the correct usage of each pin.

STM8S003F3P6 Development Boards

Development boards are a practical way to get started with microcontrollers. For the STM8S003F3P6, there are several options available that simplify the development process.

STM8S003F3P6 Development Board

A development board for the STM8S003F3P6 will typically include the microcontroller, some basic peripheral components (e.g., capacitors, resistors), and access to the I/O pins for easy prototyping. One of the popular boards available for the STM8S003F3P6 is the Blue Pill, an inexpensive yet feature-rich development board.

Microcontroller: STM8S003F3P6

Onboard LEDs: For simple output indication

Programming Interface: USB to serial connection for ease of programming

Expansion: Several I/O headers to facilitate easy connections to sensors, actuators, or other hardware

The price of STM8S003F3P6 development boards typically ranges from $5 to $10, depending on the supplier and additional features like onboard debugging support.

Using STM8S003F3P6 with Arduino

STM8S003F3P6 Arduino

One of the standout features of the STM8S003F3P6 is that it can be integrated into Arduino-based projects. While Arduino is typically associated with AVR-based microcontrollers, STM8 microcontrollers, including the STM8S003F3P6, can also be programmed through the Arduino IDE with the proper configuration.

Programming STM8S003F3P6 via Arduino IDE

To use the STM8S003F3P6 with Arduino, you'll need to install a special core that supports STM8 chips. Several communities have made this integration possible, and you can find guides on how to configure the Arduino IDE to work with the STM8 family.

Once you have set up the environment, programming the STM8S003F3P6 is straightforward, similar to other Arduino-based microcontrollers. You can use the familiar Arduino syntax, libraries, and tools for your projects. The board will communicate with the IDE via a USB to Serial adapter, which will enable you to upload the bootloader to the STM8S003F3P6 and start programming.

Benefits of Using STM8S003F3P6 with Arduino

Low-cost development: STM8S003F3P6-based boards are affordable, providing a low-entry barrier for hobbyists.

Rich ecosystem: By leveraging Arduino libraries and tools, you can take advantage of the vast number of available libraries and community resources.

Enhanced peripherals: STM8 microcontrollers come with built-in communication protocols like SPI, I2C, and UART, allowing you to easily interface with other components or devices.

Example Projects with STM8S003F3P6

Once you're comfortable with the pinout and development board setup, it's time to get hands-on with projects. Below are some project ideas to get you started with the STM8S003F3P6.

1. Simple LED Blinking

The classic "Hello World" of embedded systems is blinking an LED. This basic project helps you familiarize yourself with I/O operations, programming, and debugging. You can control the LED with simple digital writes to a GPIO pin.

2. Temperature Sensor Interface

Using an analog temperature sensor like the LM35, you can interface it with the STM8S003F3P6. The sensor will output a voltage that corresponds to the temperature, and you can read the analog signal via the ADC (Analog-to-Digital Converter) of the STM8. This project teaches you analog signal processing and sensor integration.

3. UART Communication

Set up UART communication between the STM8S003F3P6 and another device, such as a PC or another microcontroller. This is a great way to learn about serial communication and its implementation on STM8.

4. I2C LCD Display

Use an I2C LCD to display data from the STM8S003F3P6. This project introduces you to I2C communication and how to use an external peripheral like an LCD with minimal wiring.

STM8S003F3P6 Package and Footprint

Package Dimensions:

STM8S003F3P6 package

Package Type: LQFP32 (32 pins, quad-sided)

Body Size (E): 7.0 mm

Pin-to-Pin Distance (D, E1): 9.0 mm

Lead Pitch (e): 0.8 mm

Lead Width (b): 0.3 mm

Lead Length (L): 0.45–0.75 mm

Height (A): 1.4 mm (max)

Standoff Height (A1): 0.05–0.15 mm

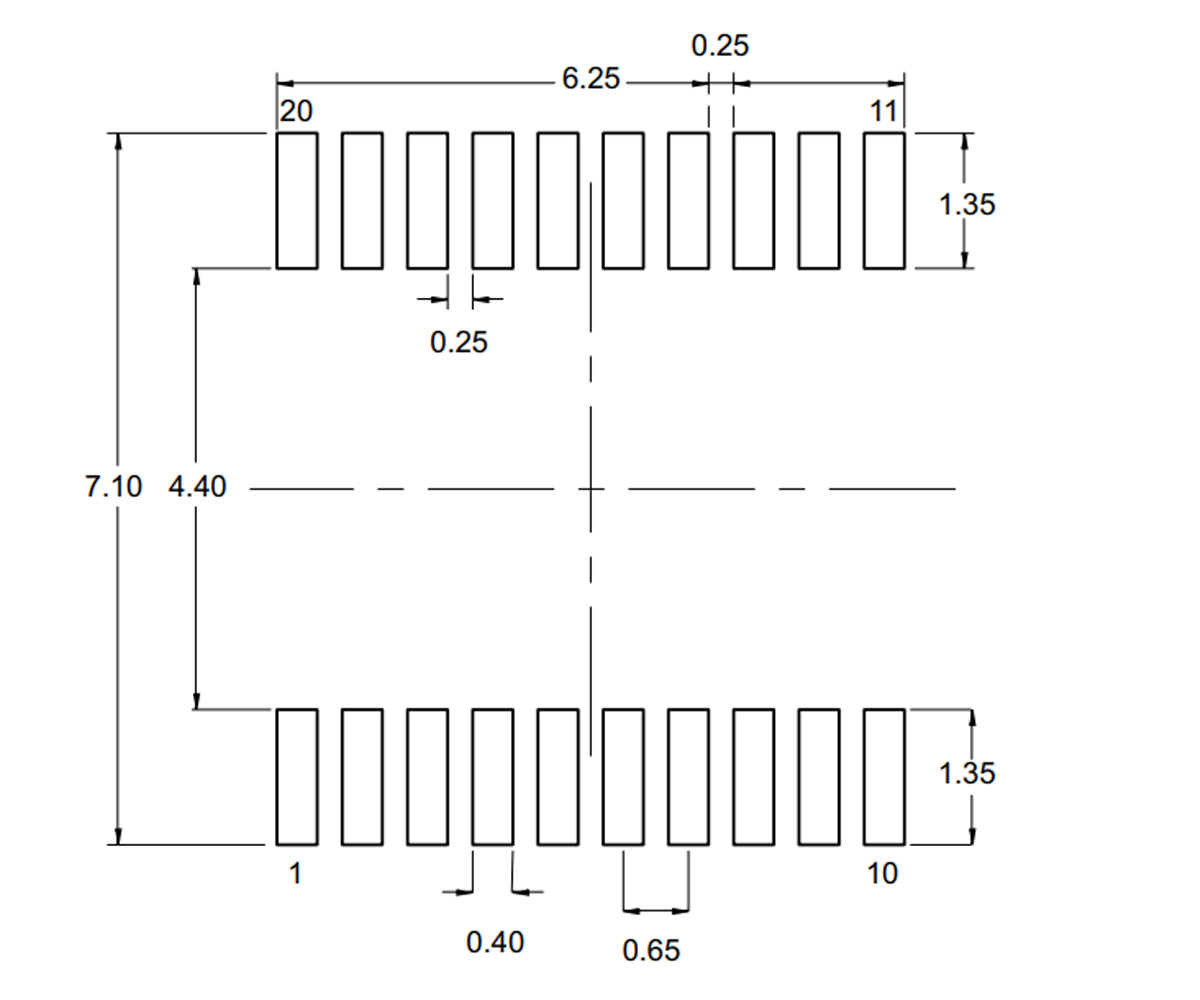

Footprint Dimensions:

STM8S003F3P6 footprint

Pad Size: 0.40 mm x 1.35 mm

Pad Pitch: 0.65 mm

Horizontal Pin-to-Pin: 6.25 mm

Vertical Pin-to-Pin: 7.10 mm

Clearance Between Pads: 0.25 mm

Sum up

The STM8S003F3P6 is a versatile microcontroller with a range of features that make it suitable for numerous embedded applications. Understanding its pinout, selecting a suitable development board, and integrating it with the Arduino IDE open up a wide array of project possibilities. Whether you're a beginner or an experienced engineer, the STM8S003F3P6 provides an affordable and effective platform for experimenting with embedded systems. Be sure to consult the reference manual and datasheet for detailed specifications to guide your designs and ensure success in your development projects.

Frequently Asked Questions

What debugging features does STM8S003F3P6 support?

It supports SWIM debugging interface for program debugging and code burning.

Does the STM8S003F3P6 support low power modes?

Yes, the STM8S003F3P6 has multiple low-power modes (e.g., standby mode and sleep mode) for battery-driven applications.

What is the ADC resolution of the STM8S003F3P6?

It has a 10-bit ADC resolution.

What development tools does STM8S003F3P6 support?

In addition to the Arduino IDE, the STM8S003F3P6 also supports STMicroelectronics' STVD and IAR Embedded Workbench.

Can the STM8S003F3P6 be used for USB projects?

No. The STM8S003F3P6 does not support USB directly, but it can communicate with USB devices through an external USB-to-serial adapter.

What is the Flash programming speed of STM8S003F3P6?

The Flash programming speed is up to 20KB/sec.

What is the maximum clock frequency of STM8S003F3P6?

The STM8S003F3P6 supports a maximum clock frequency of 16 MHz.
