STMicroelectronics STM32G070CBT6

The STM32G070CBT6 is a versatile microcontroller from STMicroelectronics, widely used in embedded systems for its robust performance and low power consumption. This article explores its pinout, available development boards, its compatibility with Arduino projects, and essential resources like the datasheet and reference manual.

Overview of STM32G070CBT6

The STM32G070CBT6 belongs to the STM32G0 series, known for its balance between performance and cost-effectiveness. It features a 32-bit ARM Cortex-M0+ core running up to 64 MHz, integrated Flash memory, SRAM, and a range of peripherals tailored for industrial and consumer applications.

Key Specifications

Core: ARM Cortex-M0+

Operating Frequency: 64 MHz

Flash Memory: 128 KB

SRAM: 36 KB

GPIOs: 51

Operating Voltage: 1.8V to 3.6V

Temperature Range: -40°C to +85°C

Package: LQFP-48

For more details, refer to the official datasheet, which provides a comprehensive overview of the microcontroller's capabilities.

STM32G070CBT6 Pinout

The pinout of the STM32G070CBT6 is designed for flexibility, offering various functions for each pin. With 51 GPIOs, it supports analog inputs, timers, I2C, SPI, USART, and advanced control peripherals like DMA and ADC.

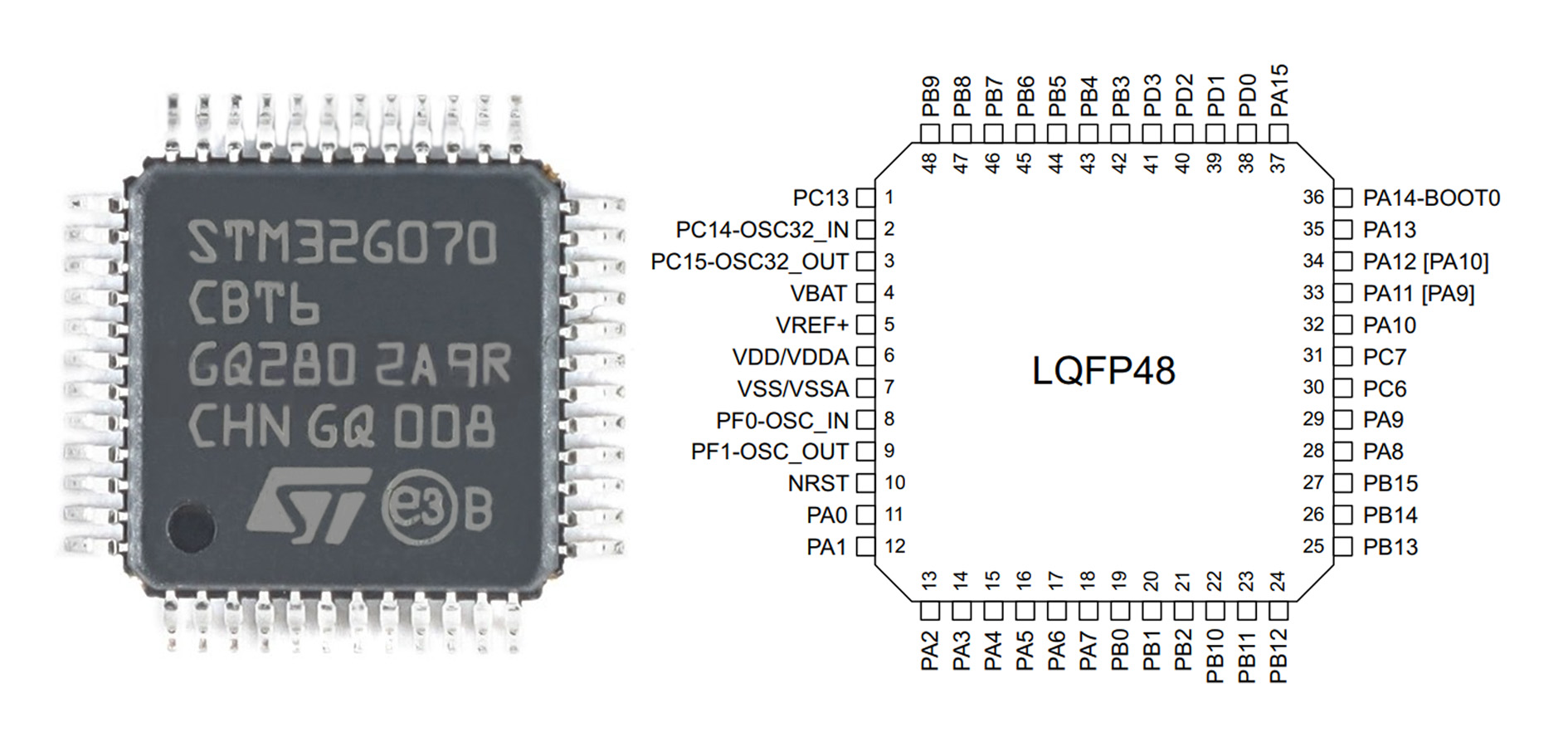

Pinout

STM32G070CBT6 Pinout

To fully utilize the pin functionalities, consult the schematic of your project or the reference manual for the STM32G070CBT6.

Circuit Design Considerations

When designing a circuit with the STM32G070CBT6, consider:

Decoupling capacitors near power pins for stability.

Proper grounding to avoid noise.

Use of pull-up or pull-down resistors for GPIOs as required.

These considerations ensure optimal performance and longevity for your embedded system.

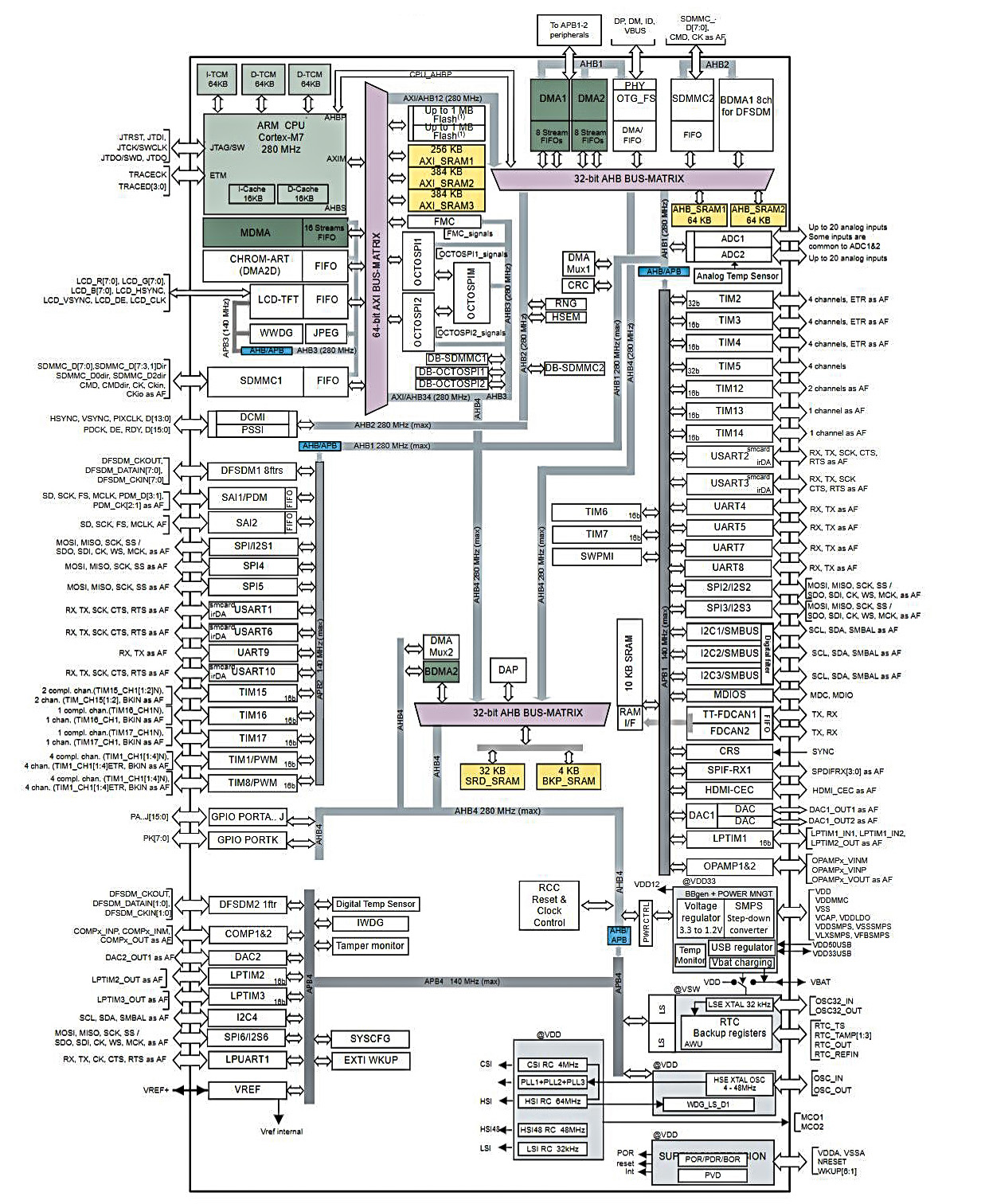

STM32H743IIT6 Typical Application Circuitry

STM32H743IIT6 Typical application Circuitry

The STM32H743IIT6 is a high-performance microcontroller with an ARM Cortex-M7 core running at 480 MHz. Its key features include:

Memory System:

2 MB Flash, TCM, and AXI SRAM.

External memory interfaces (SDRAM, Quad-SPI, NOR/NAND).

Connectivity:

Multiple USART, SPI, I2C, and CAN interfaces.

Ethernet MAC, USB OTG (Full/High-Speed).

SDMMC for SD/eMMC storage.

Digital and Analog Peripherals:

ADC (12-bit, up to 20 inputs), DAC, and OPAMP.

DFSDM for audio processing.

GPIO with alternate functions.

Timers:

General-purpose and advanced timers.

PWM, LPTIM, and RTC for real-time control.

Graphics and Multimedia:

CHROM-ART Accelerator for 2D graphics.

JPEG codec and TFT-LCD controller.

Power Management:

Integrated voltage regulators, BOR, and POR.

VBAT for RTC backup.

Security:

TRNG, tamper detection, and watchdogs.

Development Boards Featuring STM32G070CBT6

Using a development board is the easiest way to get started with STM32G070CBT6. Popular options include ST's Nucleo boards and third-party alternatives.

Nucleo-G070RB

This is an official development board designed for STM32G0 microcontrollers. It features a high-quality build, onboard debugger, and Arduino headers for easy prototyping. The Nucleo-G070RB is ideal for beginners and advanced users alike.

Custom PCBs

For those looking to design custom hardware, ensure your PCB design follows the proper footprint specifications for the LQFP-48 package. Tools like KiCAD or Altium Designer can simplify the process.

Comparing STM32G070CBT6 with the Blue Pill

The blue pill, a popular STM32 development board featuring the STM32F103C8T6 microcontroller, has long been a favorite among hobbyists. While the blue pill offers a cost-effective solution for general-purpose projects, the STM32G070CBT6 provides more advanced features, lower power consumption, and industrial-grade reliability. Choosing between the two depends on project requirements.

Arduino Compatibility and STM32G070CBT6

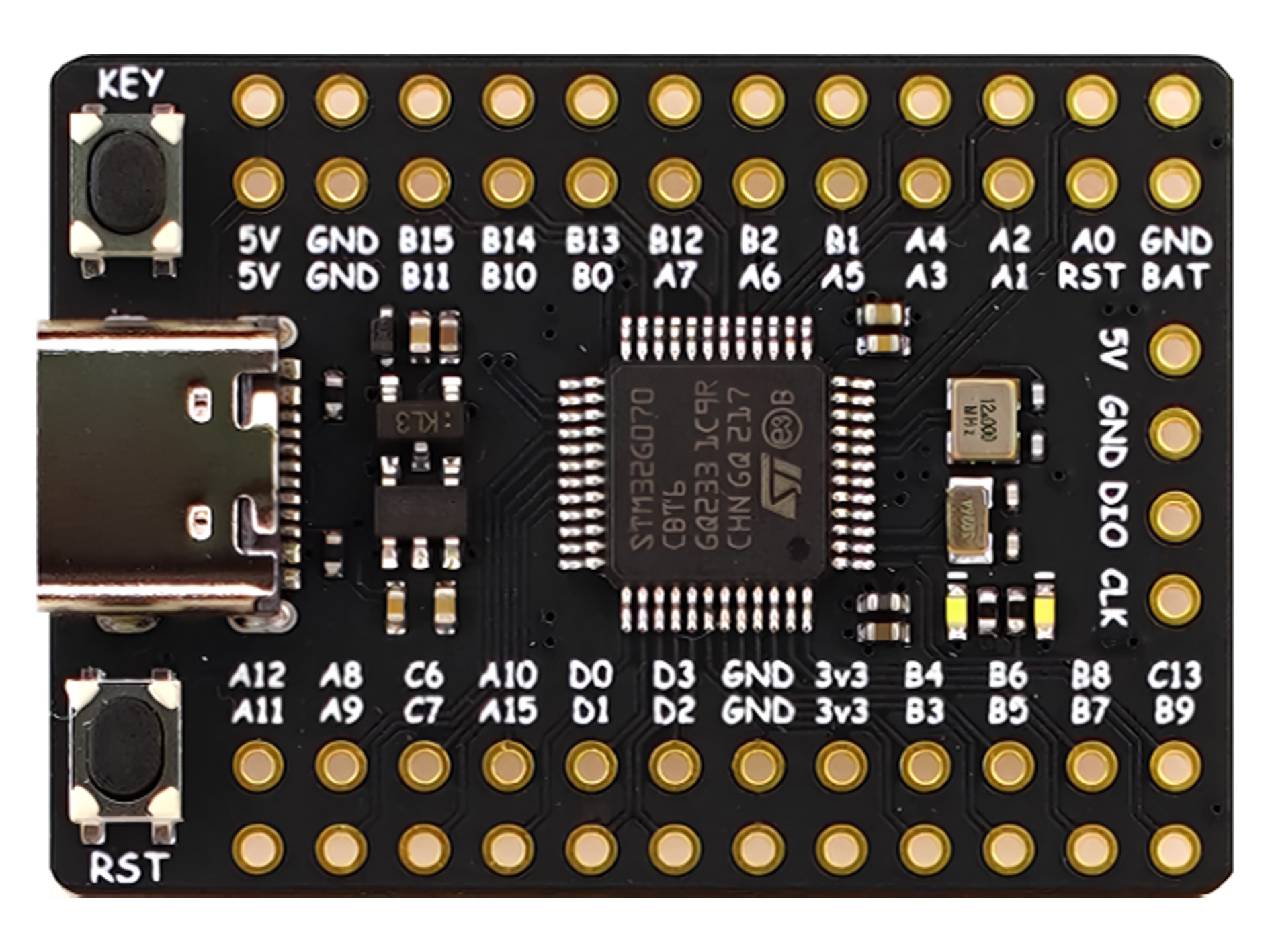

STM32G070CBT6 Arduino

One of the standout features of STM32 microcontrollers is their ability to integrate with the Arduino ecosystem. This compatibility allows users to develop Arduino projects using STM32 libraries, leveraging the ease of Arduino IDE while utilizing the performance of STM32G070CBT6.

Setting Up the Arduino Environment

Install the STM32 board package from the Arduino Board Manager.

Select "STM32G0 Series" in the board options.

Load the bootloader using a programmer or debugger.

Start coding with familiar Arduino functions and libraries.

By integrating STM32G070CBT6 into the Arduino workflow, even complex projects like motor control, IoT devices, or data logging become accessible.

Programming the STM32G070CBT6

STM32G070CBT6 offers multiple programming options, making it versatile for different user levels.

Using STM32CubeIDE

STM32CubeIDE is an all-in-one tool for STM32 development. It provides code generation, compilation, and debugging functionalities, supporting the latest features of the microcontroller.

Bootloader Programming

The STM32G070CBT6 supports USB and UART bootloader options, enabling firmware updates without additional hardware. This is especially useful for remote applications or devices in inaccessible locations.

STM32G070CBT6 Package and Footprint

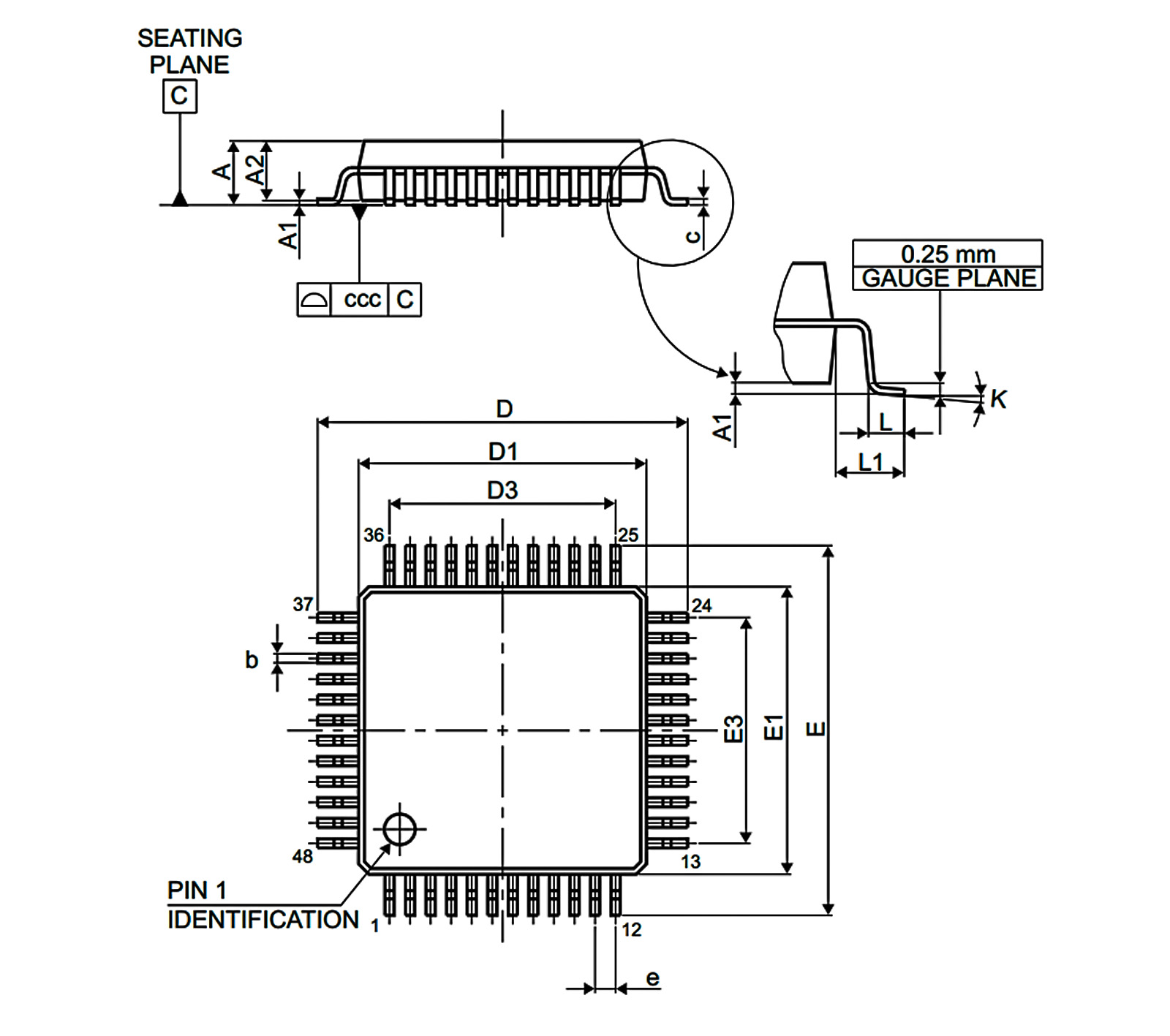

Package

STM32G070CBT6 package

Type: LQFP-48 (Low Profile Quad Flat Package, 48 pins)

Dimensions: 7 mm × 7 mm

Pin Pitch: 0.5 mm

Height: 1.2 mm max

Pin Length: 0.45–0.75 mm

Footprint

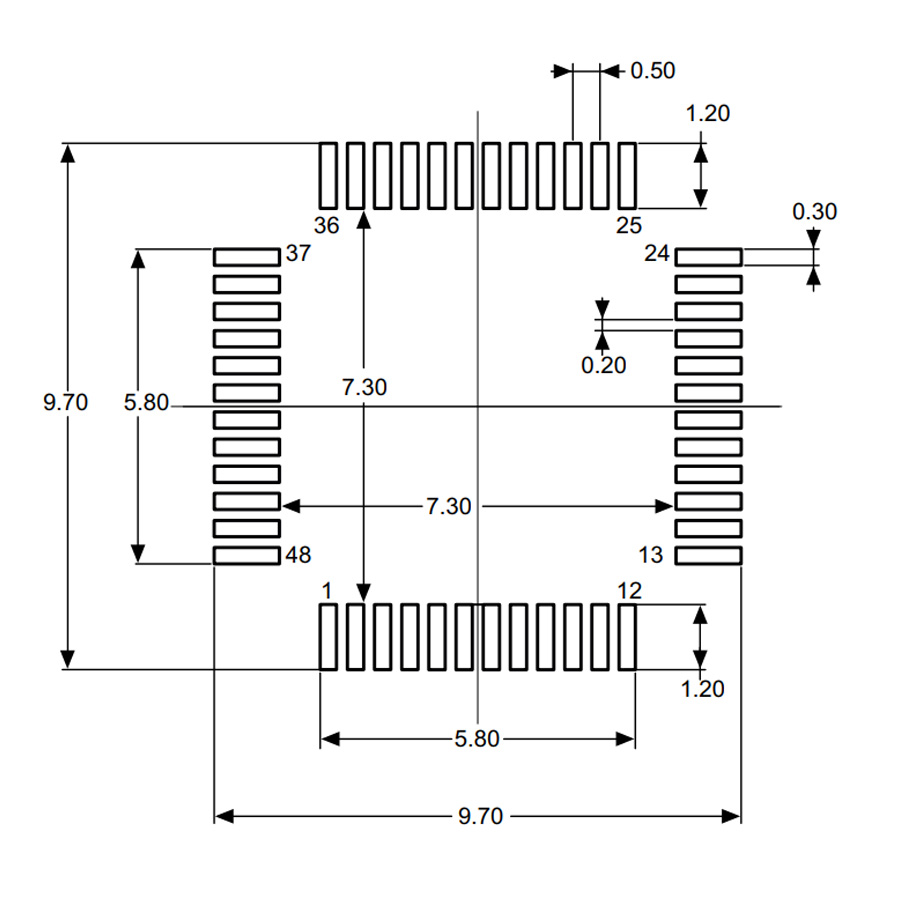

STM32G070CBT6 footprint

Pad Size: 0.30 mm × 1.20 mm

Pad Pitch: 0.50 mm

Distance Between Pads (Across Package): 7.30 mm

Overall Size: 9.70 mm × 9.70 mm

Sum up

The STM32G070CBT6 is a powerful and versatile microcontroller suitable for a wide range of applications. Whether you're designing a custom PCB or developing Arduino projects, its extensive features and ecosystem support make it an excellent choice. To get started, explore the official reference manual, study the datasheet, and leverage the community resources available.

Frequently Asked Questions

How to configure the clock on STM32G070CBT6?

Use RCC registers or STM32CubeMX to select clock sources like HSE, HSI, or PLL and adjust frequency settings.

How to program STM32G070CBT6 via USB?

Enable USB bootloader with the BOOT0 pin, then use STM32CubeProgrammer to upload firmware.

How to interface I2C sensors with STM32G070CBT6?

Configure I2C in STM32CubeMX and use HAL/LL libraries for data communication.

What is the price of STM32G070CBT6?

The price of STM32G070CBT6 typically ranges from $2.50 to $4.50 depending on the quantity and supplier.

Where can I find the datasheet for STM32G070CBT6?

You can find the datasheet for the STM32G070CBT6 on our official website
