STMicroelectronics STM32G030C8T6

The STM32G030C8T6 is a microcontroller from STMicroelectronics that belongs to the STM32G0 series. This microcontroller is known for its low-power features, robustness, and versatility, making it an excellent choice for a wide variety of embedded applications. In this article, we will explore the STM32G030C8T6 pinout, development boards, and its integration with Arduino projects, while also highlighting important aspects such as programming, datasheets, and circuit design.

Table of Contents

• Overview of STM32G030C8T6
• STM32G030C8T6 Pinout
• STM32G030C8T6 Development Boards
• Integrating STM32G030C8T6 with Arduino
• STM32G030C8T6 Projects
• Schematic Design and Circuit Considerations
• STM32G030C8T6 Package and Footprint
• Sum up
• Frequently Asked Questions

Overview of STM32G030C8T6

Before diving into the specifics of the pinout and related aspects, it's important to have a high-level understanding of the STM32G030C8T6 microcontroller. This device is based on the ARM Cortex-M0+ core, running at up to 64 MHz. With 64 KB of Flash memory and 16 KB of SRAM, it offers ample space for embedded software. It also features a wide range of peripherals, including I2C, SPI, USART, PWM, ADC, and timers, which are ideal for a variety of applications, from industrial to consumer electronics.

Features of STM32G030C8T6

Core: ARM Cortex-M0+.

Flash Memory: 64 KB.

SRAM: 16 KB.

Operating Voltage: 2.3V to 3.6V.

Operating Frequency: 64 MHz.

GPIO Pins: 48.

Benefits of STM32G030C8T6

The STM32G030C8T6 is designed for low-power applications, which is a crucial feature for battery-operated devices. It offers various low-power modes, making it perfect for energy-efficient designs. Additionally, it's ideal for projects requiring robust performance and flexibility without the need for extensive processing power.

STM32G030C8T6 Pinout

Understanding the pinout of the STM32G030C8T6 is crucial for utilizing the microcontroller in a variety of applications. The microcontroller is equipped with 48 pins, each of which serves multiple functions, including power supply, GPIO, communication interfaces, and analog input/output. Below is a general overview of the pinout.

Pinout

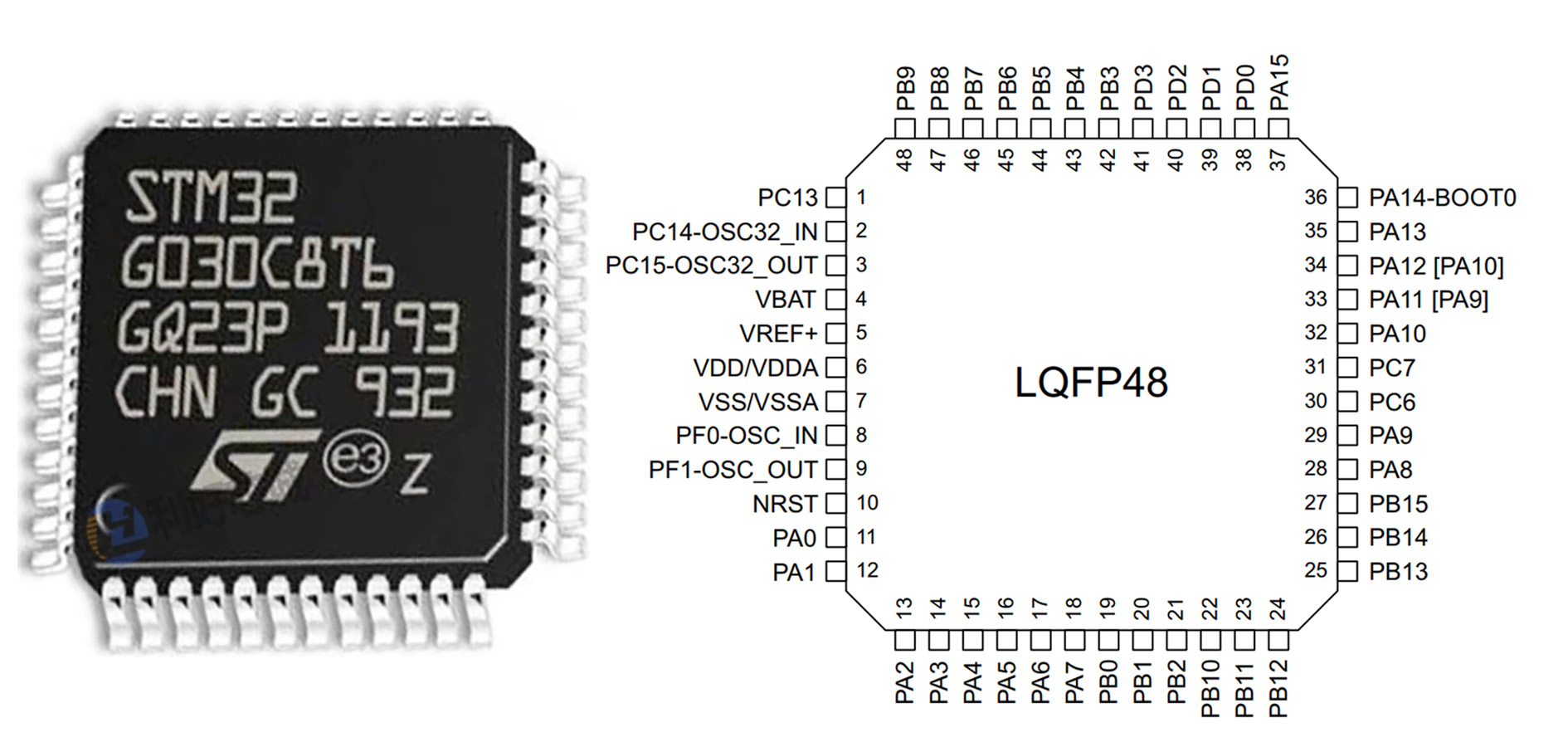

STM32G030C8T6 Pinout

Each of the pins on the STM32G030C8T6 is mapped to a specific function, and developers need to refer to the datasheet or reference manual for detailed pin configurations.

STM32G030C8T6 Development Boards

Development boards are essential for working with the STM32G030C8T6 microcontroller, providing easy access to programming, debugging, and I/O for embedded projects.

Popular Development Boards

Blue Pill: A compact, budget-friendly board that supports USB programming and debugging. Ideal for low-power projects and quick prototyping.

NUCLEO-G030R8: An official STMicroelectronics board with onboard ST-Link debugger, expansion headers, and multiple I/O options for professional development.

STM32G0 Discovery Kit: A versatile kit with various I/O and peripherals, designed for embedded system projects.

Development Boards Key Features

Onboard Debugging: Simplifies programming and debugging.

USB Connectivity: Enables easy firmware upload via USB.

Expansion Headers: Convenient for adding external components.

Integrating STM32G030C8T6 with Arduino

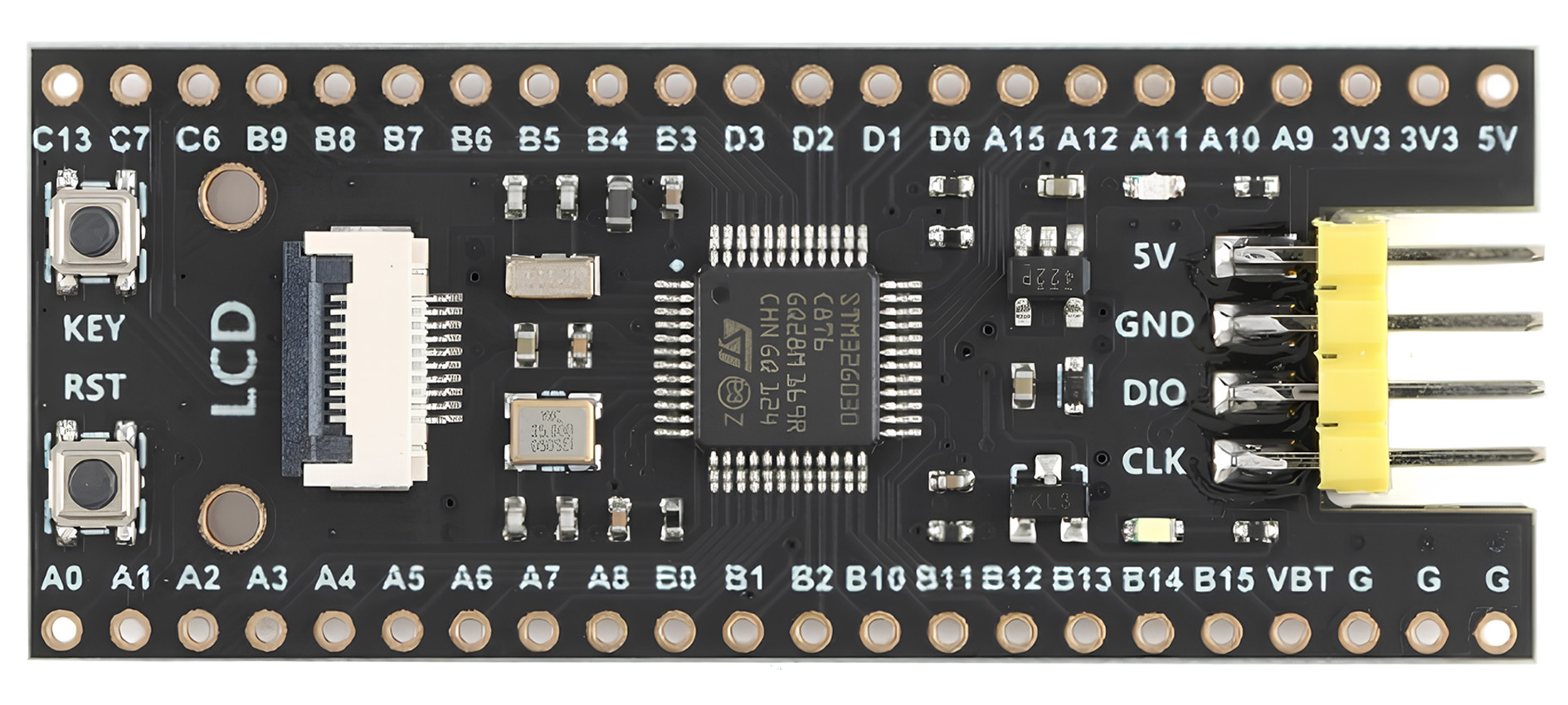

STM32G030C8T6 Arduino

The STM32G030C8T6 microcontroller can be seamlessly integrated with the Arduino ecosystem, allowing developers to leverage the simplicity of the Arduino IDE while taking advantage of the STM32's powerful features. This combination is ideal for hobbyists and professionals working on embedded systems or IoT projects.

Steps to Use STM32G030C8T6 with Arduino

Install STM32 Core: Add the STM32 core to the Arduino IDE. This allows the STM32G030C8T6 to be programmed directly within the Arduino environment.

Connect the Board: Use a USB-to-serial adapter or an ST-Link programmer to connect the STM32G030C8T6 to your PC.

Select the Board: In the Arduino IDE, choose the appropriate STM32 board configuration from the Tools menu.

Write and Upload Code: Write code using Arduino libraries and upload it to the microcontroller.

Benefits of Arduino Integration

Ease of Use: The Arduino IDE simplifies programming and reduces the learning curve for newcomers.

Extensive Libraries: Leverage the vast collection of Arduino libraries for sensors, communication modules, and other peripherals.

Rapid Prototyping: Quickly create and test projects using familiar tools and workflows.

Community Support: Access a large, active community for troubleshooting and project inspiration.

STM32G030C8T6 Projects

The STM32G030C8T6 is a versatile microcontroller that can be used in a variety of projects. Below are a few project ideas that leverage its features.

Example 1: Low-Power Sensor Node

Using the STM32G030C8T6, you can create a low-power sensor node for monitoring environmental conditions such as temperature and humidity. This project can be powered by a battery, with the microcontroller transitioning to sleep modes to conserve energy when the system is not actively collecting data.

Example 2: Wireless Communication System

With its UART and SPI capabilities, the STM32G030C8T6 can be used to build a wireless communication system. You could pair it with a Wi-Fi or Bluetooth module, enabling communication with other devices.

Example 3: Home Automation System

The STM32G030C8T6's versatile I/O pins and communication interfaces make it a perfect candidate for a home automation project. You could integrate it with relays and sensors to control various home appliances and monitor environmental factors in real-time.

Schematic Design and Circuit Considerations

When designing a circuit with the STM32G030C8T6, it's essential to create a schematic that maps out the connections between the microcontroller and the various external components. The schematic should include all necessary power supply connections, input/output pins, and communication lines. Moreover, proper grounding and noise filtering are vital for ensuring stable operation in embedded systems.

Key Considerations for Circuit Design

Power Supply: Ensure that the microcontroller receives a stable voltage between 2.3V and 3.6V.

Pin Configuration: Be sure to use the correct pins for communication and I/O functions based on the pinout.

Decoupling Capacitors: Use appropriate decoupling capacitors near the power pins to prevent voltage spikes and noise.

STM32G030C8T6 Package and Footprint

The STM32G030C8T6 uses the LQFP-48 package, designed for compact and efficient PCB layouts.

Package: LQFP-48

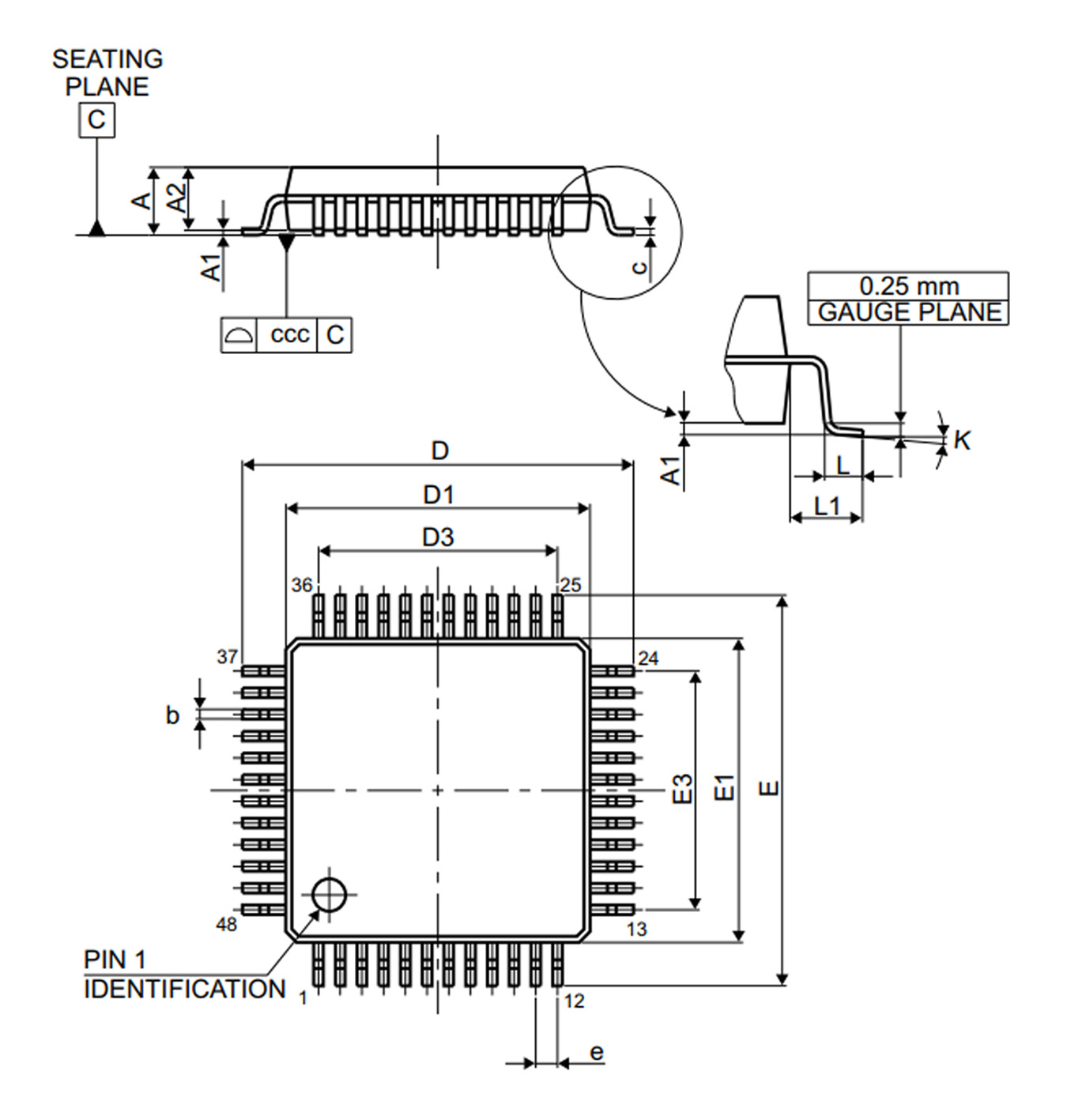

STM32G030C8T6 package

Dimensions: 7.0 mm × 7.0 mm body size, 9.70 mm total width.

Pin Count: 48 pins with a 0.50 mm pitch.

Height: Maximum 1.2 mm.

Key Features: Space-efficient, robust thermal performance, and easy to solder.

Footprint Design

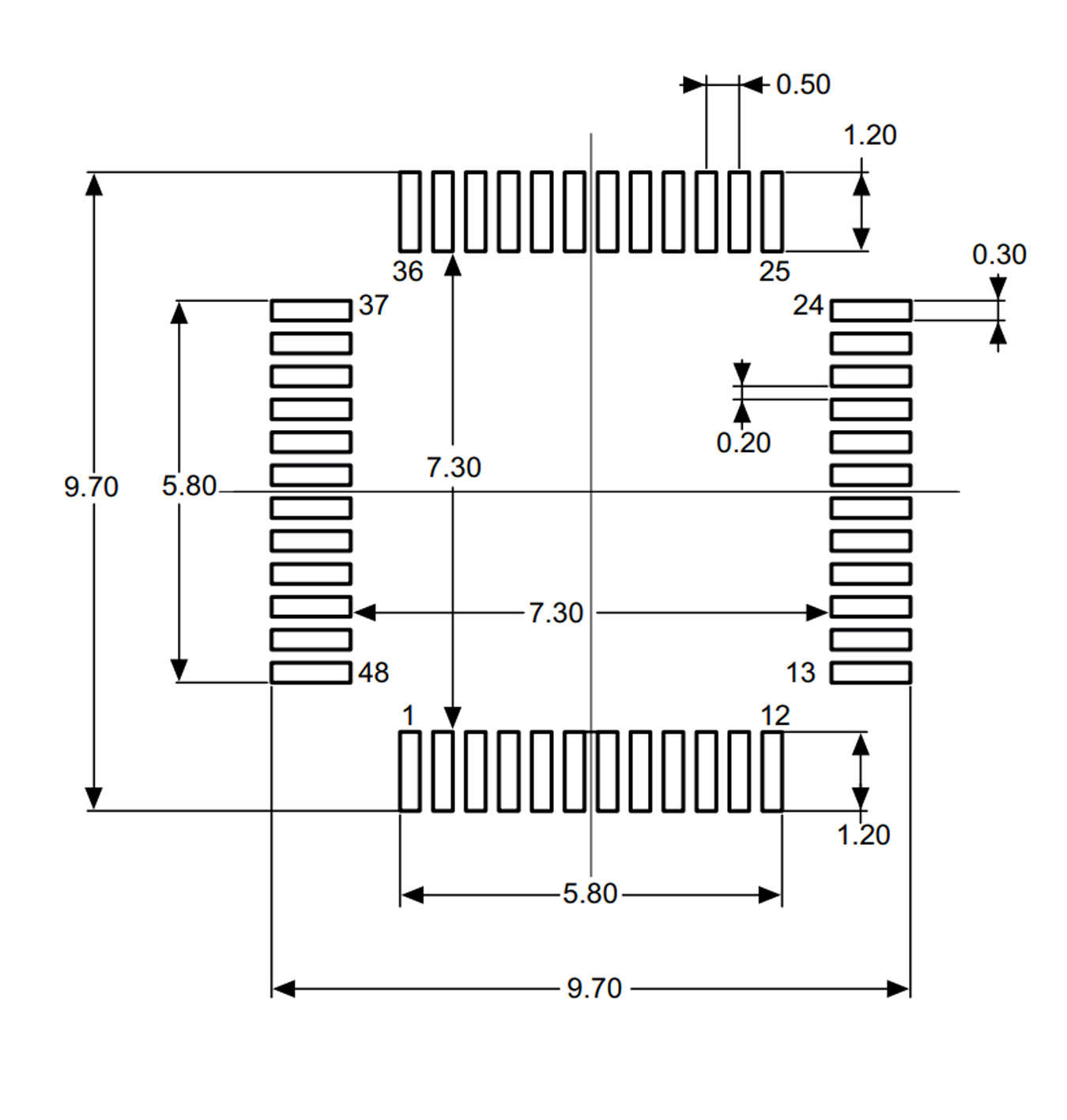

STM32G030C8T6 footprint

Pad Dimensions: 0.30 mm × 1.20 mm.

Pin Pitch: 0.50 mm.

Spacing: 7.30 mm between outer pads.

Silkscreen: Include a pin-1 indicator and clear component outline.

Thermal Vias: Recommended near ground and power pins for heat dissipation.

Sum up

The STM32G030C8T6 microcontroller is an excellent choice for embedded system designers, offering a balance of performance, power efficiency, and flexibility. Its integration with Arduino and availability of development boards makes it accessible for hobbyists and professionals alike. Whether you are developing simple projects or complex systems, understanding the pinout, using the datasheet, and referencing the schematic will be essential to your success.

Frequently Asked Questions

What is the price of STM32G030C8T6?

The STM32G030C8T6 typically costs around $1.50 to $3.00, depending on the supplier and quantity purchased.

Where to download the STM32G030C8T6 datasheet?

You can download the datasheet directly from the STMicroelectronics official website or from authorized distributors like DigiKey or Mouser.

What is the power consumption of STM32G030C8T6?

Power consumption varies by mode: ~150 µA/MHz in active mode and ~3 µA in Stop mode, making it ideal for battery-powered devices.

What is the difference between STM32G030C8T6 and STM32F103C8T6?

The STM32G030C8T6 has a more efficient Cortex-M0+ core and enhanced low-power features, while the STM32F103C8T6 uses a Cortex-M3 core with higher processing power but less focus on energy efficiency.

Is STM32G030C8T6 compatible with CubeMX?

Yes, STM32G030C8T6 is fully compatible with STM32CubeMX, which simplifies peripheral configuration and code generation.
