STMicroelectronics STM32F756BGT6

Part No.:: STM32F756BGT6

Manufacturer:: STMicroelectronics

Package:: 208-LQFP

Datasheet:: STM32F756BGT6.pdf

Description:: IC MCU 32BIT 1MB FLASH 208LQFP

In Stock:: 3760

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F756BGT6 Specifications

Package/Case:
208-LQFP
Packaging:
Tray
Series:
STM32F7
RoHS:
RoHS
Speed:
216MHz
RAM Size:
320K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Connectivity:
CANbus, Ethernet, HDMI-CEC, I²C, IrDA, LINbus, MMC/SD, SAI, SPDIFRX, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
168
Core Processor:
ARM® Cortex®-M7
Data Converters:
A/D 24x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
1MB (1M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F756BGT6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F756BGT6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F756BGT6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F756BGT6 information

Views：

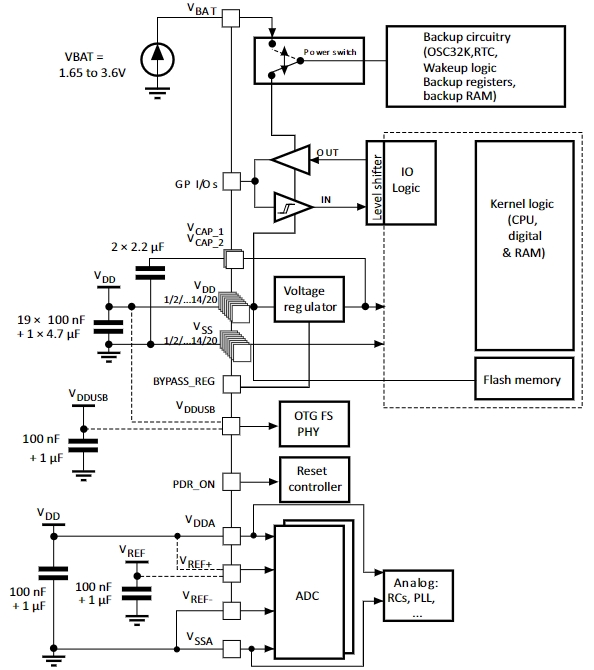

STM32F756BGT6 Typical application Circuitry Schematics

The STM32F756BGT6 is part of the STM32F7 series of high-performance microcontrollers from STMicroelectronics. Incorporating the ARM Cortex-M7 core, this microcontroller family is acknowledged for its robust processing capabilities, rich set of I/Os, and multifaceted peripheral features. Let's break down the naming convention and then proceed to discuss the general features and circuit design considerations.

STM32F756BGT6 Naming Convention: - STM32: Indicates the STM32 family of microcontrollers. - F7: Points to the high-performance series featuring the Cortex-M7 core. - 56: Specifies a certain sub-family with particular features. - B: Refers to the package type (for exact type, refer to the datasheet). - G: Signifies the amount of Flash memory (please verify exact size in the datasheet). - T6: Denotes temperature range and variant information. General Features and Specifications: - Core: ARM Cortex-M7. - Max Clock Frequency: Up to 216 MHz (verify in the datasheet for exact specification). - Flash Memory: Defined by variant (refer to datasheet). - RAM: Size specified in the datasheet. - I/O Pins: Varied per package type. - Communication Interfaces: Such as I2C, USART, SPI, USB, etc. - Analog Modules: Including ADCs and DACs. - Power Supply: Typically between 1.7 V and 3.6 V. Basic Circuit Design Elements:

1. Power Supply: - Appropriate voltage on VDD/VSS pins, with decoupling capacitors placed near the pins.

2. Clock Circuit: - Optional external oscillator and relevant capacitors based on accuracy requirements.

3. Reset Circuit: - A reset button connected to the NRST pin, typically with a pull-up resistor.

4. GPIO Configuration: - Adequate pull-up or pull-down resistors where necessary.

5. Debugging/Programming: - Accessibility to SWDIO and SWCLK pins for debugging and programming.

6. Boot Mode Configuration: - Set BOOT0/BOOT1 pins for your required boot memory space.

7. Peripherals: - Ensure circuits are built for employed peripherals while adhering to their operational specifications.

Design Tips: - EMC and EMI: Ensure adherence to EMC and EMI standards to prevent electromagnetic interference. - Heat Management: Adequate heat dissipation techniques to keep the MCU within operational temperature ranges. - Protection: Include over-voltage and ESD protection. - Signal Integrity: Maintain trace lengths and impedances for high-speed signals. Potential Applications: - Industrial Controls: Especially in scenarios demanding high computational power. - Medical Instruments: Utilized in devices requiring robust I/O and computational capabilities. - Consumer Electronics: Including smart home devices and wearables. - Communication Devices: With potentially complex communication requirements. Development Environment: - STM32F756BGT6: For initial setup of pinouts, peripherals, and middleware with code generation. - STM32F756BGT6: For development and debugging in STMicroelectronics' IDE. - HAL/LL Libraries: Simplifying peripheral initialization and control. Note: Always refer to the STM32F756BGT6 datasheet and reference manual provided by STMicroelectronics for specific, detailed, and accurate information on specifications, configurations, and usage. Validating and testing the design under real-world conditions will help ensure stability and reliability in actual applications. Ensure to verify features like memory sizes, pinouts, and specific electrical characteristics from the official documentation, as these are vital for precise engineering designs.
