STMicroelectronics STM32F746NEH6

Part No.:: STM32F746NEH6

Manufacturer:: STMicroelectronics

Package:: 216-TFBGA

Datasheet:: STM32F746NEH6.pdf

Description:: IC MCU 32BIT 512KB FLSH 216TFBGA

In Stock:: 2475

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F746NEH6 Specifications

Package/Case:
216-TFBGA
Packaging:
Tray
Series:
STM32F7
RoHS:
RoHS
Speed:
216MHz
RAM Size:
320K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
168
Core Processor:
ARM® Cortex®-M7
Data Converters:
A/D 24x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F746NEH6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F746NEH6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F746NEH6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F746NEH6 information

Views：

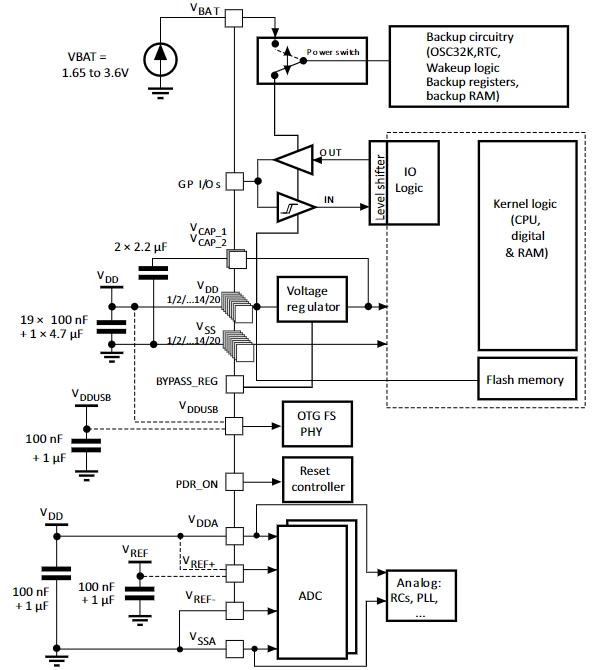

STM32F746NEH6 Typical application Circuitry Schematics

The STM32F746NEH6 is a microcontroller from the STM32 family, which is widely known for its high-performance microcontrollers that incorporate the ARM Cortex-M7 core. The STM32F7 series, in particular, is recognized for its processing power, ample I/O capabilities, and an array of feature-rich peripherals.

STM32F746NEH6 Naming Convention: - STM32: Signifying the product family. - F7: High-performance series with a Cortex-M7 core. - 46: Sub-family indicating specific features. - N: The package type. Verify from the datasheet for specific packaging details. - E: Denotes the Flash memory size. Refer to the datasheet to confirm the exact size. - H6: Temperature range and variant information. General Features and Specifications: - Core: ARM Cortex-M7. - Maximum Clock Frequency: Up to 216 MHz. - Flash Memory: Determined by the specific variant. - RAM: Specified in the datasheet. - I/O Pins: Depending on the package type. - Communication Peripherals: Including I2C, USART, SPI, USB, etc. - Analog Peripherals: ADC and DAC. - Power Supply: Typically 1.7 V to 3.6 V. Basic Circuit Components and Considerations:

1. Power Supply: - Supply to VDD/VSS pins and decoupling capacitors close to these pins.

2. Clock Circuit: - Possible external crystal oscillator and capacitors depending on accuracy requirements.

3. Reset Circuit: - Typically, a push-button connected to the NRST pin with a pull-up resistor.

4. GPIO Configuration: - Configuring pull-up or pull-down resistors where necessary.

5. Programming and Debugging: - SWDIO and SWCLK pins should be accessible.

6. Boot Mode Pins: - Configuring BOOT0/BOOT1 pins for desired boot memory space.

7. Peripheral Configurations: - Design circuits for utilized peripherals, adhering to voltage and current specifications.

Design and Implementation Tips: - EMC and EMI: Prioritize ensuring that the design adheres to EMC and EMI standards. - Thermal Management: Considerations for maintaining the MCU within the operational temperature range. - Protective Measures: Implement ESD protection and over-voltage protection. - Signal Integrity: Pay attention to the trace lengths and paths for high-frequency signals. Potential Applications: - Industrial Controls: For managing and controlling industrial equipment and processes. - Medical Devices: Useful in devices requiring high computational power and reliable I/O. - Consumer Electronics: Such as smart appliances, wearables, and other smart devices. - Automotive: In control systems, user interfaces, and communications within vehicles. Development Ecosystem: - STM32F746NEH6: Pinouts, peripherals, and initialization code can all be configured graphically with this tool. - STM32F746NEH6:Code development and debugging are done in an integrated development environment (IDE). - HAL/LL Libraries: To facilitate peripheral initialization and control. Note: Always consult the STM32F746NEH6 datasheet and reference manual directly from STMicroelectronics for the most accurate and comprehensive specifications, electrical characteristics, and application guidance. Ensure to validate and test the design under real-world conditions to ensure robustness and reliability. Always confirm features such as memory sizes, pinouts, and specific characteristics from official documents, as these can be variant-dependent.
