STMicroelectronics STM32F429ZIY6TR

Part No.:: STM32F429ZIY6TR

Manufacturer:: STMicroelectronics

Package:: 143-UFBGA, WLCSP

Datasheet:: STM32F429ZIY6TR.pdf

Description:: IC MCU 32BIT 2MB FLASH 143WLCSP

In Stock:: 2214

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F429ZIY6TR Specifications

Package/Case:
143-UFBGA, WLCSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
STM32F4
RoHS:
RoHS
Speed:
180MHz
RAM Size:
256K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
114
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 24x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
2MB (2M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F429ZIY6TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F429ZIY6TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F429ZIY6TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F429ZIY6TR information

Views：

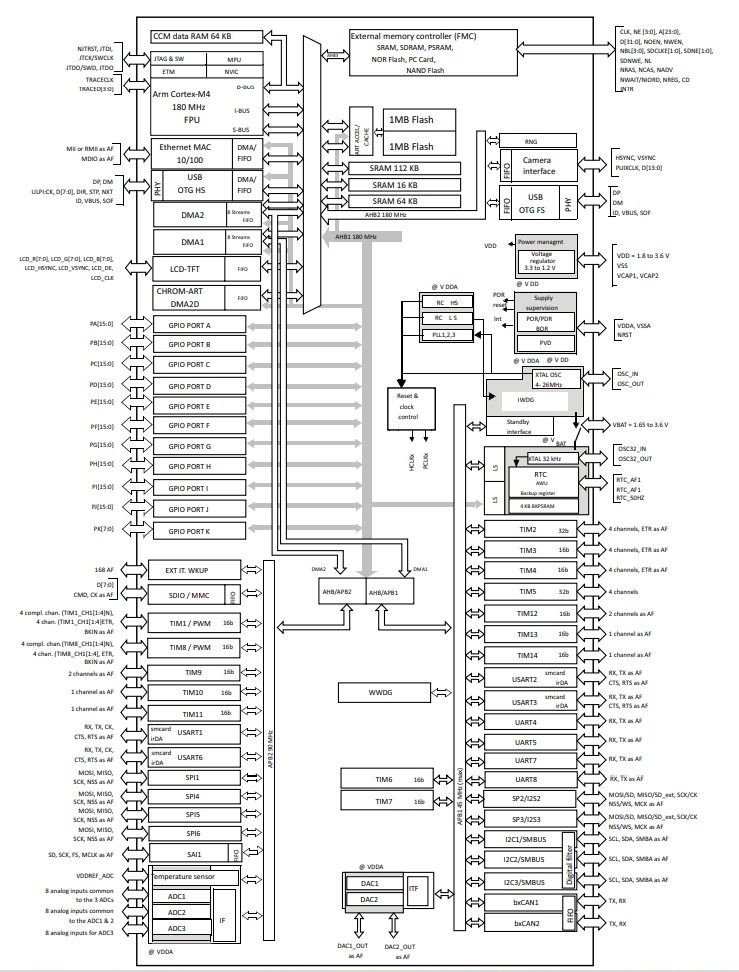

STM32F429ZIY6TR Typical application Circuitry

STM32F429ZIY6TR

A sophisticated microcontroller from STMicroelectronics' STM32F4 family, the STM32F429ZIY6TR is driven by an ARM Cortex-M4 CPU that has a floating-point unit (FPU) and a digital signal processor (DSP). This particular model is highly regarded for its powerful performance, especially in tasks involving complex graphics and high-speed interface operations, thanks to its Chrom-ART Accelerator™ for enhanced graphic processing. The STM32F429ZIY6TR is often chosen for sophisticated applications such as high-end consumer electronics, professional audio systems, and comprehensive system management interfaces due to its robust feature set.

1. Power Supply Connections:

- Core and I/O Supply (VDD): Connect all VDD pins (e.g., pins 5, 23, 36, 48, 64) to a 3.3V power source to ensure the microcontroller has sufficient power for digital operations.

- Analog Supply (VDDA): It is crucial to connect the VDDA pin (pin 9) also to 3.3V, with careful attention to ensure that this supply is clean and stable for optimal analog functionality.

2. Grounding Scheme:

- System Ground (VSS): All VSS pins should be connected to the ground to provide a stable operation environment and minimize electrical noise, which is vital for maintaining the integrity of both digital and analog signals.

3. Clock Source Configuration:

- External Clock Setup: To maintain accurate system timing, connect a crystal oscillator or an external clock source between OSC_IN (pin 7) and OSC_OUT (pin 8). An 8 MHz crystal is typically used to supply a stable clock signal necessary for all timed operations within the STM32F429ZIY6TR.

4. Reset Pin Configuration:

- Reset Input (NRST): Connect the NRST pin (pin 10) to a push-button or another reset control mechanism. This setup allows for manual resetting of the STM32F429ZIY6TR, which can be essential for troubleshooting and system maintenance.

5. Boot Mode Setting:

- Boot Configuration (BOOT0): The BOOT0 pin (pin 1) determines the source from which the STM32F429ZIY6TR boots. Set this pin high (connected to VDD) to boot from system memory, or low (connected to ground) for flash memory boot, according to the needs of your application.

6. Communication Interfaces:

- USART Setup: For communication purposes, particularly useful during development and debugging, configure USART1 by connecting TX (pin 42) to the RX line of another device and RX (pin 43) to TX. This ensures the STM32F429ZIY6TR can communicate effectively with external systems for data transfer and firmware updates.

By meticulously implementing these connection steps, the STM32F429ZIY6TR can be integrated effectively into a variety of electronic projects, utilizing its full capabilities to enhance system performance in applications requiring robust processing power and advanced graphical output. This guide aims to facilitate the correct setup of the STM32F429ZIY6TR to ensure it operates efficiently and reliably in your high-demand applications.
