STMicroelectronics STM32F423VHT6

Part No.:: STM32F423VHT6

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: STM32F423VHT6.pdf

Description:: IC MCU 32BIT 1.5MB FLASH 100LQFP

In Stock:: 3067

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F423VHT6 Specifications

Package/Case:
100-LQFP
Packaging:
Tray
Series:
STM32F4
RoHS:
RoHS
Speed:
100MHz
RAM Size:
320K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
81
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 16x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
1.5MB (1.5M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F423VHT6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F423VHT6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F423VHT6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F423VHT6 information

Views：

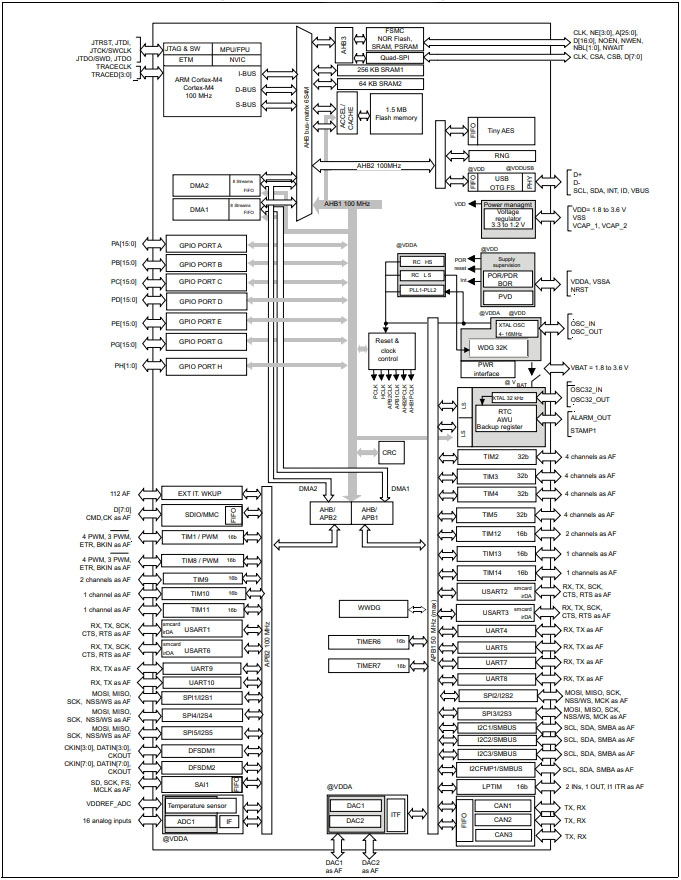

STM32F423VHT6 Typical application Circuitry

STM32F423VHT6

From STMicroelectronics' STM32F4 family, which is well-known for using the ARM Cortex-M4 core with extensive DSP (Digital Signal Processing) and FPU (Floating Point Unit) capabilities, comes the complex microcontroller STM32F423VHT6.This model, the STM32F423VHT6, is particularly noted for its high computational power and flexibility, designed to support complex algorithms and processes required in high-end applications such as advanced communication systems, professional audio equipment, and complex control systems.

1. Power Supply Setup:

- VDD Connections: Ensure that all VDD pins (including pins 5, 23, 36, 48, 64) are connected to a stable 3.3V power source. These pins provide the power necessary for all the digital operations within the STM32F423VHT6.

- VDDA Connection: The VDDA pin (pin 9) must also be connected to a 3.3V source. It is essential to keep this connection particularly clean and free from noise as it powers the analog components of the STM32F423VHT6, ensuring high precision in analog-to-digital conversions and other analog operations.

2. Grounding the Microcontroller:

- VSS Connections: Attach all VSS pins (like pins 6, 24, 37, 49, 65) to a common ground plane. This helps to stabilize the operation of the STM32F423VHT6 by reducing noise and preventing potential interference in the circuit.

3. Setting Up the Source of the Clock:

- Main Clock Source: Connect an external 8 MHz crystal to pins OSC_IN (pin 7) and OSC_OUT (pin 8).This setup provides a reliable clock signal that is crucial for maintaining accurate timing across the STM32F423VHT6's various operations.

4. Reset Pin Setup:

- NRST Configuration: Connect the NRST pin (pin 10) to a push-button or a dedicated reset circuit. This allows for manual resetting of the STM32F423VHT6, which is useful during development and debugging to quickly recover from errors.

5. Boot Mode Selection:

- BOOT0 Setting: The BOOT0 pin (pin 1) is used to select the boot mode of the STM32F423VHT6. Setting this pin high (connected to VDD) instructs the STM32F423VHT6 to boot from system memory, whereas setting it low (connected to ground) configures it to boot from the main flash memory.

6. Communication Interfaces:

- USART Setup: For serial communication, configure USART1 by connecting TX (pin 42) to the RX line of the communicating device and RX (pin 43) to its TX line. This enables data exchange and is essential for tasks such as firmware uploading or external communications with computers or other devices.

By meticulously setting up these connections, the STM32F423VHT6 can be effectively integrated into any advanced system requiring robust processing capabilities and high reliability. This guide helps ensure that the STM32F423VHT6 operates at its full potential within your projects.
