STMicroelectronics STM32F417VGT6TR

Part No.:: STM32F417VGT6TR

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: STM32F417VGT6TR.pdf

Description:: IC MCU 32BIT 1MB FLASH 100LQFP

In Stock:: 2475

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F417VGT6TR Specifications

Package/Case:
100-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
STM32F4
RoHS:
RoHS
Speed:
168MHz
RAM Size:
192K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
82
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 16x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
1MB (1M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F417VGT6TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F417VGT6TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F417VGT6TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F417VGT6TR information

Views：

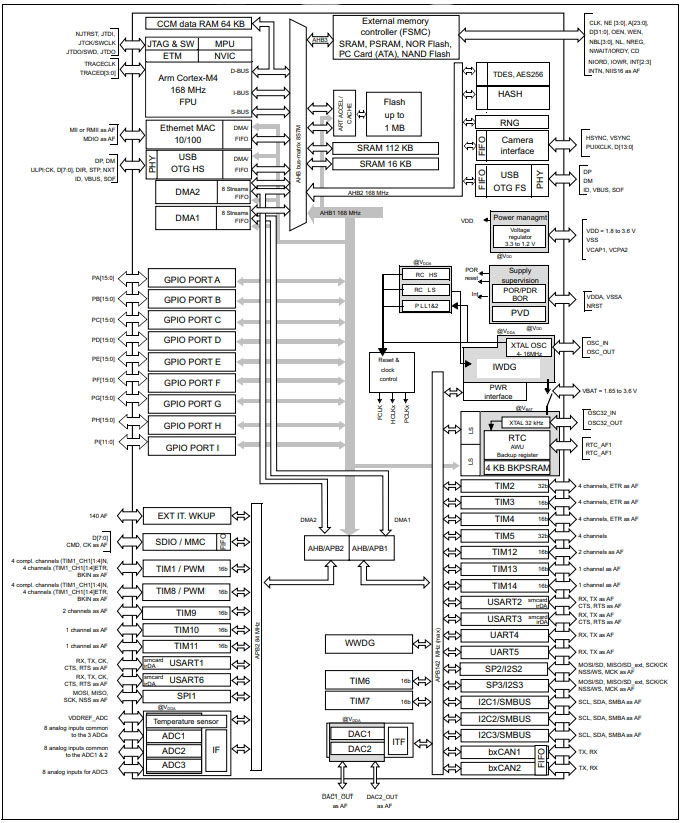

STM32F417VGT6TR Typical application Circuitry

STM32F417VGT6TR

STM32F417VGT6TR is an advanced microcontroller within the STM32F4 series produced by STMicroelectronics. Built around the ARM Cortex-M4 core, this chip is distinguished by its DSP and FPU capabilities, making it a strong candidate for applications requiring intense computational power and real-time processing. It is especially noted for its networking abilities, supported by features like Ethernet and USB OTG, which facilitate robust communication setups ideal for complex industrial controls and communication systems.

1. Power Supply Requirements:

- Main Digital Supply (VDD): Ensure that all VDD pins (including pins 5, 23, 36, 48, 64) are connected to a reliable 3.3V power source. This connection is crucial for the stable operation of the STM32F417VGT6TR's digital functionalities.

- Analog Supply (VDDA): The VDDA pin (pin 9) should also be connected to a 3.3V source. To achieve optimal performance of the analog components, it's recommended to filter this power supply to minimize noise.

2. Establishing Ground Connections:

- System Grounding: Connect all VSS pins (for example, pins 6, 24, 37, 49, 65) to a common ground. This is essential for reducing noise and ensuring the STM32F417VGT6TR operates reliably under various electrical conditions.

3. Clock Configuration:

- External Clock Setup: To provide the STM32F417VGT6TR with a precise clock signal, connect a crystal oscillator between the OSC_IN (pin 7) and OSC_OUT (pin 8). Typically, an 8 MHz crystal is used for this purpose, offering stability and accuracy for all timed processes.

4. Reset Pin Arrangement:

- Manual/Automatic Reset (NRST): The NRST pin (pin 10) should be accessible and connected to either a manual reset button or an automatic reset circuit. This setup allows for easy resetting of the STM32F417VGT6TR, which is particularly useful during development and troubleshooting phases.

5. Boot Configuration Options:

- Boot Mode Setting (BOOT0): The BOOT0 pin (pin 1) controls the initial source of execution. Set this pin high (connect to VDD) to boot from system memory, or low (connect to ground) for booting from flash memory, providing flexibility depending on your application requirements.

6. Communication Interface Configuration:

- USART Setup for Data Exchange: Configure USART1 for communication by connecting the TX (pin 42) to the RX of another device and the RX (pin 43) to the TX. This allows for effective serial communication, essential for programming and data logging purposes.

By carefully setting up these connections, you can fully utilize the capabilities of the STM32F417VGT6TR in your projects, ensuring high performance and reliability in applications that demand robust processing power and connectivity.
