STMicroelectronics STM32F411VET6

Part No.:: STM32F411VET6

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: STM32F411VET6.pdf

Description:: IC MCU 32BIT 512KB FLASH 100LQFP

In Stock:: 2371

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F411VET6 Specifications

Package/Case:
100-LQFP
Packaging:
Tray
Series:
STM32F4
RoHS:
RoHS
Speed:
100MHz
RAM Size:
128K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
I²C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
81
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 16x12b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F411VET6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F411VET6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F411VET6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F411VET6 information

Views：

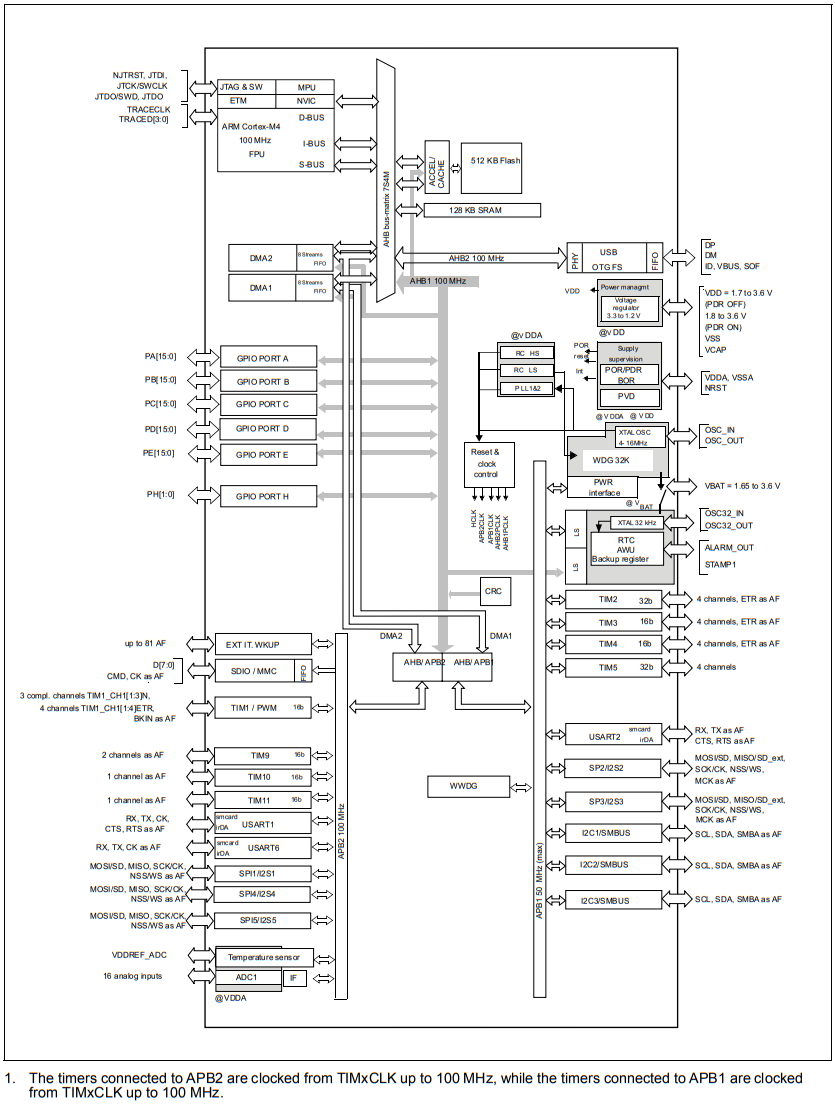

STM32F411VET6 Typical application Circuitry

The STM32F411VET6 belongs to the STM32F4 series of high-performance microcontrollers made by STMicroelectronics. It employs an ARM® Cortex®-M4 core with a floating-point unit (FPU) and DSP instructions, allowing for a wide range of computing and signal processing capabilities.

Attributes

The STM32F411VET6 brings an impressive array of specifications:

- Core: ARM® 32-bit Cortex®-M4 CPU with FPU and ART Accelerator running at up to 100 MHz. - Memory: 128 KB of SRAM and 512 KB of Flash memory.

- Communication interfaces: Two I2C interfaces, three SPI interfaces, two I2S interfaces, two USARTs, two UARTs, an SDIO interface, and a USB 2.0 full-speed device/host/OTG controller with on-chip PHY.

Applications

Given its processing power and integrated feature set, the STM32F411VET6 can be used in a broad range of applications, including industrial automation, motor control, security and alarm systems, smart home devices, and even complex multimedia processing tasks.

Now, let's outline a basic scenario using this microcontroller: an application to drive a motor control system.

Circuit

Implementation In a motor control system, we can use STM32F411VET6 to control a Brushless DC (BLDC) motor using the PWM mode of its general-purpose timers.

1. Power Supply: At 3.3V, the microcontroller's supply voltage, it runs. Connect VDD pins (Pins 11, 23) to the 3.3V power supply and the VSS pins (Pins 12, 24) to the ground.

2. Oscillator: Connect an 8 MHz external crystal between PF0/OSC_IN and PF1/OSC_OUT (Pins 30 and 31) to provide a reliable clock to the system.

3. Motor Driver: A motor driver like L6234 can be used to drive the motor. Its three input pins IN1, IN2, and IN3 are connected to the PWM output pins of the STM32F411VET6. For instance, these can be connected to the PA8, PA9, and PA10 (Pins 23, 24, and 25) which correspond to the output channels of Timer 1.

4. Feedback System: The Hall sensors of the BLDC motor provide feedback to the STM32F411VET6. Connect these to three of the GPIO pins, say, PA0, PA1, and PA2 (Pins 6, 7, and 8).

Design Considerations

When designing a circuit with the STM32F411VET6, consider the following aspects:

- Power Supply Stability: A stable and clean power supply is critical. Use capacitors near the VDD pins to decouple and filter the power supply.

- Thermal Considerations: In high processing demand scenarios, the chip might heat up. Efficient thermal design should be considered to prevent overheating.

- Signal Integrity: Ensure that the PCB layout is designed such that signal integrity is maintained, particularly for high-speed interfaces like USB.

- Protection: Ensure to include necessary protections like ESD and overvoltage protection circuits in the design.

In a nutshell, the STM32F411VET6 is an excellent choice for high-performance and demanding applications due to its robust set of features and high processing power.
