STMicroelectronics STM32F407ZET6

The STM32F407ZET6, part of the STM32F4 series from STMicroelectronics, offers a versatile and powerful platform for embedded development. With its ARM Cortex-M4 core, extensive peripheral support, and robust performance capabilities, the STM32F407ZET6 is an ideal choice for a range of applications, from industrial automation to robotics and multimedia. In this article, we will explore its pinout, development boards, and how it can be used in Arduino projects, along with important references to the datasheet, schematic, and considerations for price and programming.

Table of Contents

• Overview of STM32F407ZET6
• Understanding the STM32F407ZET6 Pinout
• Designing Circuits with STM32F407ZET6
• STM32F407ZET6 Development Boards
• STM32F407ZET6 and Arduino Projects
• Programming STM32F407ZET6
• TM32F407ZET6 Package and Footprint
• Conclusion
• Frequently Asked Questions

Overview of STM32F407ZET6

The STM32F407ZET6 microcontroller is based on the ARM Cortex-M4 architecture, which integrates a floating-point unit (FPU) and a high-speed processing core running at 168 MHz. It is equipped with 512 KB of SRAM, 1 MB of flash memory, and offers a variety of communication protocols and peripherals that can be used for both simple and complex embedded systems.

Key Features

Core: ARM Cortex-M4 with FPU (Floating-Point Unit)

Clock Speed: 168 MHz

Memory: 512 KB SRAM, 1 MB Flash

GPIO Pins: 144 pins with multiple alternate functions

Timers: 16-bit and 32-bit timers, including PWM generation

Analog Interfaces: 12-bit ADC, DAC

Communication: SPI, I2C, UART, CAN, USB, Ethernet

Advanced Features: DMA, external interrupts, and a variety of sensors

These features make the STM32F407ZET6 highly suitable for a variety of projects, from motor control to sensor data acquisition and wireless communication.

Understanding the STM32F407ZET6 Pinout

The pinout of the STM32F407ZET6 is essential for designing circuits that effectively utilize the microcontroller's capabilities. The pinout diagram shows the arrangement and functionality of each pin, including power supply, communication interfaces, digital I/O, and analog inputs/outputs. The STM32F407ZET6 comes with many flexible pins that can serve multiple functions, which makes it ideal for complex projects that require a large number of peripherals.

Pinout

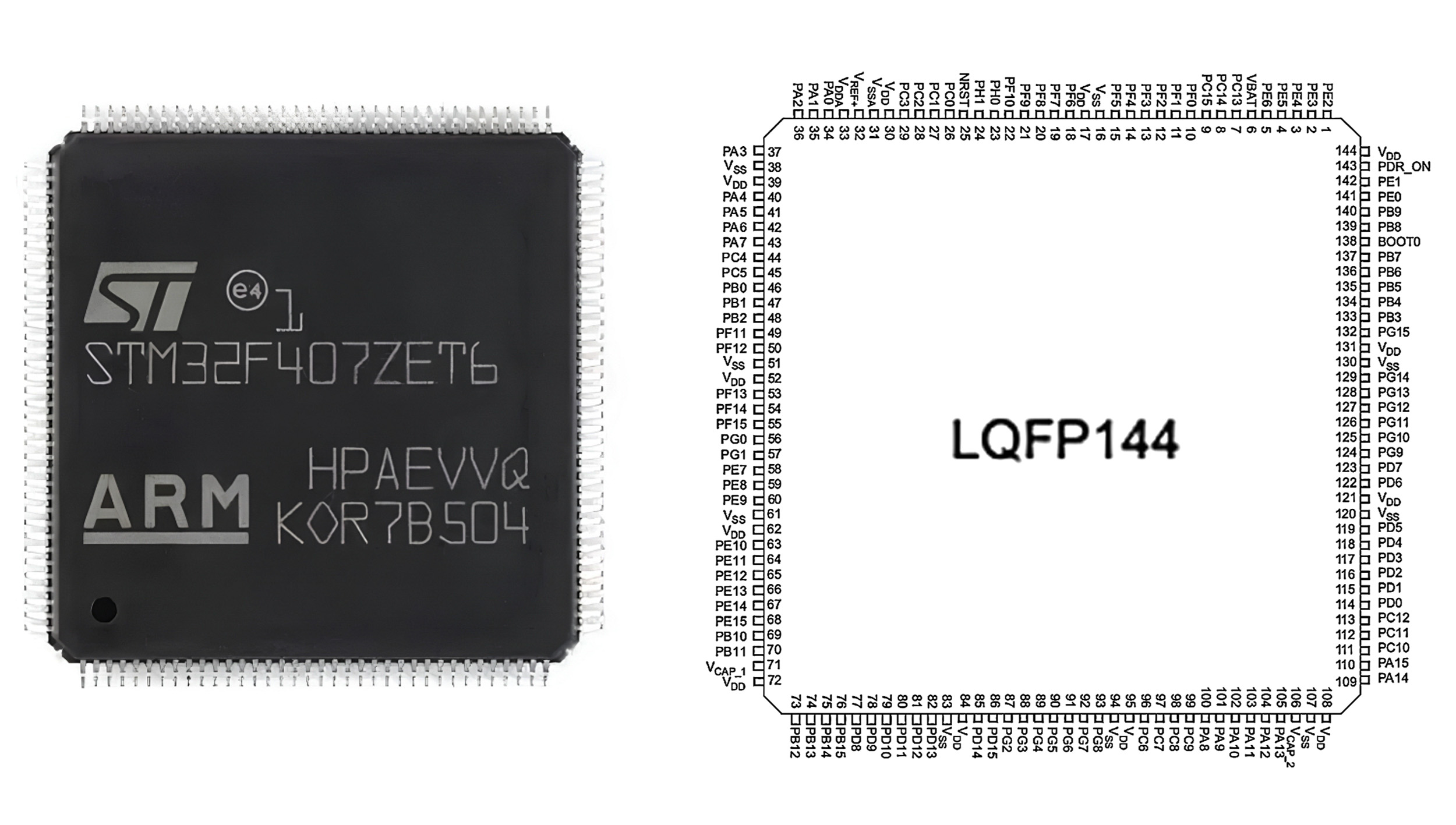

STM32F407ZET6 Pinout

For more detailed information on the pinout, you can refer to the official datasheet from STMicroelectronics, which provides an in-depth look at the capabilities and electrical characteristics of each pin.

Designing Circuits with STM32F407ZET6

When designing custom circuits with the STM32F407ZET6, it is essential to refer to the schematic and the footprint of the microcontroller. The schematic diagram will show how to connect external components like sensors, motors, and communication modules to the microcontroller, while the footprint defines the exact layout for mounting the microcontroller on a PCB.

Key Considerations for Circuit Design

Power Supply: Ensure the STM32F407ZET6 is supplied with a stable 3.3V power source, with proper decoupling capacitors to reduce noise.

Signal Integrity: For high-speed signals like SPI and UART, use appropriate trace lengths and avoid unnecessary crossings to prevent signal degradation.

Peripheral Connections: The flexible pinout of the STM32F407ZET6 allows for complex peripheral connections. Pay close attention to pin assignments when designing your circuit.

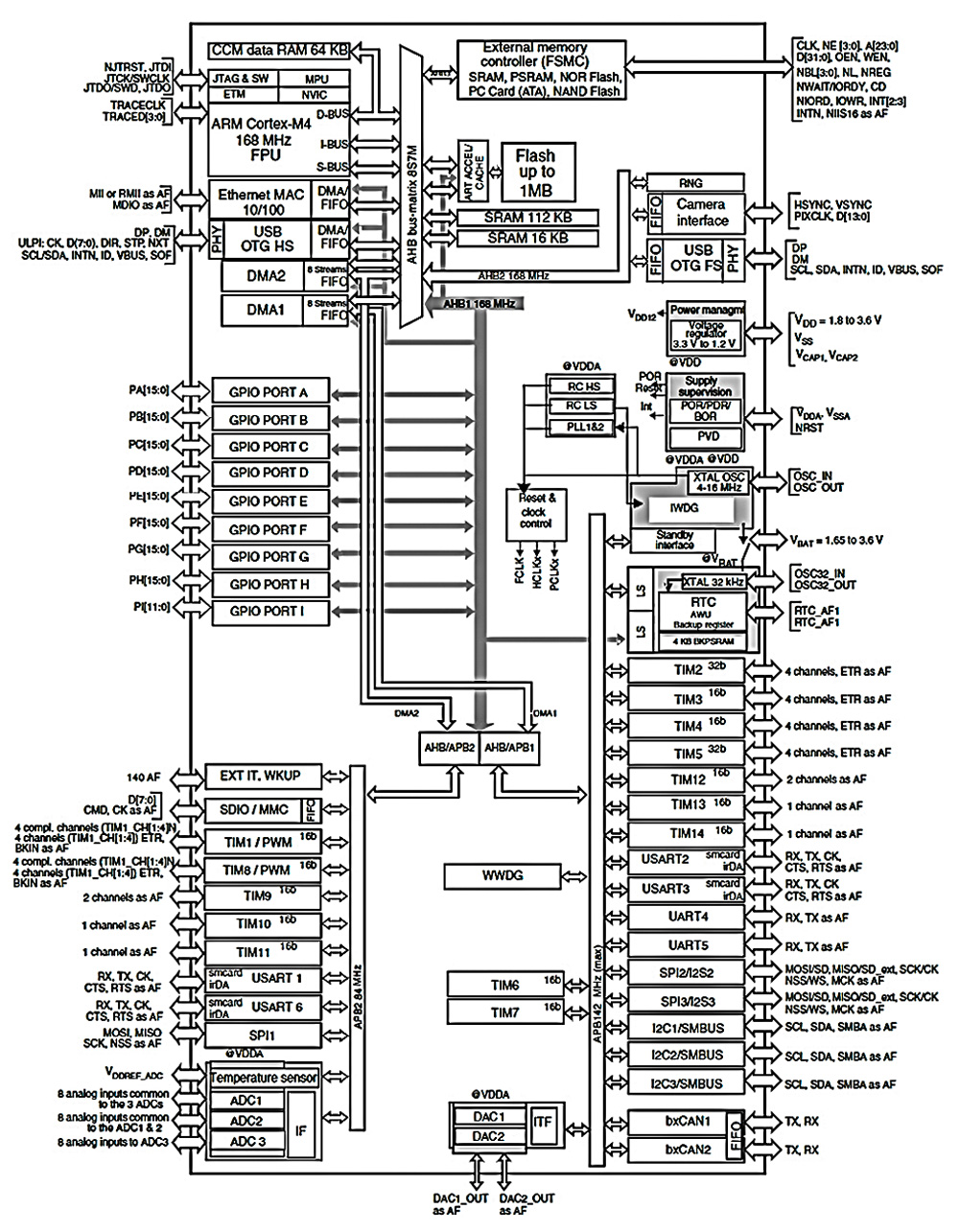

STM32F407ZET6 Typical application Circuitry

STM32F407ZET6 Typical application Circuitry

Power Supply:

Connect VDD to a stable voltage (1.8–3.6V) and VSS to ground.

Add decoupling capacitors (e.g., 0.1 µF) close to VDD pins.

Programming Interface:

Connect SWDIO and SWCLK to a programmer (e.g., ST-Link).

Ensure the programmer's ground is linked to the circuit ground.

Reset Circuit:

Connect a push-button between NRST and ground.

Add a 10 kΩ pull-up resistor between NRST and VDD.

Boot Configuration:

Use BOOT0 and BOOT1 pins to select the boot mode (e.g., flash, system memory).

Configure with pull-up/pull-down resistors.

Clock Source:

Use an external crystal (e.g., 8 MHz) on PH0/OSC_IN and PH1/OSC_OUT or the internal oscillator.

Peripherals:

Connect GPIOs to devices like LEDs, sensors, or modules.

Use communication interfaces (UART, SPI, I2C, etc.) and analog inputs/outputs (ADC/DAC) as needed.

STM32F407ZET6 Development Boards

Development boards simplify the process of working with microcontrollers by providing easy access to pins, power, and other peripherals. There are several popular STM32F407ZET6-based development boards, which are excellent choices for prototyping and experimentation.

The Blue Pill

The Blue Pill is one of the most popular and affordable development boards that use the STM32F407ZET6. It has a compact design, exposing many of the microcontroller's pins, and is often used for prototyping projects in embedded systems.

Price: The Blue Pill is exceptionally affordable, typically costing between $2 and $5, making it an excellent choice for budget-conscious developers.

Programming: The Blue Pill can be programmed using the Arduino IDE, leveraging the familiar interface that many developers are already comfortable with. It uses a bootloader for easy programming via USB, so no additional hardware is required.

Functionality: The Blue Pill provides several GPIO pins, communication interfaces (SPI, I2C, UART), and support for PWM, making it versatile for various types of projects.

Nucleo and Other Boards

For more feature-rich development, the STM32 Nucleo boards offer integrated debugging, easier connection to peripherals, and expanded power options. These boards also support the STM32CubeIDE, which provides a more advanced development environment for professional users. The price of these boards typically ranges from $10 to $30, depending on the model and features.

STM32F407ZET6 and Arduino Projects

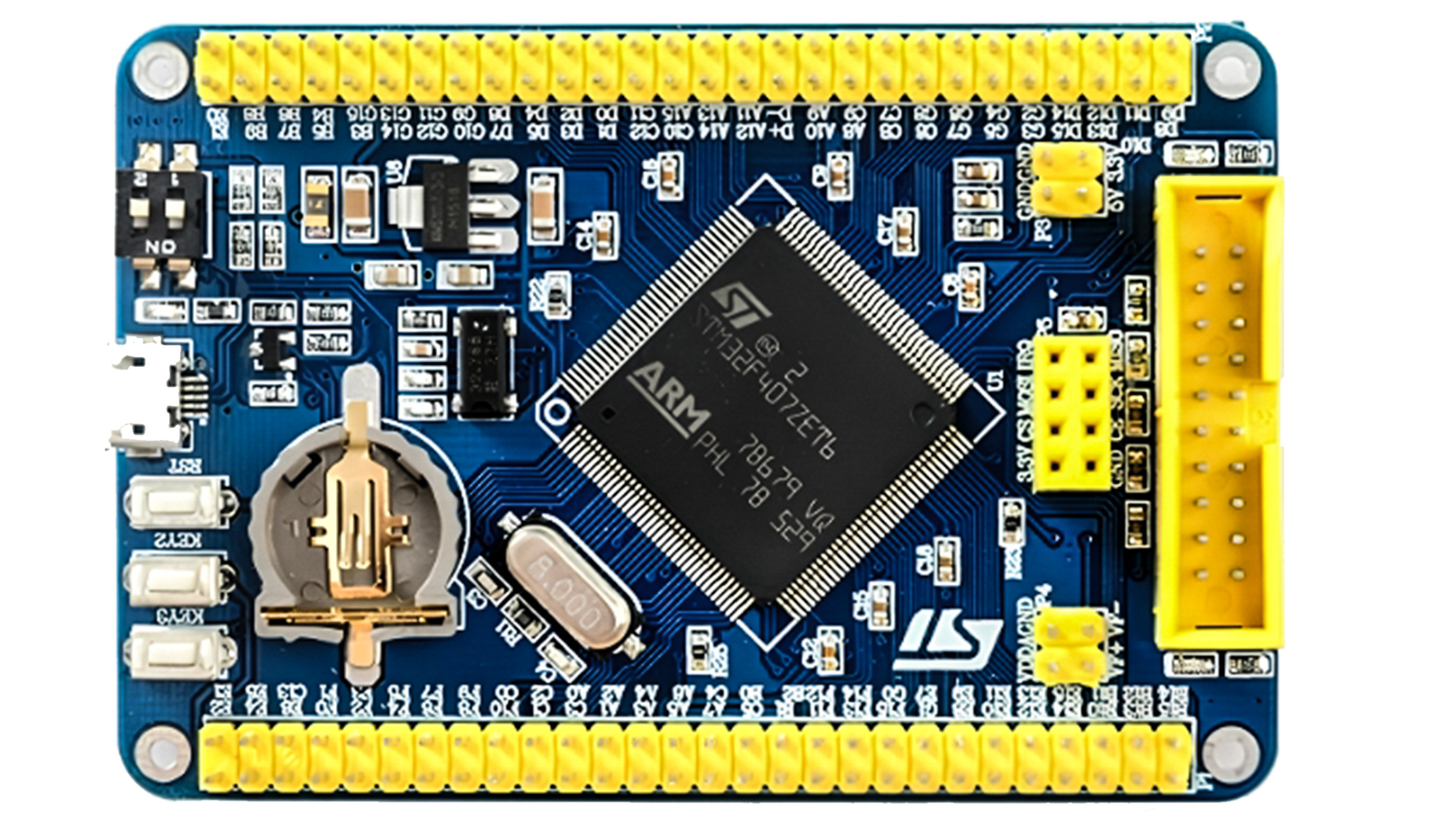

STM32F407ZET6 Arduino

Using the STM32F407ZET6 with the Arduino ecosystem provides an easy way to build and prototype projects with a well-established development environment. The Blue Pill board, for example, is compatible with the Arduino IDE and allows developers to take advantage of Arduino libraries and sketches.

Example Arduino Projects

Robotic Arm Control: Using PWM, SPI, and UART, the STM32F407ZET6 can control a robotic arm with precise movement and feedback mechanisms.

Weather Station: By connecting sensors like temperature and humidity sensors to the STM32F407ZET6, you can create a weather station that collects and displays data on an LCD or transmits it wirelessly.

Audio Processing: The STM32F407ZET6 has an integrated DAC and can be used to generate or process audio signals, making it suitable for projects such as sound effects generation or digital audio processing.

With the Arduino platform, creating projects becomes more accessible, and the STM32F407ZET6's advanced features provide room for expanding your projects as needed.

Programming STM32F407ZET6

Programming the STM32F407ZET6 is straightforward, particularly when using Arduino IDE. The bootloader on most development boards like the Blue Pill makes it easy to upload code via USB. Developers can also use STM32CubeIDE, a comprehensive tool from STMicroelectronics, which provides advanced features such as graphical configuration, debugging, and peripheral initialization.

Common Programming Tools

Arduino IDE: For those familiar with the Arduino ecosystem, programming STM32F407ZET6 is as simple as writing sketches and uploading them via USB.

STM32CubeIDE: A more advanced platform, perfect for professional developers who need a more detailed and structured environment for programming.

ST-Link: This is a common in-circuit debugger and programmer used for more advanced STM32 programming.

TM32F407ZET6 Package and Footprint

TM32F407ZET6 Package

STM32F407ZET6 package

Type: LQFP-144 (Low-profile Quad Flat Package)

Pin Count: 144 pins

Body Dimensions: 22.60 mm x 22.60 mm (with pins)

Pin Pitch: 0.50 mm (distance between adjacent pins)

Pin Length: 1.35 mm (from package body)

Pin Width: 0.35 mm

Core Dimensions: 19.90 mm x 19.90 mm (body without pins)

TM32F407ZET6 Footprint

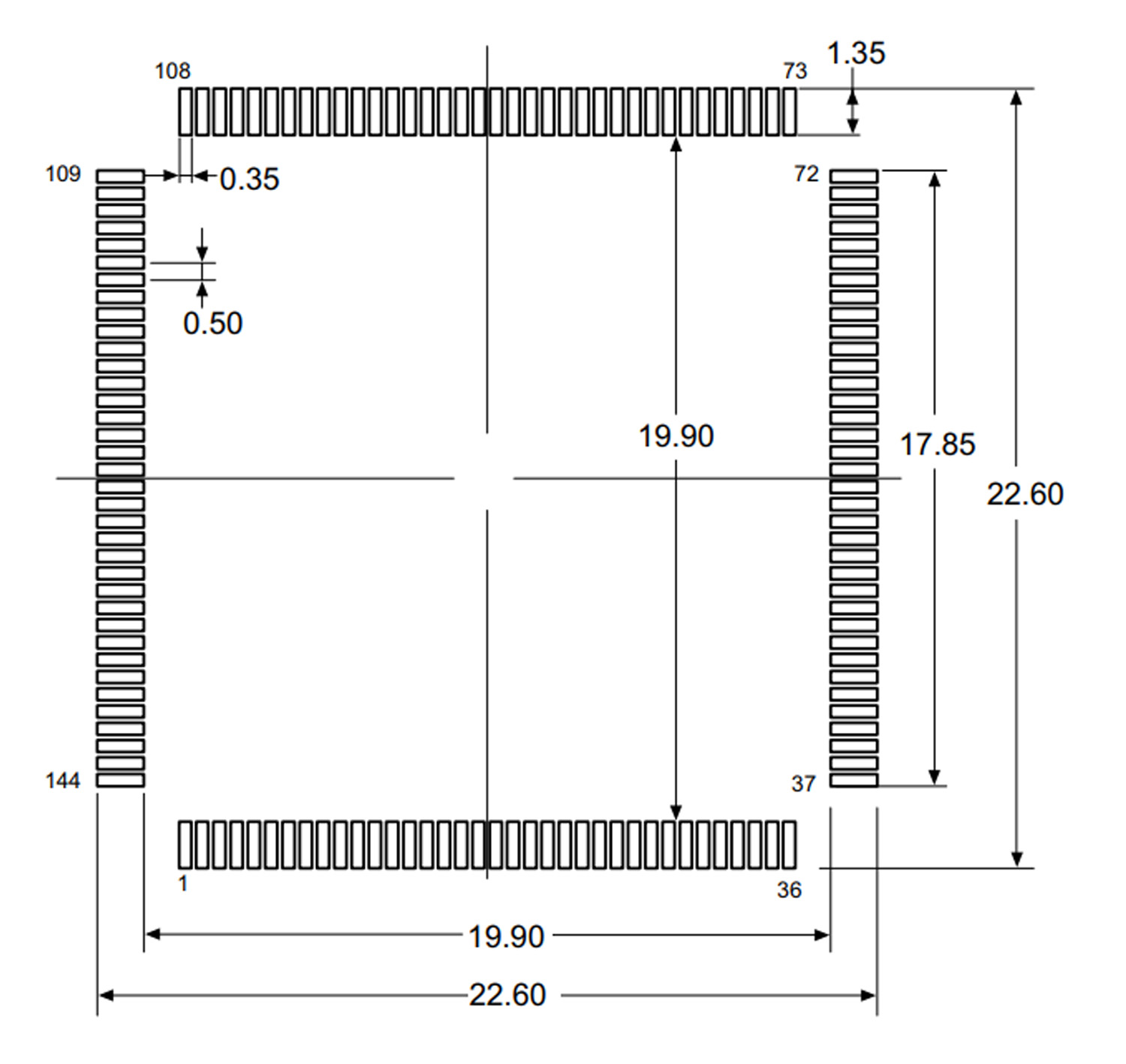

STM32F407ZET6 Footprint

Pad Size: Length 1.6 mm to 1.8 mm (beyond the pin), width as wide as the pin (0.35 mm).

Pad Pitch: Maintain exact 0.50 mm pitch.

Solder Mask: The pad size is slightly larger than the pad size for better soldering. Make sure there is enough clearance between the pads to avoid solder bridging.

Pin 1 Orientation: Clearly mark Pin 1 on the PCB silkscreen.

Thermal Considerations: Use thermal vias under the microcontroller for heat dissipation if necessary.

Conclusion

The STM32F407ZET6 is a powerful microcontroller offering a balance of performance, ease of use, and extensive peripheral support. Ideal for projects like robotics, weather stations, and audio processing, it caters to both hobbyists and professionals. Beginners can start with the affordable Blue Pill development board, while advanced users can design custom circuits to leverage its full potential. For successful development, consult the datasheet, schematic, and pinout for detailed guidance.

Frequently Asked Questions

Price of STM32F407ZET6?

Around $10–$20 for the microcontroller; $2–$30 for development boards.

Can STM32F407ZET6 be used for real-time applications?

Yes, it's great for real-time tasks with low latency and high-speed processing.

Does STM32F407ZET6 support USB?

Yes, it supports USB 2.0, both device and host modes.

Does STM32F407ZET6 have an FPU?

Yes, it has a floating-point unit (FPU) for efficient math processing.

Does STM32F407ZET6 have built-in Ethernet support?

Yes, it has an Ethernet MAC interface for networking applications.
