STMicroelectronics STM32F405ZGT7

Part No.:: STM32F405ZGT7

Manufacturer:: STMicroelectronics

Package:: 144-LQFP

Datasheet:: STM32F405ZGT7.pdf

Description:: IC MCU 32BIT 1MB FLASH 144LQFP

In Stock:: 3874

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F405ZGT7 Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
STM32F4
RoHS:
RoHS
Speed:
168MHz
RAM Size:
192K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
114
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 24x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
1MB (1M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 105°C (TA)

STM32F405ZGT7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F405ZGT7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F405ZGT7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F405ZGT7 information

Views：

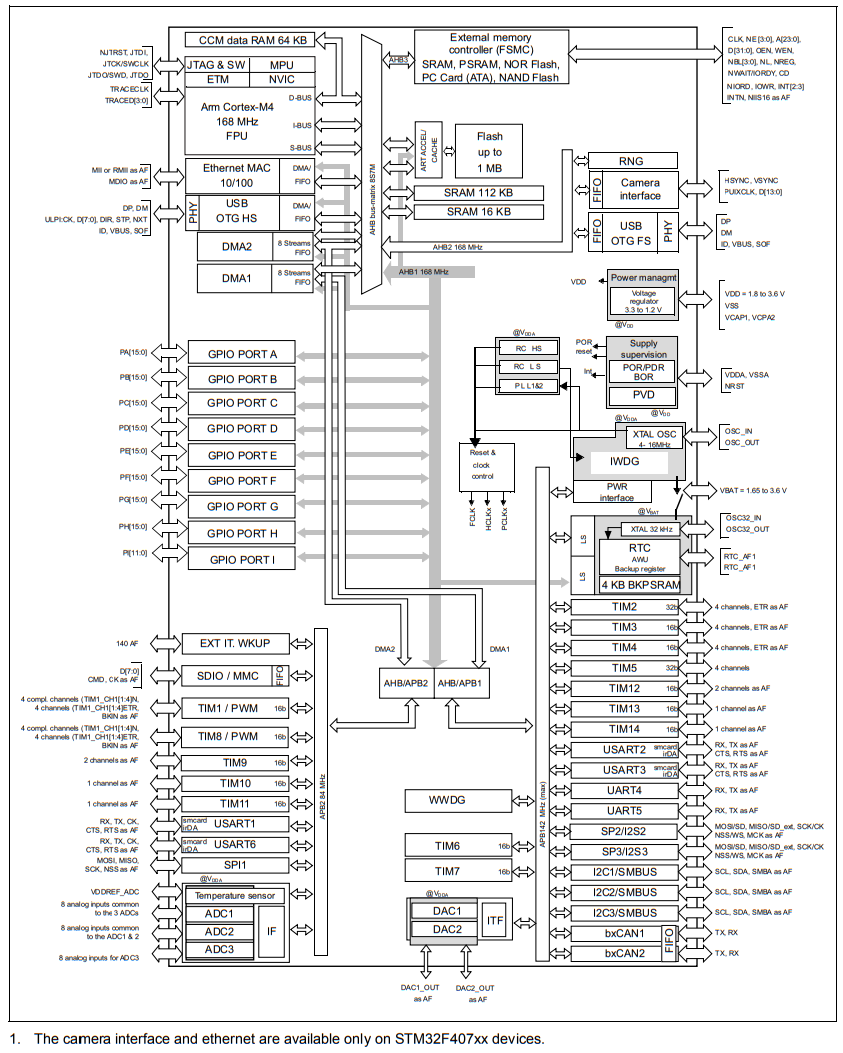

STM32F405ZGT7 Typical application Circuitry

STMicroelectronics' STM32F405ZGT7 is a sophisticated microcontroller, belonging to the STM32 F4 series, which is built on the high-performance ARM® Cortex®-M4 32-bit RISC core running at a frequency of up to 168 MHz.

Highlights of Features

The STM32F405ZGT7 demonstrates a number of exceptional qualities, including:

- It makes use of the Cortex®-M4 core, which has a Floating Point Unit (FPU) capable of running at up to 168 MHz.

- It provides a generous memory with 1 MB of Flash and 192+4 KB of SRAM.

- For connectivity, it furnishes I2C, SPI, USART, and USB 2.0 full-speed interfaces.

- The STM32F405ZGT7 also carries 3×12-bit, 2.4 MSPS ADCs, 2×12-bit D/A converters.

- A real-time clock and backup register capability are embedded.

- It also incorporates cutting-edge peripherals appropriate for sophisticated applications like motor control and power conversion.

Application Areas

The STM32F405ZGT7 is used in a wide array of applications such as intricate motor controllers, power management systems, real-time tracking solutions, and sensor hubs. In this instance, we will focus on the application of the STM32F405ZGT7 in a drone flight controller.

Circuit Design

Suppose we want to design a drone flight controller using the STM32F405ZGT7:

Power Provision: Connect the power supply to VDD pins (Pins 9, 24) at 3.3V and ground the VSS pins (Pins 8, 23). Remember to include a 100nF decoupling capacitor between these pins for stability.

Gyroscopic Sensor Connection: We can use an MPU6050 gyroscope and link it to the I2C1 interface. The sensor's SDA and SCL pins are connected to PB7 (Pin 26) and PB6 (Pin 25) of the STM32F405ZGT7, respectively.

Radio Transmission: For remote control, use a 2.4 GHz Radio Transmitter, such as the NRF24L01. It can be connected to the SPI interface, where SPI1_MOSI (PA7, Pin 15), SPI1_MISO (PA6, Pin 14), and SPI1_SCK (PA5, Pin 13) of the STM32F405ZGT7 match the MOSI, MISO, and SCK of the NRF24L01, respectively.

Motor Control: For quadcopter control, four motors are used. They can be managed via the Timer1 PWM outputs CH1-CH4 connected to PA8 (Pin 18), PA9 (Pin 28), PA10 (Pin 29), and PA11 (Pin 31) of the STM32F405ZGT7.

Design Aspects to Consider

Certain crucial aspects need attention when creating a design with the STM32F405ZGT7: Power Supply Stability:

Ensure power stability by placing decoupling capacitors as near as possible to the VDD and VSS pins.

Precise Timing: Install an 8 MHz crystal between the PH0/OSC_IN and PH1/OSC_OUT pins (Pins 5 and 6) for accurate timing.

Protection Measures: Implement suitable protection measures including ESD and EMC protection.

Heat Management: The STM32F405ZGT7 may produce heat in high-speed applications; thus, consider sufficient heat dissipation measures.

To conclude, the STM32F405ZGT7 is a potent and versatile microcontroller, ideal for many high-performance applications.
