STMicroelectronics STM32F401RET6

Part No.:: STM32F401RET6

Manufacturer:: STMicroelectronics

Package:: 64-LQFP

Datasheet:: STM32F401RET6.pdf

Description:: IC MCU 32BIT 512KB FLASH 64LQFP

In Stock:: 3758

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F401RET6 Specifications

Package/Case:
64-LQFP
Packaging:
Tray
Series:
STM32F4
RoHS:
RoHS
Speed:
84MHz
RAM Size:
96K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
50
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 16x12b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F401RET6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F401RET6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F401RET6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F401RET6 information

Views：

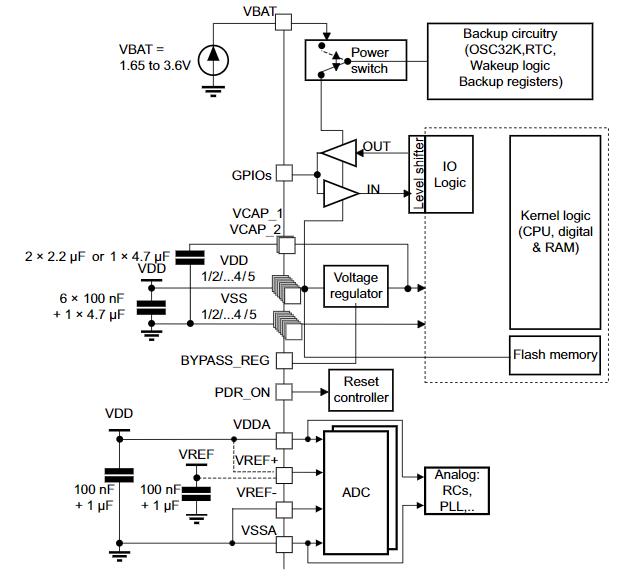

STM32F401RET6 Typical application Circuitry Schematics

The STM32F401RET6 microcontroller is part of the STM32 family manufactured by STMicroelectronics, specifically within the STM32F4 series. These are based on the high-performance ARM Cortex-M4 processor and are known for their comprehensive feature set and versatility, which can be adapted across a multitude of application domains including industrial, medical, and consumer applications.

Naming Convention Breakdown: - STM32: Indicates STMicroelectronics' 32-bit microcontroller. - F4: Specifies the series, which is the STM32F401RET6 series. - 01: Model number within the F4 series. - RE: Denotes 512 KB of Flash memory. - T6: Likely indicates an LQFP64 package. Key Features: - Core: ARM Cortex-M4, with DSP (Digital Signal Processing) and FPU (Floating Point Unit) capabilities. - Clock: Up to 84 MHz. - Memory: 512 KB Flash and additional RAM (exact size available in the datasheet). - I/O Pins: Versatile I/O pins supporting various peripheral functionalities. - Peripherals: Multiple communication interfaces like SPI, UART, I2C, etc., as well as analog peripherals like ADCs and DACs. - Supply Voltage: Typically 2.0 V to 3.6 V. - Package: LQFP64. Basic Circuit Setup:

1. Power Supply: - Use a 3.3V voltage regulator. – Decoupling capacitors must to be positioned close to the power pins.

2. Clock Circuit: - Connect an external 8 MHz crystal oscillator to the oscillator pins and consider load capacitors as specified in the datasheet.

3. Reset Circuit: - A reset button connected to the NRST pin, with a pull-up resistor.

4. Programming/Debugging: - Enable access to SWD pins (SWCLK and SWDIO).

5. GPIO: - LEDs (with current-limiting resistors) and buttons (with pull-up/pull-down resistors) as needed for your application.

6. Communication: - Pull-up resistors for I2C bus lines. - Proper interfacing hardware for communication peripherals like UART, SPI, etc.

7. Analog Inputs: - Stable VREF for ADCs and adequate filtering on analog lines.

8. Protection: - Reverse polarity protection on the power input and ESD protection on the I/O lines.

Design Notes: - PCB Layout: Ensure that high-speed traces are kept short and impedance controlled, especially for the oscillator and reset lines. - Thermal Management: Implement proper thermal management to prevent overheating. - EMC: Careful layout and filtering to manage EMC, particularly for the analog section. - Regulatory Compliance: Make sure the design adheres to applicable standards. Applications: - Industrial Control - Motor Control - Sensing Applications - User Interfaces Final Remarks: The STM32F401RET6 is a microcontroller capable of managing complex and performance-demanding applications. For complete and detailed information, always refer to the most recent edition of the datasheet and reference manual offered by STMicroelectronics. Additionally, ensure thorough testing and validation of your design under all possible operating conditions.
