STMicroelectronics STM32F401CCU6

Part No.:: STM32F401CCU6

Manufacturer:: STMicroelectronics

Package:: 48-UFQFN Exposed Pad

Datasheet:: STM32F401CCU6.pdf

Description:: IC MCU 32BIT 256KB FLSH 48UFQFPN

In Stock:: 2982

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F401CCU6 Specifications

Package/Case:
48-UFQFN Exposed Pad
Packaging:
Tray
Series:
STM32F4
RoHS:
RoHS
Speed:
84MHz
RAM Size:
64K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
36
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 10x12b
Oscillator Type:
Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F401CCU6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F401CCU6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F401CCU6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F401CCU6 information

Views：

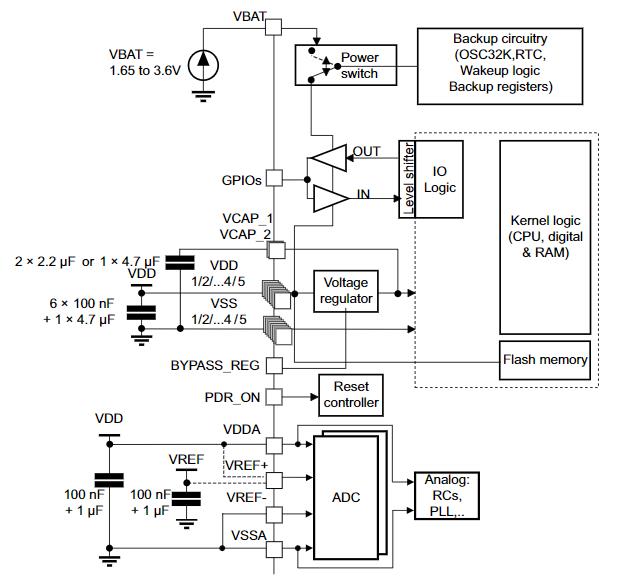

STM32F401CCU6 Typical application Circuitry Schematics

The STM32F401CCU6 microcontroller is part of the STM32 family from STMicroelectronics, designed on the ARM Cortex-M4 core. This family of microcontrollers is known for their high performance and are used in a variety of applications due to their rich feature set.

Naming Convention: - STM32: Branding and indicates it's an STMicroelectronics 32-bit MCU. - F4: Indicates that it belongs to the STM32F401CCU6 series. - 01: The model number within the F4 series. - CC: Signifying the Flash memory size (256 KB in this case). - U6: Package type and temperature range. U6 typically indicates a UFQFPN48 package. Key Features: - Core: ARM Cortex-M4 with FPU and DSP instructions. - Clock Speed: Up to 84 MHz. - Memory: 256 KB of Flash memory and additional RAM (specific size referable in the datasheet). - I/O Pins: Numerous pins with multiplexed functionalities. - Communication Peripherals: UART, I2C, SPI, etc. - Analog Peripherals: ADCs and DACs. - Supply Voltage: Typically between 2.0 V and 3.6 V. - Package: UFQFPN48. Basic Circuit Elements:

1. Power Supply: - A 3.3V voltage regulator with suitable decoupling capacitors at VDD/VSS pins for stability.

2. Clock Circuit: - Attach an 8 MHz external crystal oscillator along with associated load capacitors for stable operation.

3. Reset Mechanism: - Implement a push button for manual reset connected to the NRST pin and include a pull-up resistor for stability.

4. Programming and Debugging: - Access to SWD pins (SWCLK and SWDIO) for programming/debugging should be provided.

5. I/O Configuration: - Integrate LEDs with current-limiting resistors and pull-up or pull-down resistors for buttons, ensuring they are connected with consideration for power consumption and noise.

6. Communication Interfaces: - Appropriate pull-up resistors for I2C communication lines, and ensure voltage compatibility and logical level conversion where required for UART or other communication interfaces.

7. Analog Setup: - If utilizing ADC/DAC peripherals, ensure stable VREF, and implement appropriate filtering on input/output analog lines.

8. Peripheral Integration: - Ensure peripherals are logically and electrically compatible with MCU pins and supply levels.

9. Protection: - Implement ESD protection on I/O pins and consider reverse polarity protection on the power supply input.

10. Decoupling: - Locate capacitors near power pins to handle potential power fluctuation and noise.

Design Considerations: - PCB Layout: Ensure minimized trace lengths, especially for high-speed signals, and maintain a solid ground plane. - Thermal Management: Employ methods for thermal management to ensure the MCU operates within specified temperature ranges. - Electromagnetic Compatibility (EMC): Design considering EMC aspects to avoid unwanted electromagnetic interference in sensitive analog sections. - Regulatory Compliance: Ensure the design is in compliance with relevant industrial and regulatory standards. Application Examples: - Motion Control: Employ timers and PWM channels for motor control applications. - Sensing and Measurement: Utilize integrated ADCs for data acquisition in sensing applications. Note: The circuit and application insights provided are generalized. Thoroughly consult the STM32F401CCU6 datasheet and reference manual for accurate and detailed technical specifications. Always validate your design through simulations and prototyping under various conditions and ensure firmware development considers power management and real-time system constraints.
