Name: STM32F303VCT6
Brand: STMicroelectronics
SKU: STM32F303VCT6
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STM32F303VCT6

Part No.:: STM32F303VCT6

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: STM32F303VCT6.pdf

Description:: IC MCU 32BIT 256KB FLASH 100LQFP

In Stock:: 3661

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F303VCT6 Specifications

Package/Case:
100-LQFP
Packaging:
Tray
Series:
STM32F3
RoHS:
RoHS
Speed:
72MHz
RAM Size:
40K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
DMA, I²S, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
87
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 39x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F303VCT6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F303VCT6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F303VCT6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F303VCT6 information

Views：

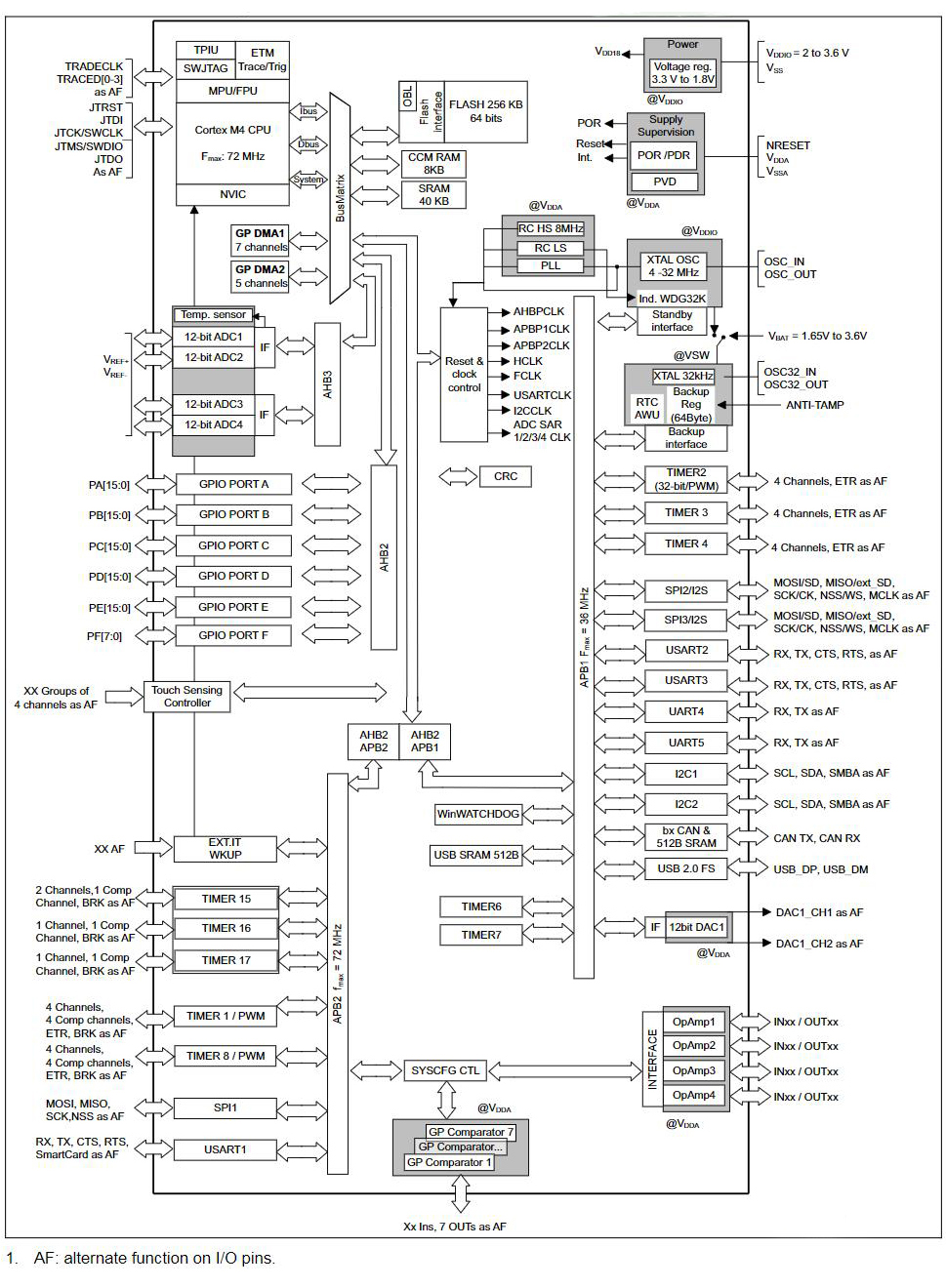

STM32F303VCT6 Typical application Circuitry

STM32F303VCT6

The STM32F303VCT6 is a high-performance microcontroller offered by Microelectronics. It is powered by an ARM Cortex-M4 processor and is equipped with a floating point unit (FPU), high-speed integrated memory, and a wide variety of improved I/Os and peripherals.

1. Power Supply: STM32F303VCT6 operates at a supply voltage of 2.0 to 3.6 volts. Decoupling capacitors should be added between VDD and VSS to maintain stability.

2. I/O Ports: This microcontroller has numerous I/O ports that can be programmed as input, output, or used for peripheral functions. The configuration of these pins varies depending on the intended application.

3. Internal Oscillator: The STM32F303VCT6 has an internal oscillator, but an external crystal can also be connected to the OSC_IN and OSC_OUT pins for improved accuracy.

4. Boot Configuration: BOOT0 and BOOT1 pins are used to configure the boot mode. Depending on the status of these pins during reset, the chip can boot from the system memory, embedded SRAM, or the main flash memory.

5. Peripherals: The STM32F303VCT6 is packed with an array of peripheral options including PART, I2C, SPI, CAN, GPIS, and ADC among others. These can be mapped to the microcontroller I/O pins based on the application requirements.

6. Debugging: The device includes an embedded debug module (Serial Wire/JTAG) that aids in software development and testing.

7. Reset: The NRST pin is used to reset the microcontroller externally.

8. Analog Inputs: The STM32F303VCT6 includes ADC's for analog signal measurement. Care should be taken with analog inputs to ensure signal integrity and accuracy.

9. Thermal Considerations: Be sure to consider thermal management in your design, as the device can generate significant heat depending on usage.

It's important to note that the specific usage of the STM32F303VCT6 in an application circuit will depend on the specifics of your design. Always refer to the detailed datasheet provided by Microelectronics and consider your application requirements when designing the circuit.
