Name: STM32F207VET6
Brand: STMicroelectronics
SKU: STM32F207VET6
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STM32F207VET6

Part No.:: STM32F207VET6

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: STM32F207VET6.pdf

Description:: IC MCU 32BIT 512KB FLASH 100LQFP

In Stock:: 3316

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F207VET6 Specifications

Package/Case:
100-LQFP
Packaging:
Tray
Series:
STM32F2
RoHS:
RoHS
Speed:
120MHz
RAM Size:
132K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Connectivity:
CANbus, Ethernet, I²C, IrDA, LINbus, Memory Card, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
82
Core Processor:
ARM® Cortex®-M3
Data Converters:
A/D 16x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F207VET6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F207VET6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F207VET6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F207VET6 information

Views：

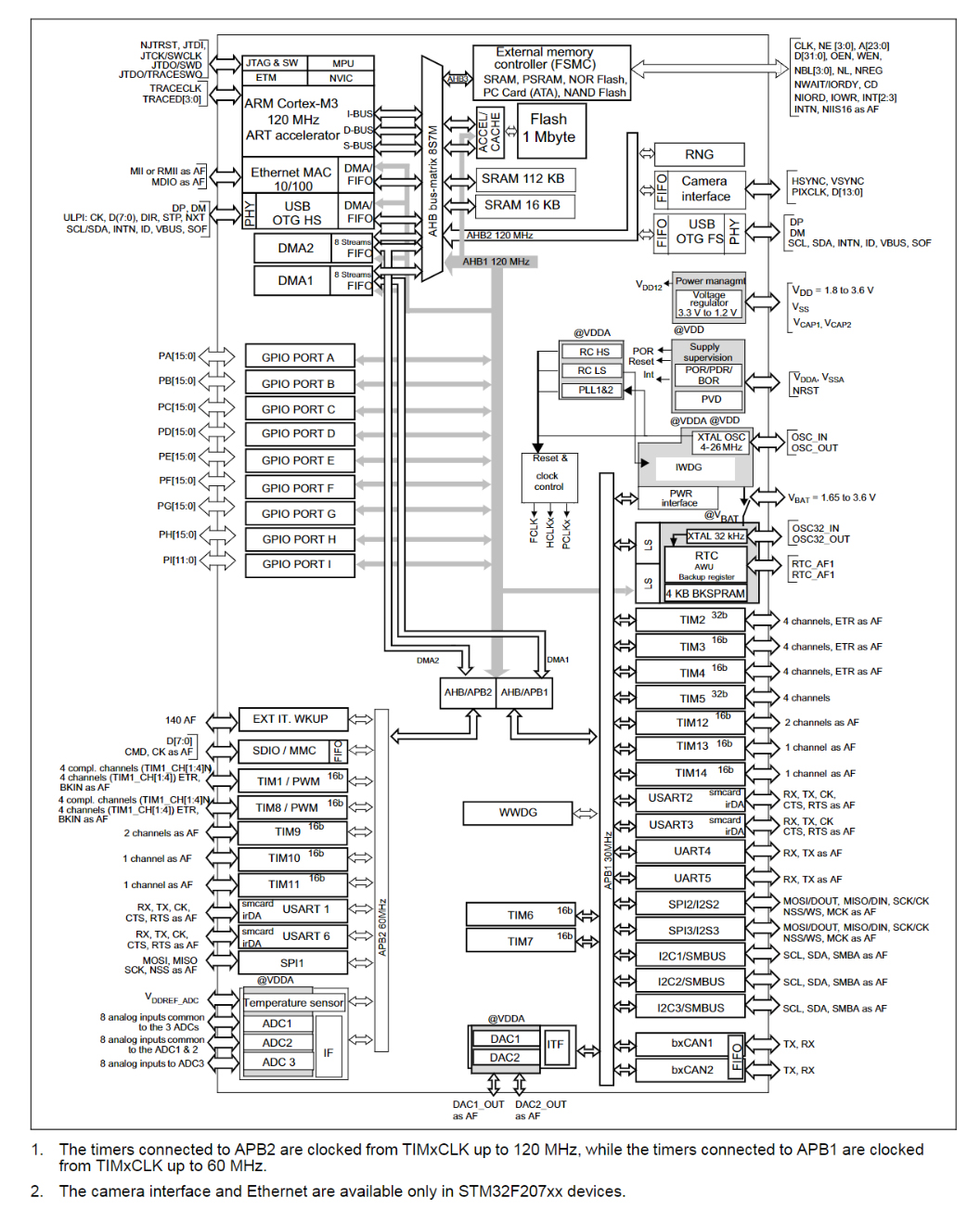

STM32F207VET6 Typical application Circuitry Schematics

The STM32F207VET6 microcontroller from STMicroelectronics is a member of the high-performance ARM Cortex-M3 MCU family. This microcontroller is suitable for a broad range of applications due to its real-time capabilities, low-power operation, digital signal processing, and the effective combination of communications peripherals. When designing an application circuit for STM32F207VET6, certain key connections are essential:

1. Power Supply: Power is supplied to the STM32F207VET6 through VDD pins, with the supply voltage ranging from 1.8V to 3.6V. Bypass capacitors are generally connected close to these power supply pins to maintain stability in operation.
2. Ground Connections: Your system's ground should be linked to each and every VSS pin.
3. Boot Configuration: The boot mode of STM32F207VET6 can be set using BOOT0 and BOOT1 pins. Depending on the specific boot mode required, these pins should be tied to VDD or GND.
4. Reset Pin: The NRST pin acts as a reset input. An external reset button can be connected to this pin. A pull-up resistor, generally around 10kΩ, is commonly connected to the NRST pin.
5. Oscillator Circuit: The external crystal or resonator is connected to the OSC_IN and OSC_OUT pins for accurate system timing. Additional load capacitors are generally connected to these pins and ground, with their values depending on the specific crystal being used.
6. I/O Pins: STM32F207VET6 offers various I/O pins that can be connected to other external peripherals like LEDs, buttons, displays, or other digital and analog modules as required by your application.
7. Programming and Debugging Interface: For programming and debugging, you would use either the JTAG or SWD interface of the STM32F207VET6. The JTAG interface includes TMS, TCK, TDI, TDO, and nTRST pins, whereas the SWD interface uses PA13 (SWDIO) and PA14 (SWCLK).
Remember, this is a generalized connection guide for STM32F207VET6. You could require additional connections depending on your particular application and specifications. Always refer to the STM32F207VET6 datasheet and reference manual for precise information.
