STMicroelectronics STM32F107VCT6

The STM32F107VCT6 microcontroller is a versatile and powerful chip in the STM32 family, widely used in embedded systems, electronics development, and IoT applications. It is based on the ARM Cortex-M3 architecture, which is known for its efficiency and computational power. In this article, we will explore the STM32F107VCT6 pinout, development boards, and how it can be used in Arduino-based projects. We will also touch on programming considerations, datasheets, and more.

Understanding the STM32F107VCT6 Microcontroller

The STM32F107VCT6 is a 32-bit microcontroller with a high processing capability and rich peripheral set. Its robust performance makes it suitable for demanding applications that require real-time processing. Let's first dive into the STM32F107VCT6 pinout, which gives us an overview of the connections and available I/O for various projects.

STM32F107VCT6 Pinout

STM32F107VCT6 Pinout

The pinout of the STM32F107VCT6 includes several GPIO (General Purpose Input/Output) pins, digital and analog peripherals, and communication interfaces such as SPI, I2C, UART, and CAN. Below are some of the key features of the pinout:

For a complete understanding, you can refer to the reference manual or datasheet, where the exact pinout diagram and specifications are detailed.

Circuit Design and Schematics

Understanding the key components and their connections is essential for designing circuits with the STM32F107VCT6 microcontroller. Proper power management, I/O interfacing, and analog support are crucial for reliable operation.

STM32F107VCT6 Typical Application Circuitry Schematics

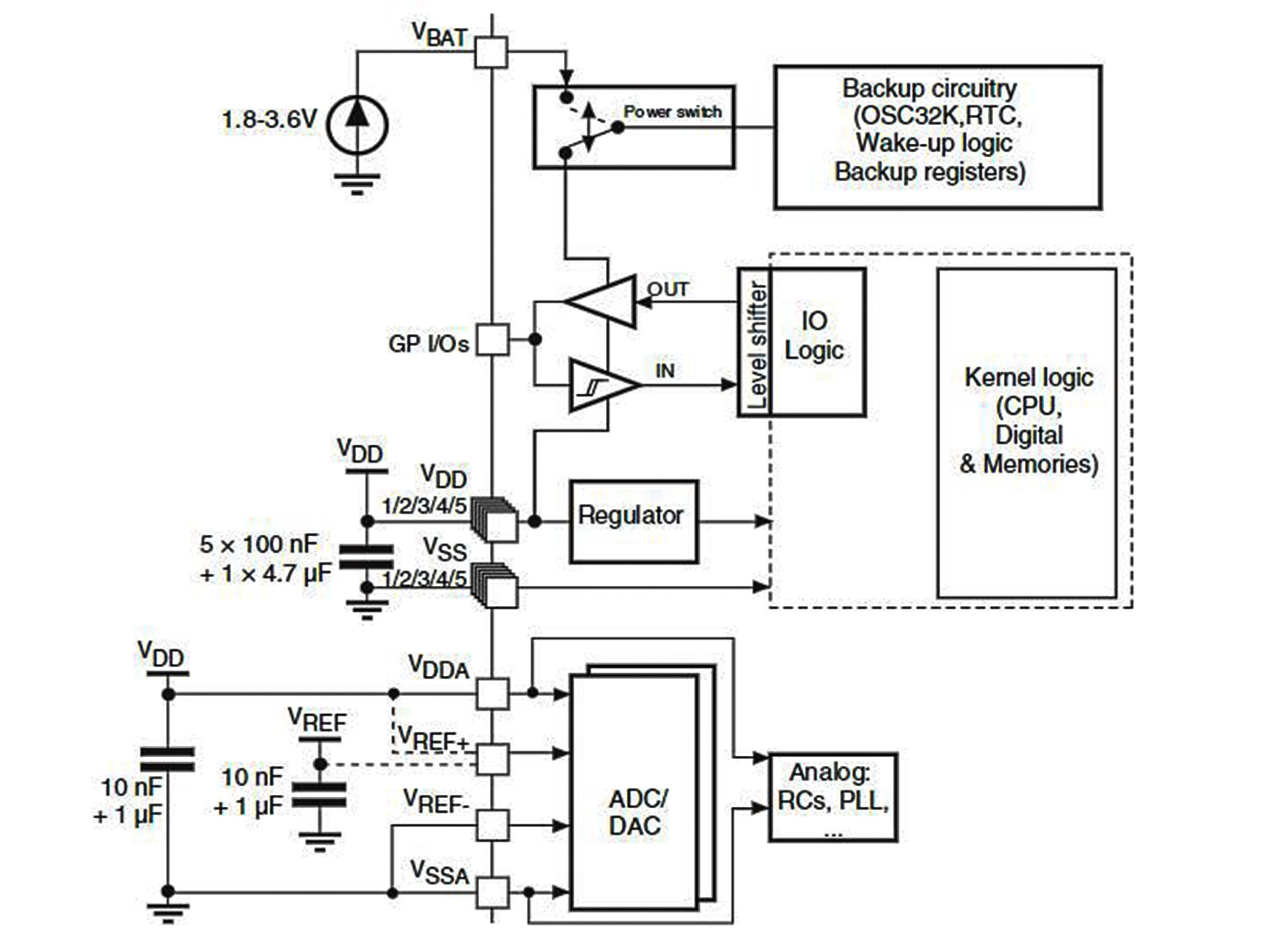

STM32F107VCT6 Typical application Circuitry Schematics

The schematic includes:

Power Supply: A voltage regulator provides stable 3.3V.

Backup Circuit: V_BAT connects to a battery to maintain RTC and backup registers.

I/O Logic: GP I/Os are used for communication, with a level shifter for voltage compatibility.

Analog: VREF supplies a reference voltage for ADC/DAC.

Capacitors: Decoupling capacitors reduce noise and stabilize power.

Development Boards for STM32F107VCT6

When developing with the STM32F107VCT6, having a good development board is crucial for rapid prototyping and testing. Several development boards are designed specifically to work with STM32F107VCT6, and they provide a convenient interface for hardware and software debugging.

STM32F107VCT6 Blue Pill Development Board

One of the most popular development boards featuring the STM32F107VCT6 microcontroller is the Blue Pill. This compact board is affordable and provides easy access to the microcontroller's GPIO pins, communication interfaces, and other peripherals. The Blue Pill board is a great starting point for developers new to STM32 or those looking for a cost-effective solution for their embedded systems projects.

The Blue Pill board includes:

USB connectivity for programming and serial communication.

Easy access to STM32F107VCT6 pins for external components and sensors.

Support for the STM32 bootloader, which allows programming the chip without a separate programmer.

Other STM32 Development Boards

In addition to the Blue Pill, there are several other development boards that feature the STM32F107VCT6 or similar STM32 microcontrollers. These boards vary in size, price, and features, but they all offer an easy way to get started with STM32 development.

Some boards are equipped with additional features like LCD screens, touch interfaces, or motor drivers, making them suitable for more advanced projects.

Programming the STM32F107VCT6

Programming the STM32F107VCT6 can be done using a variety of tools and software. The most common method is using the STM32CubeIDE or other compatible development environments. These IDEs provide a complete toolset for writing, debugging, and deploying code to the STM32F107VCT6.

The STM32 microcontroller can be programmed using C or C++, and developers can use a variety of libraries and peripherals that are included in the STM32CubeMX package. The STM32CubeMX tool can generate the initialization code for the microcontroller based on the selected configuration, making it easier to get started with programming.

Bootloader and Uploading Code

The STM32F107VCT6 supports a bootloader, allowing developers to upload code via the USB port. This is particularly useful for rapid development and testing, as it eliminates the need for a separate hardware programmer. To use the bootloader, the user needs to configure the microcontroller to enter the bootloader mode, and then they can use software tools such as STM32CubeProgrammer to upload the firmware.

STM32F107VCT6 in Arduino Projects

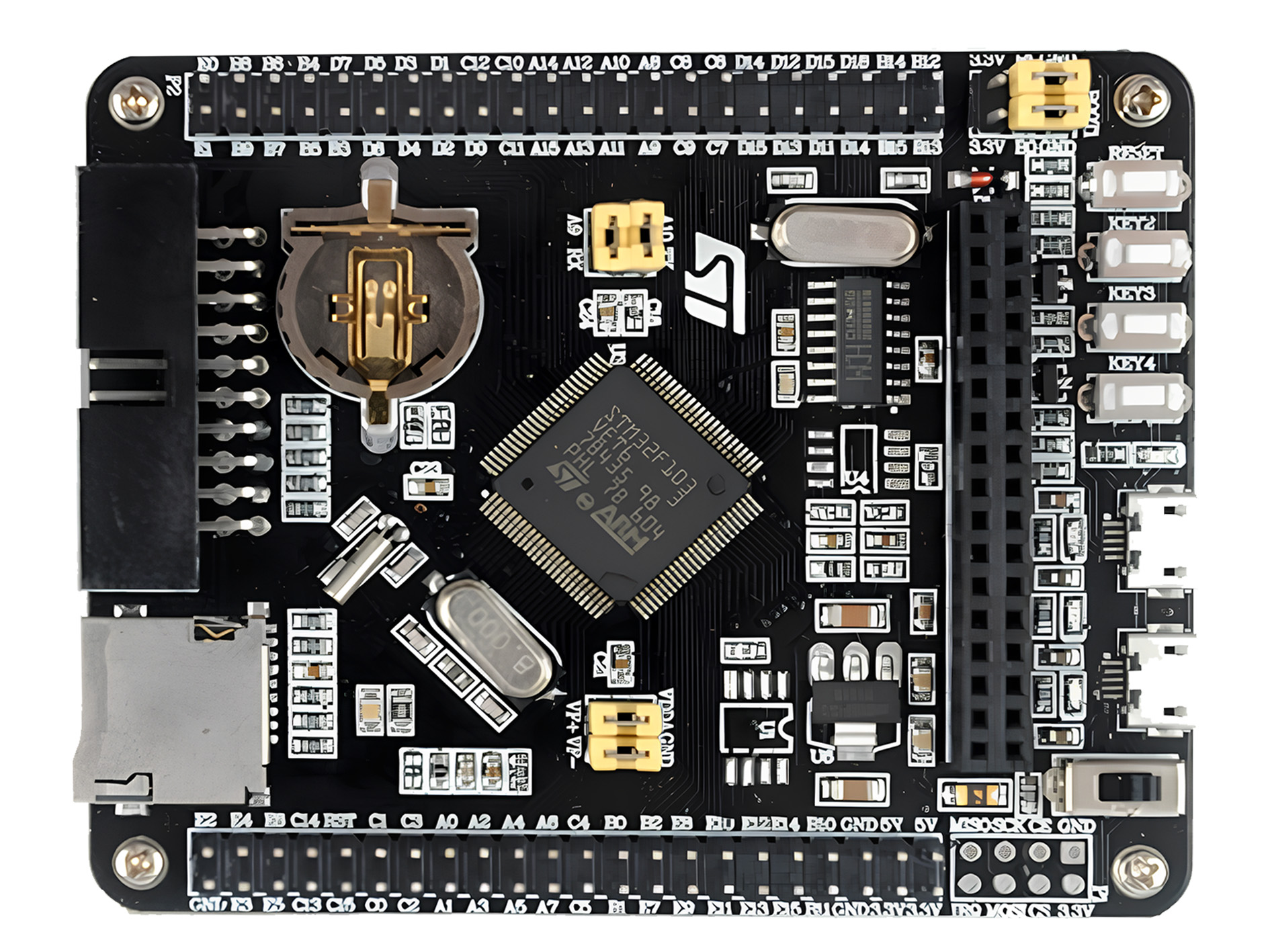

STM32F107VCT6 Arduino

Although STM32 microcontrollers are not natively supported by the Arduino IDE, there is a way to integrate the STM32F107VCT6 into Arduino projects. Using the STM32duino project, developers can program STM32 boards using the familiar Arduino IDE.

Setting Up the Arduino IDE for STM32

To begin using STM32F107VCT6 with Arduino, the first step is to install the STM32duino support package in the Arduino IDE. Once set up, you can write sketches as you would for any other Arduino-compatible board.

Key steps include:

Install STM32duino: Add the STM32duino board manager URL in the Arduino IDE.

Select the Board: Choose STM32F107VCT6 or another compatible STM32 board from the board list.

Write Code: Write your Arduino sketch in the Arduino IDE.

Upload Code: Use the USB connection or an external programmer to upload the code to the STM32 board.

Example Arduino Projects

Once you have set up your STM32 development environment, you can start building various projects such as:

Sensor Interfacing: Use the ADC and communication interfaces (SPI, I2C) to read data from sensors and display it on a connected LCD or send it to a PC.

LED Blink: Implement a simple LED blinking project to test basic functionality and pin control.

Motor Control: Use PWM pins to control the speed and direction of motors for robotics applications.

Wireless Communication: Leverage communication interfaces such as UART, SPI, or I2C to interface with other devices, such as Wi-Fi or Bluetooth modules, to create wireless-enabled projects.

STM32F107VCT6 Package and Footprint

Package (LQFP-100)

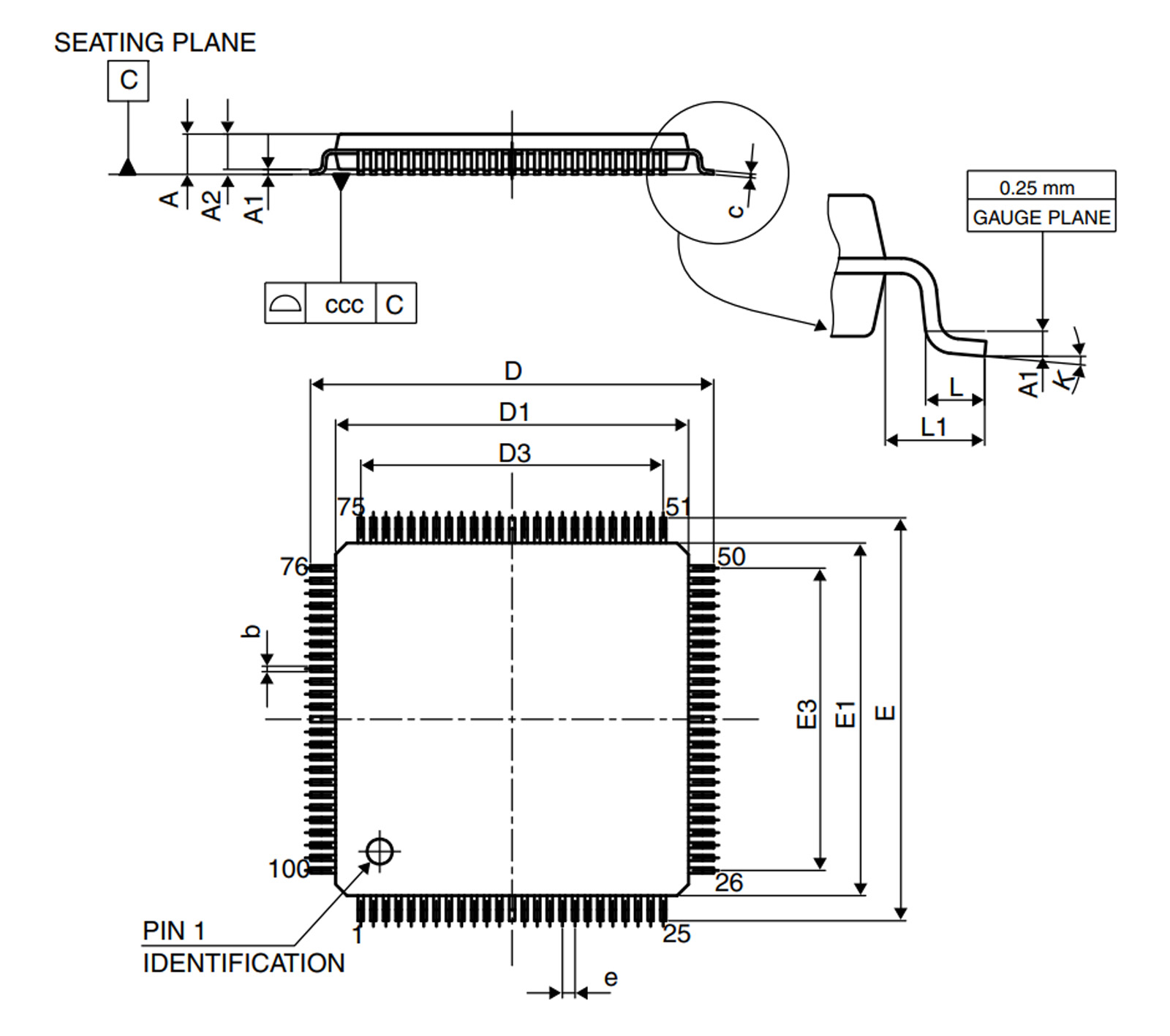

STM32F107VCT6 package

Pin Count: 100

Package Size: 14 mm x 14 mm

Pin Pitch: 0.5 mm

Height: 1.4 mm

Footprint

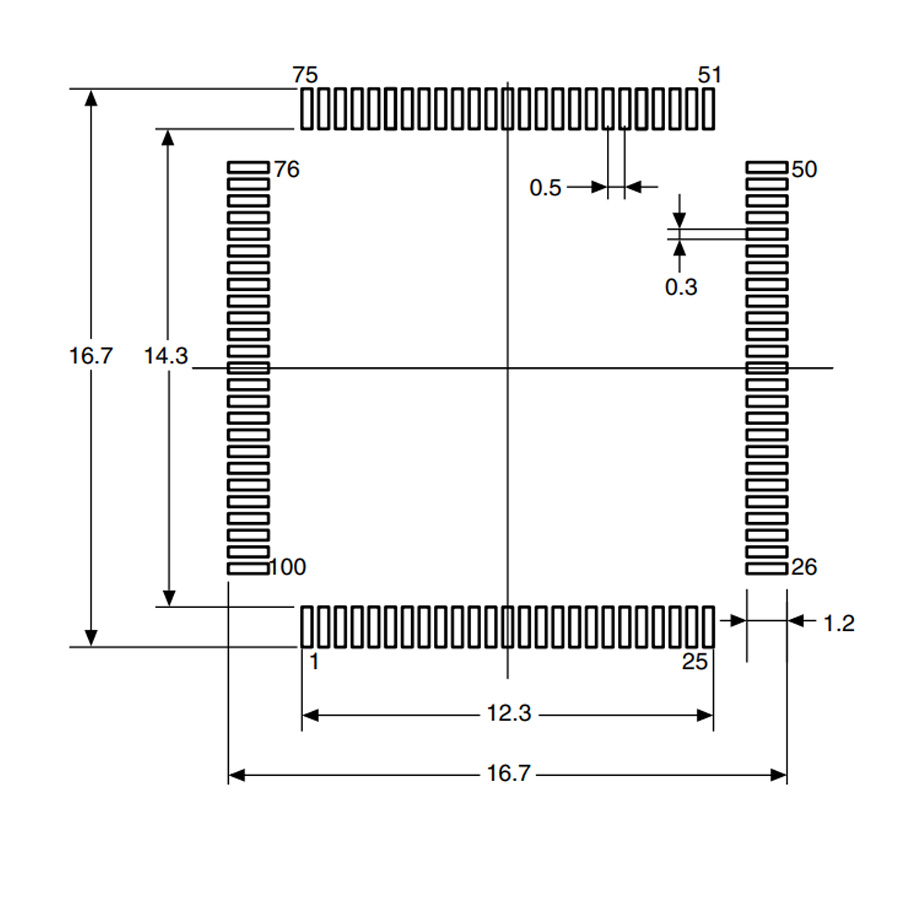

STM32F107VCT6 footprint

Pad Size: 0.3 mm x 1.2 mm

Pad Pitch: 0.5 mm

Footprint Dimensions: 75 mm x 76 mm

Sum up

The STM32F107VCT6 microcontroller offers a rich set of features for a wide range of embedded systems applications. Whether you're using it with a Blue Pill development board or another STM32-compatible platform, it is a versatile chip that can handle complex tasks in IoT, robotics, and sensor-based projects. By integrating STM32 with the Arduino IDE, developers can easily leverage the power of this microcontroller in a familiar development environment. Don't forget to consult the datasheet, schematic, and reference manual for detailed technical information to ensure that your projects are designed and implemented effectively.

Sum up

What is the price of STM32F107VCT6?

Typically priced between $5 to $10 USD, depending on the supplier and quantity.

Where can I find the STM32F107VCT6 datasheet?

You can find the STM32F107VCT6 datasheet on our official website

Why do I need the reference manual?

It provides in-depth info on features, pinout, and programming for hardware and software development.

How does STM32F107VCT6 compare in price to other STM32 models?

It is mid-range; cheaper models like STM32F030 cost less, and higher-end ones like STM32F407 are more expensive.
