STMicroelectronics STM32F105RBT6

The STM32F105RBT6 is a popular microcontroller from STMicroelectronics, known for its performance, versatility, and cost-effectiveness. It is part of the STM32 family, which caters to a wide range of applications, from industrial control systems to consumer electronics. This article explores the pinout, development boards, and Arduino projects associated with the STM32F105RBT6, while diving into its technical aspects and practical applications.

Table of Contents

• Overview of STM32F105RBT6
• Pinout of STM32F105RBT6
• Designing Circuits with STM32F105RBT6
• Development Boards Featuring STM32F105RBT6
• Arduino Projects with STM32F105RBT6
• Programming and Bootloader for STM32F105RBT6
• STM32F105RBT6 Package and Footprint
• Sum up
• Frequently Asked Questions

Overview of STM32F105RBT6

The STM32F105RBT6 is built on the ARM Cortex-M3 architecture, offering a 32-bit core optimized for high-performance and low-power applications. It supports up to 72 MHz clock speed and integrates rich peripherals, making it a go-to choice for many engineers and hobbyists.

Key Feature

• Flash memory: 128 KB
• RAM: 20 KB
• GPIO pins: 51
• Packages: LQFP64 (64-pin layout)

For more technical details, refer to the datasheet provided by STMicroelectronics. The datasheet provides specifications, electrical characteristics, and detailed functional descriptions.

Pinout of STM32F105RBT6

The pinout of the STM32F105RBT6 is crucial for understanding its functionality and integration into various circuits. The microcontroller offers 64 pins, with functionalities such as GPIO, ADC, SPI, I2C, USART, and CAN.

Pinout

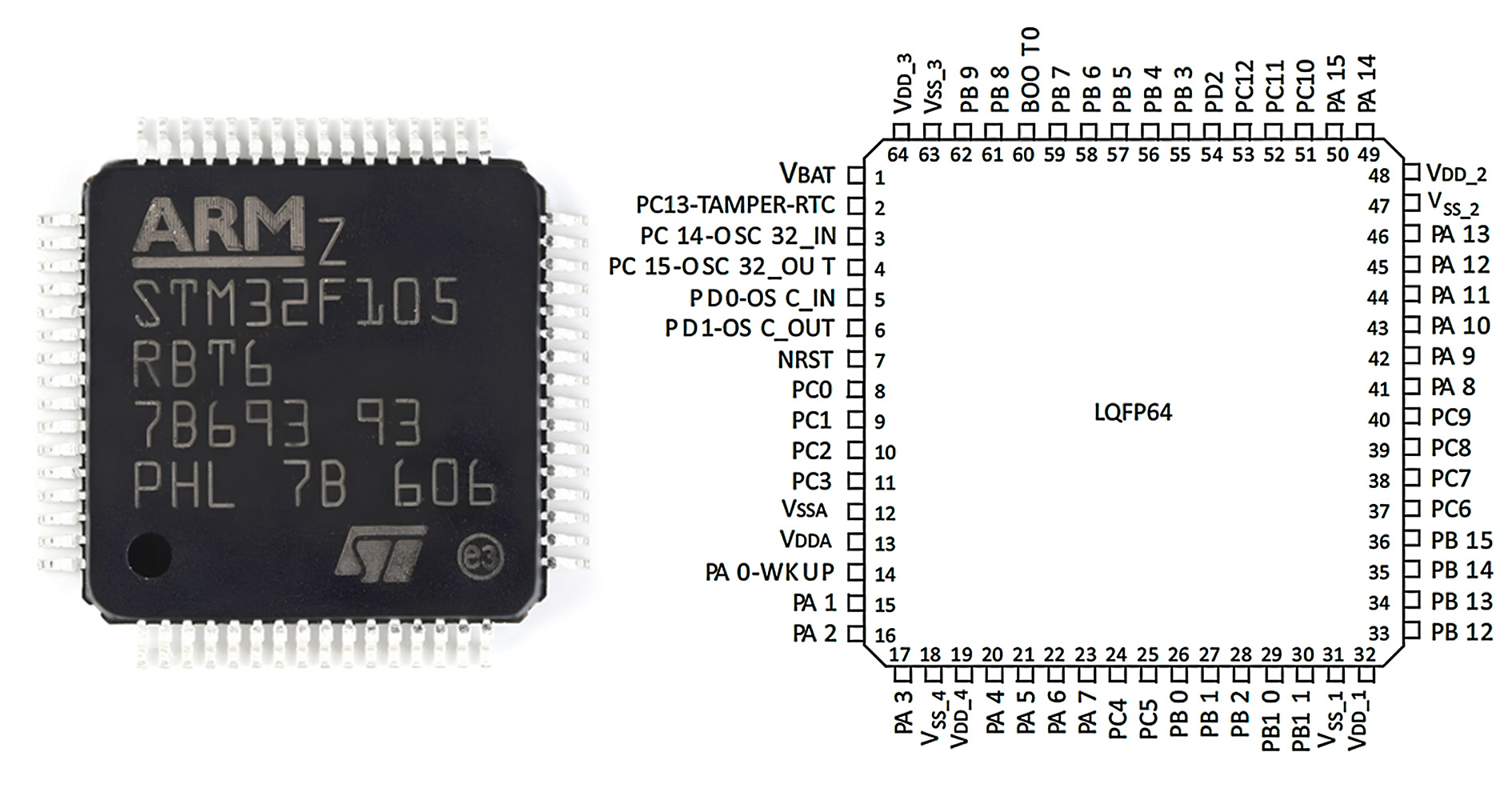

STM32F105RBT6 Pinout

The pinout can also be adapted to accommodate Arduino shields or modules, enabling rapid prototyping and integration with existing projects.

Designing Circuits with STM32F105RBT6

When incorporating the STM32F105RBT6 into a circuit, careful consideration of power, signal integrity, and external components is necessary. Essential design tips include:

• Proper decoupling capacitors to stabilize the power supply.
• Pull-up or pull-down resistors on critical GPIO pins to ensure reliable operation.
• Adequate trace widths and grounding for high-current or high-speed signals.

Using PCB design software, you can create a custom board layout that adheres to the STM32F105RBT6 footprint, ensuring optimal performance and manufacturability.

Development Boards Featuring STM32F105RBT6

The STM32F105RBT6 is available on various development boards designed to simplify prototyping and testing. Some popular options include:

STM32 Nucleo Boards

Nucleo boards are official STMicroelectronics development platforms, offering compatibility with Arduino shields. They include onboard debugging tools and provide access to the STM32 ecosystem.

Custom Boards and Blue Pill Alternatives

The Blue Pill, known for its affordability, is a minimalistic development board featuring an STM32 microcontroller. While most Blue Pill boards use the STM32F103, variants supporting STM32F105 are also available. These alternatives provide a compact footprint ideal for space-constrained designs.

For detailed designs, check the board schematic, which illustrates the connections between components, headers, and the microcontroller.

Arduino Projects with STM32F105RBT6

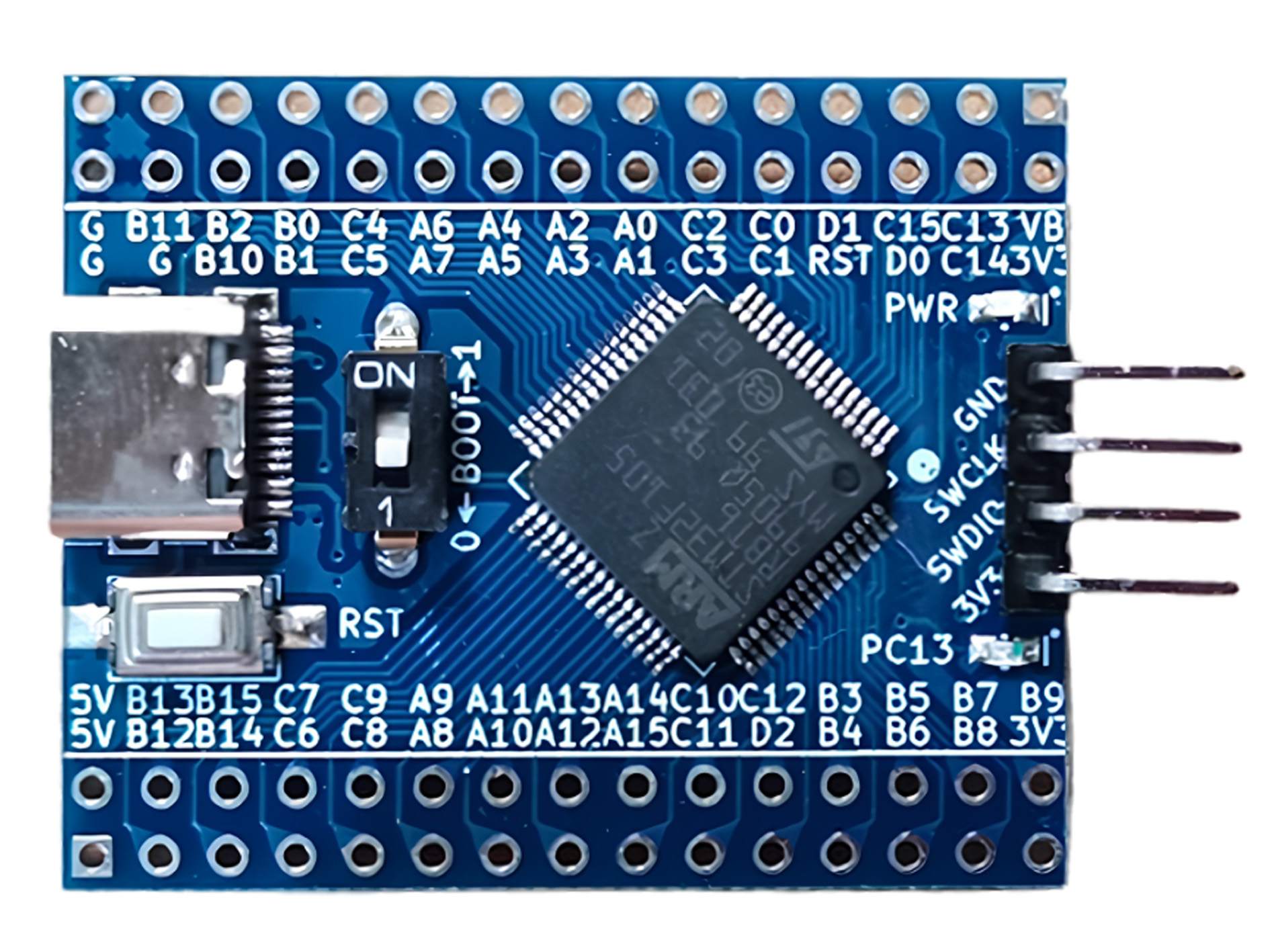

STM32F105RBT6 Arduino

The STM32F105RBT6 can be integrated with the Arduino ecosystem, enabling beginners and professionals to create innovative projects. The Arduino IDE supports STM32 microcontrollers through the STM32 core library, simplifying programming tasks.

Example Arduino Projects

1. IoT Sensor Hub: Utilize the STM32F105's I2C and SPI interfaces to collect data from multiple sensors and transmit it to the cloud.
2. Robotics Controller: Use PWM outputs to control motors and servos in robotics applications.
3. Data Logger: Combine the STM32F105RBT6 with an SD card module to log data for analytics.

The STM32F105's capability to work with the Arduino ecosystem enhances its flexibility, making it an attractive choice for various applications.

Programming and Bootloader for STM32F105RBT6

Programming the STM32F105RBT6 involves using tools like ST-Link, J-Link, or a USB-to-serial converter. For easier setup, a pre-installed bootloader can simplify uploading code via USB without additional hardware.

Steps for Programming

1. Connect the microcontroller using the programming interface (e.g., SWD or UART).
2. Use tools like STM32CubeIDE or Keil µVision for writing and compiling code.
3. Flash the compiled binary using a programmer or bootloader.

For developers new to STM32, the reference manual serves as a comprehensive guide to the microcontroller's architecture and peripherals.

STM32F105RBT6 Package and Footprint

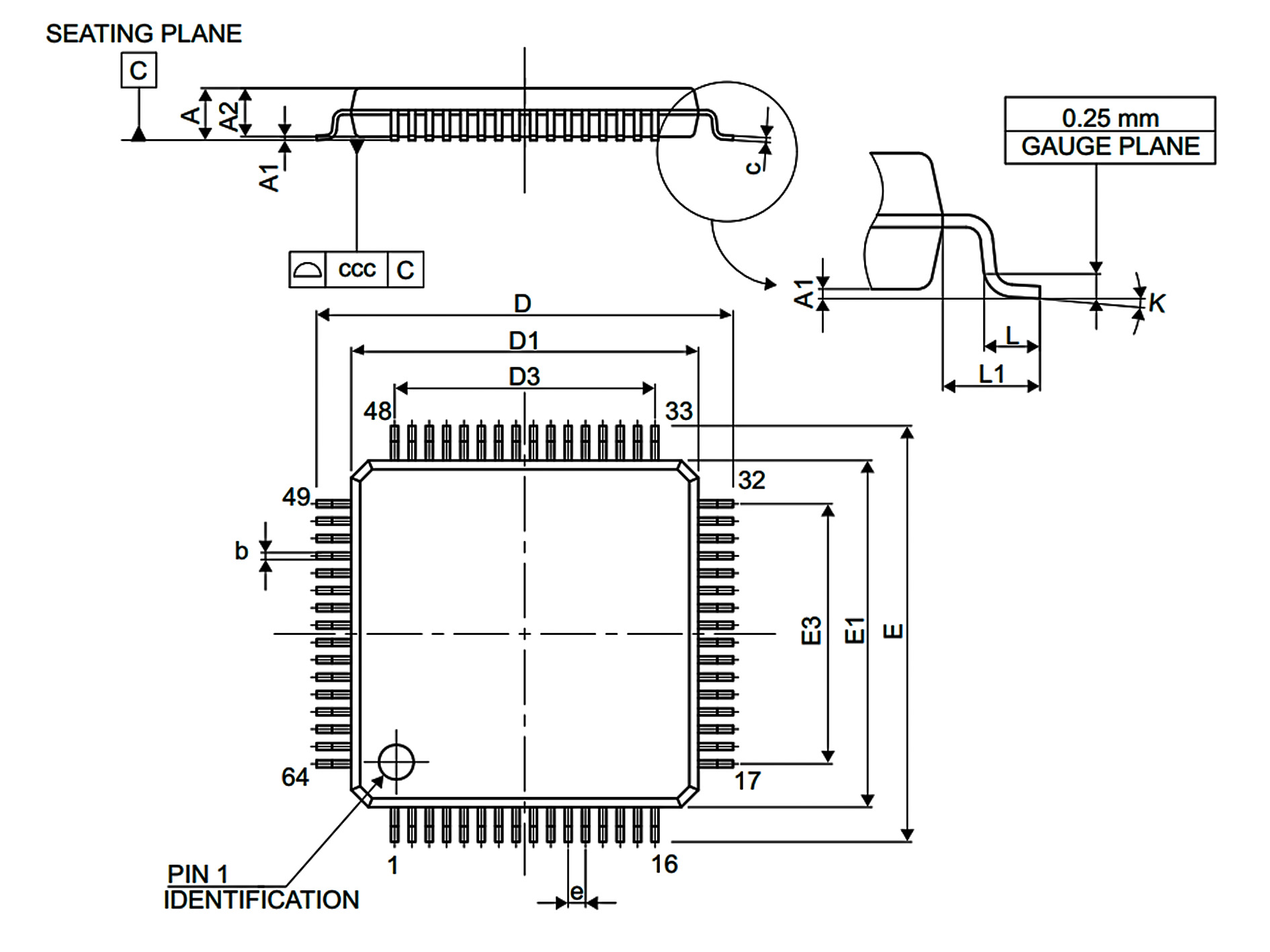

STM32F105RBT6 Package

STM32F105RBT6 package

Package Type: LQFP-64 (Low-Profile Quad Flat Package)

Body Size: 10 mm x 10 mm

Pitch: 0.5 mm

Pin Count: 64

Height: 1.4 mm max

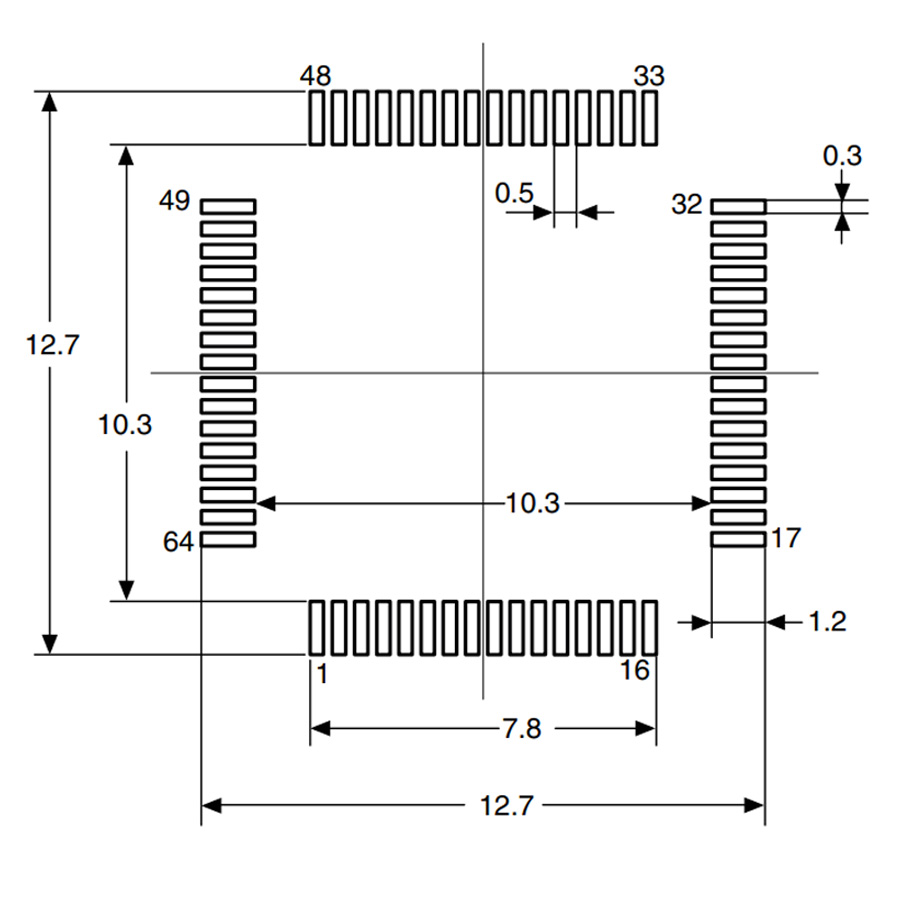

STM32F105RBT6 Footprint

STM32F105RBT6 footprint

Pad Width: 0.3 mm

Pad Length: 1.2 mm

Pad Pitch: 0.5 mm

Pad-to-Pad Distance (D, E): 10.3 mm

Overall Size (including pins): 12.7 mm x 12.7 mm

Sum up

The STM32F105RBT6 offers a powerful and versatile platform for embedded systems development. Its comprehensive pinout, compatibility with development boards like the Blue Pill, and support for Arduino projects make it a popular choice among professionals and hobbyists. By leveraging resources like the datasheet, reference manual, and schematic, developers can create efficient designs and innovative solutions. Whether you're building an IoT device, a robotics system, or an industrial controller, the STM32F105RBT6 is a microcontroller worth considering.
