STMicroelectronics STM32F103VCH6

Part No.:: STM32F103VCH6

Manufacturer:: STMicroelectronics

Package:: 100-LFBGA

Datasheet:: STM32F103VCH6.pdf

Description:: IC MCU 32BIT 256KB FLSH 100LFBGA

In Stock:: 3156

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F103VCH6 Specifications

Package/Case:
100-LFBGA
Packaging:
Tray
Series:
STM32F1
RoHS:
RoHS
Speed:
72MHz
RAM Size:
48K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
80
Core Processor:
ARM® Cortex®-M3
Data Converters:
A/D 16x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F103VCH6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F103VCH6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F103VCH6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F103VCH6 information

Views：

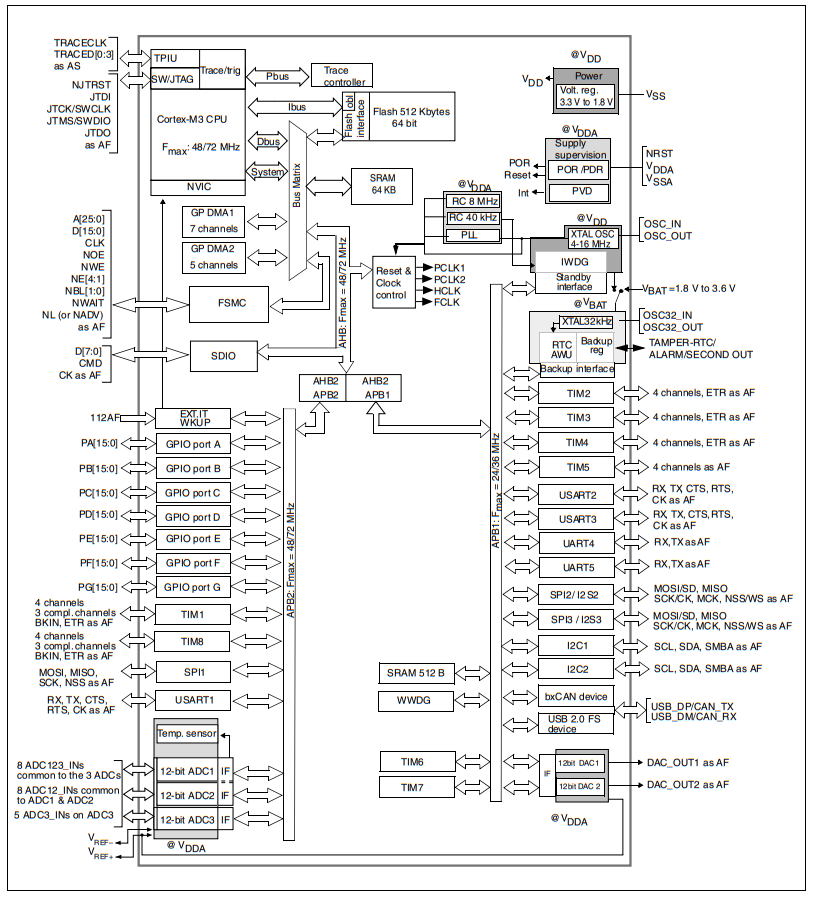

STM32F103VCH6 Typical application Circuitry

The ARM Cortex-M architecture-based STM32F103VCH6 microcontroller is a member of the STM32 series of 32-bit microcontrollers. STMicroelectronics manufactures these MCUs. This specific model is based on the Cortex-M3 core.

The primary attributes of the STM32F103VCH6 are:

- Cortex-M3 core running at up to 72MHz.

- 256KB of Flash memory.

- 48KB of SRAM.

- 3.3V operation with a supply voltage range of 2.0 to 3.6V.

- Multiple timers, including 3x 16-bit timers and 2x watchdog timers.

- Interfaces for communication such as I2C, SPI, USART, and USB 2.0.

- 37 general-purpose I/O pins.

- 2x 12-bit ADCs, and 2x DACs.

This microcontroller can be used in a wide range of applications, such as industrial sensor systems, motor control applications, real-time clocks, and even more complex systems like drones.

Now let's see how to use the STM32F103VCH6 in a simple application like controlling a stepper motor.

Step 1: Power Connection - The VDD pins should be connected to a 3.3V power source, and the VSS pins should be connected to the ground.

Step 2: Motor Control Pins - The stepper motor's control pins (usually four of them for a 4-phase stepper motor) should be connected to four GPIO pins on the STM32F103VCH6. For example, we could use the PB12, PB13, PB14, and PB15 pins.

Step 3: Crystal Oscillator - A crystal oscillator (8 MHz, for example) needs to be connected to the OSC_IN and OSC_OUT pins for the system clock.

Step 4: Boot Mode - Connect the BOOT0 pin to ground for normal boot mode from Flash memory.

Step 5: Reset Circuit - The NRST pin should be connected to a reset button to allow for manual resetting of the microcontroller.

When designing with the STM32F103VCH6, there are several considerations to keep in mind:

- Power Management: It's important to ensure that the power supply is clean and within the specified voltage range.

- EMC/EMI: Any circuit design should take into account potential issues with electromagnetic compatibility (EMC) and electromagnetic interference (EMI).

- Thermal Design: Especially in more complex applications, proper heat dissipation can be critical to ensure the STM32F103VCH6 doesn't overheat.

- Firmware: The code that you write to control the MCU should be efficient and reliable, making use of the MCU's features appropriately.

The details mentioned here offer a basic view. Always see the official datasheet and reference guide for detailed information.
