STMicroelectronics STM32F103R8T6

The STM32F103R8T6 microcontroller is a popular choice for embedded systems enthusiasts due to its excellent performance, versatility, and the broad community support it enjoys. Based on the ARM Cortex-M3 architecture, this chip is widely used in various applications, from industrial automation to DIY projects. In this article, we'll take a closer look at the STM32F103R8T6 pinout, development boards that feature this chip, and how you can integrate it with Arduino projects for creative designs.

Table of Contents

• STM32F103R8T6 Overview
• STM32F103R8T6 Pinout
• Circuit Design and Schematics
• Development Boards Featuring STM32F103R8T6
• STM32F103R8T6 Bootloader and Programming
• Arduino Projects with STM32F103R8T6
• STM32F103R8T6 Package and Footprint
• Sum up
• Frequently Asked Questions

STM32F103R8T6 Overview

The STM32F103R8T6 is part of the STM32 family of microcontrollers developed by STMicroelectronics. It offers 64KB of flash memory, 20KB of RAM, and a variety of features such as multiple timers, ADCs, UARTs, and I2C/SPI interfaces. It operates at speeds up to 72MHz and can be easily programmed using a variety of IDEs like STM32CubeIDE, Keil, and even Arduino.

Key Features of STM32F103R8T6

Core: ARM Cortex-M3

Clock Speed: 72 MHz

Flash Memory: 64 KB

RAM: 20 KB

I/O Pins: 37 (varies by package)

Interfaces: UART, SPI, I2C, USB, PWM

ADC Channels: 10-bit resolution

Timers: General-purpose timers, advanced timers for PWM generation

Power Supply: 2.0V to 3.6V

STM32F103R8T6 Pinout

STM32F103R8T6 Pinout

The STM32F103R8T6 pinout is crucial for designers and developers to understand how the microcontroller connects to external components. Below is an overview of the key pins and their functions:

You can find the full pinout diagram and details in the datasheet provided by STMicroelectronics. This document provides a comprehensive list of all the pin functions and electrical specifications that are vital when designing circuits with this microcontroller.

Circuit Design and Schematics

When designing your circuits for STM32F103R8T6, make sure to refer to the schematic of the development board you're using. Most boards have an available schematic online, which shows how the microcontroller is wired to the power supply, communication interfaces, and other components.

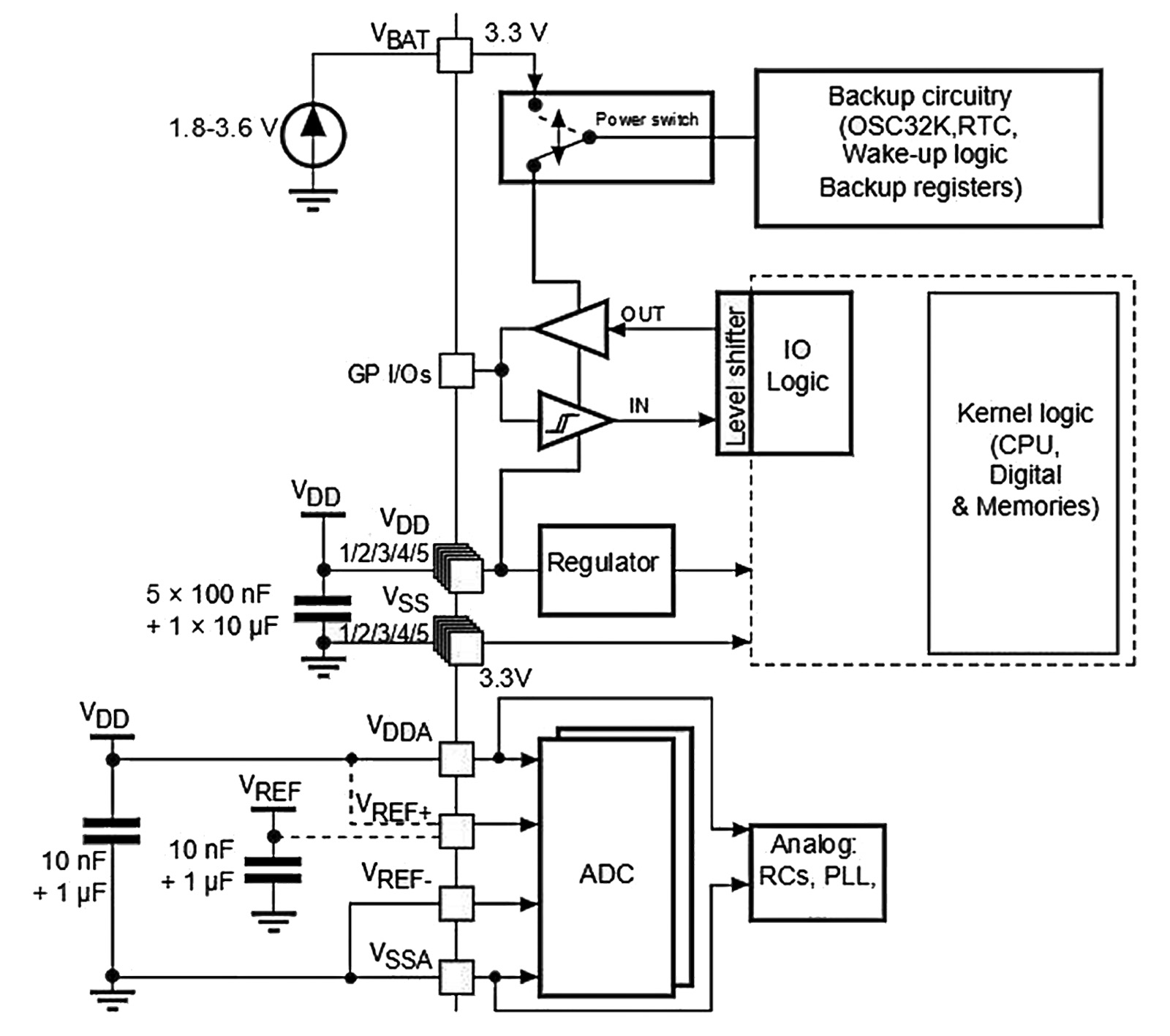

STM32F103R8T6 Typical application Circuitry

STM32F103R8T6 Typical application Circuitry Schematics

The uploaded image is a typical application circuitry schematic for the STM32F103R8T6 microcontroller. It demonstrates how the power supply, backup circuitry, ADC, and other critical components are connected in a typical embedded application.

Power Supply:

VDD powers the main logic (3.3V), and VBAT powers backup circuitry like the RTC and backup registers.

Decoupling capacitors (e.g., 10nF, 1μF) ensure stable voltage.

Backup Circuitry:

Includes RTC, wake-up logic, and registers with a power switch for automatic VBAT/VDD selection.

Regulator:

Internal regulator provides 3.3V to internal components.

GPIOs and IO Logic:

Handles external device interfacing via level shifters and buffers.

ADC and Analog Circuitry:

Requires separate VDDA, VREF+, and decoupling capacitors for stability.

VSSA is the analog ground to reduce noise.

Kernel Logic:

Includes the CPU, digital peripherals, and memory (Flash/SRAM).

This schematic serves as a reference for PCB designs and circuit integration. Always refer to the datasheet for detailed recommendations.

Development Boards Featuring STM32F103R8T6

There are several development boards available that feature the STM32F103R8T6, each offering various features and form factors for different kinds of applications. Let's take a look at some of the most common boards:

Blue Pill:

A compact, low-cost board with a micro-USB port and GPIO access, compatible with the Arduino IDE.

Nucleo-64:

An official STMicroelectronics board with an onboard debugger, Arduino headers, and expansion connectors.

Minimal System Boards:

Basic boards with essential components like crystal oscillators and pin headers, perfect for budget projects.

Custom Boards:

Tailored designs with specific interfaces or footprints for advanced applications.

STM32F103R8T6 Bootloader and Programming

Bootloader and Firmware Updates

The STM32F103R8T6 comes with a built-in bootloader that simplifies the programming process. The bootloader enables the microcontroller to be programmed directly via the USB interface, without needing additional external programming hardware. Once the microcontroller is connected to a computer, users can load the firmware into the device using various tools such as STM32CubeProgrammer or Arduino IDE.

Programming with Arduino IDE

The Arduino ecosystem is one of the most popular development environments for embedded systems. While STM32 microcontrollers are not officially supported by the standard Arduino IDE, there are community-supported libraries and tools that allow users to program the STM32F103R8T6 using Arduino sketches.

To program the STM32F103R8T6 with Arduino IDE, users need to install the STM32 core and select the appropriate board configuration. This makes it possible to write and upload Arduino code directly to the Blue Pill or other STM32-based boards.

Advantages of Programming with Arduino

Using the Arduino IDE to program the STM32F103R8T6 has several benefits:

Ease of Use: The Arduino IDE is known for its simplicity, making it easy to start with STM32 development even for beginners.

Large Community Support: There are many libraries and example projects available, making it easier to find solutions to common problems.

Cross-Platform: The Arduino IDE works on Windows, macOS, and Linux, allowing a wide range of users to get started with development.

Arduino Projects with STM32F103R8T6

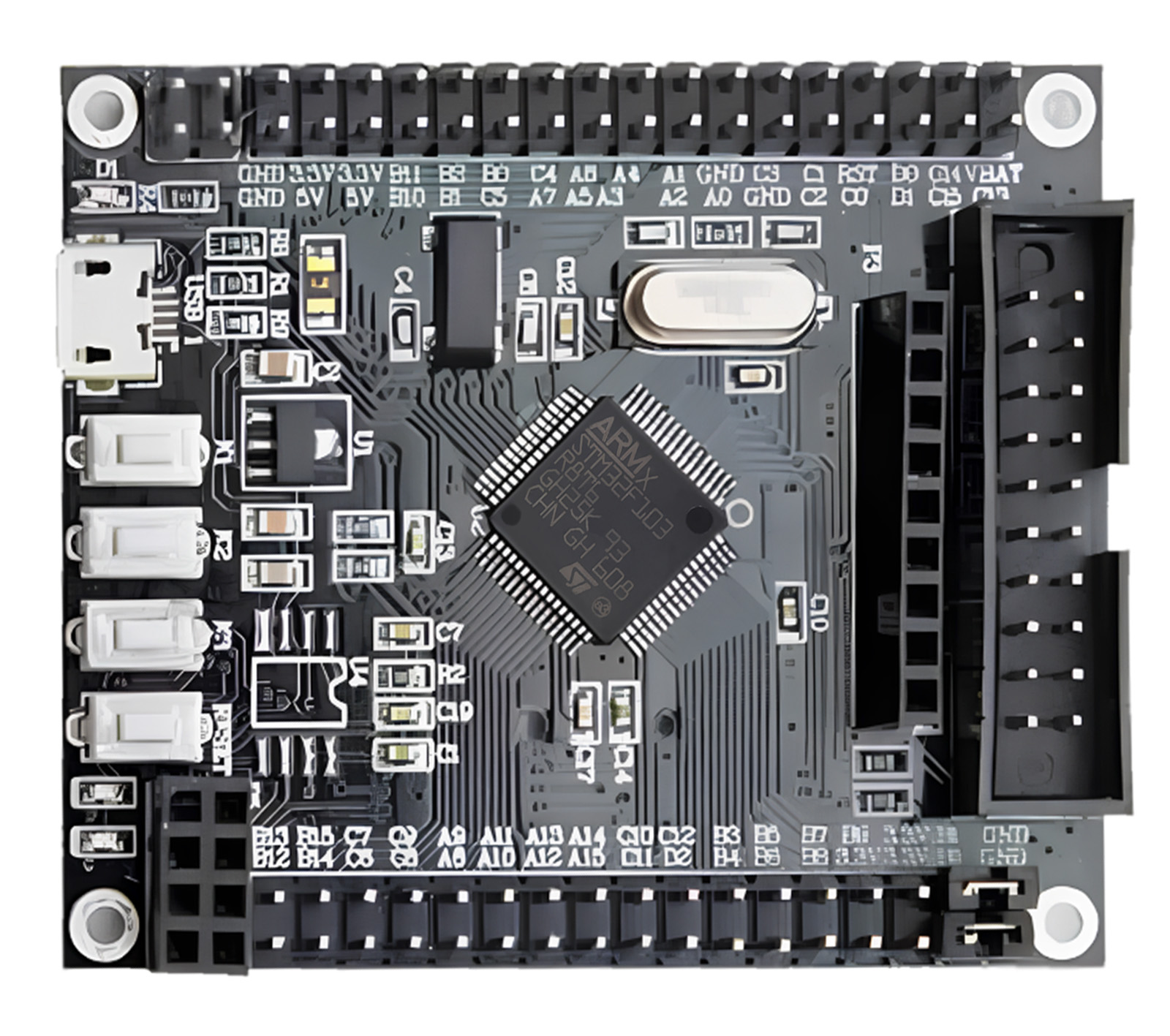

STM32F103R8T6 Arduino

The STM32F103R8T6 can be used in various Arduino projects, thanks to its versatility and powerful features. Some example projects include:

LED Blink Project

This is a simple introductory project where an LED is connected to a GPIO pin, and the program toggles the LED state every second. This project is great for beginners to familiarize themselves with the basic programming and hardware setup.

Temperature Monitoring System

By interfacing the STM32 with a temperature sensor (e.g., LM35 or DHT11), it is possible to build a temperature monitoring system. The data can be displayed on an LCD screen or transmitted to a computer via serial communication.

Motor Control System

Using the STM32's PWM capabilities, you can control the speed and direction of a DC motor. This is a practical project for learning about motor drivers and embedded systems control.

STM32F103R8T6 Package and Footprint

Package Details:

STM32F103R8T6 package

Package: LQFP-64 (64 pins)

Pin Pitch: 0.5 mm

Body Size: 10 mm x 10 mm

Overall Size: 12.7 mm x 12.7 mm (with pins)

Pin Length: 1.2 mm

Pin Width: 0.3 mm

Height: 1.4 mm (max)

Footprint Notes:

STM32F103R8T6 footprint

Ensure 0.5 mm pin pitch alignment.

Use slightly larger solder pads for secure connections.

Maintain proper pin spacing to avoid shorts.

Add copper planes if thermal dissipation is required.

Sum up

The STM32F103R8T6 is a powerful and affordable microcontroller that is widely used in embedded systems development. Its availability on boards like the Blue Pill makes it accessible for hobbyists and developers, while its compatibility with the Arduino IDE further simplifies the development process. Understanding the pinout, programming with the bootloader, and using the microcontroller in various projects open up numerous possibilities for anyone looking to dive into the world of embedded systems. The datasheet and reference manual for the STM32F103R8T6 are essential resources for developers, offering detailed information about the microcontroller's features and functions.

Frequently Asked Questions

What is the price of STM32F103R8T6?

The price of the STM32F103R8T6 typically ranges between $2 to $5 USD, depending on the distributor and quantity purchased. Prices may vary based on region, packaging, and any additional features of development boards.

Are there any cheaper alternatives to STM32F103R8T6?

Yes, there are cheaper alternatives in the ARM Cortex-M series, such as the STM32F030 or STM32F072 microcontrollers. These offer similar functionality at a lower price point but may have fewer features or lower performance.

What are the benefits of STM32F103R8T6 for DIY projects?

The STM32F103R8T6 is affordable, powerful, and supports easy integration with platforms like Arduino, making it ideal for DIY projects such as home automation or robotics.

Can STM32F103R8T6 be used in low-power applications?

Yes, STM32F103R8T6 supports low-power modes such as Sleep and Standby, making it suitable for battery-powered applications where power efficiency is critical.
