STMicroelectronics STM32F102C6T6ATR

Part No.:: STM32F102C6T6ATR

Manufacturer:: STMicroelectronics

Package:: 48-LQFP

Datasheet:: STM32F102C6T6ATR.pdf

Description:: IC MCU 32BIT 32KB FLASH 48LQFP

In Stock:: 3947

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32F102C6T6ATR Specifications

Package/Case:
48-LQFP
Packaging:
Tape & Reel (TR)
Series:
STM32F1
RoHS:
RoHS
Speed:
48MHz
RAM Size:
6K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Connectivity:
I²C, IrDA, LINbus, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
37
Core Processor:
ARM® Cortex®-M3
Data Converters:
A/D 10x12b
Oscillator Type:
Internal
Program Memory Size:
32KB (32K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

STM32F102C6T6ATR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32F102C6T6ATR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32F102C6T6ATR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM32F102C6T6ATR information

Views：

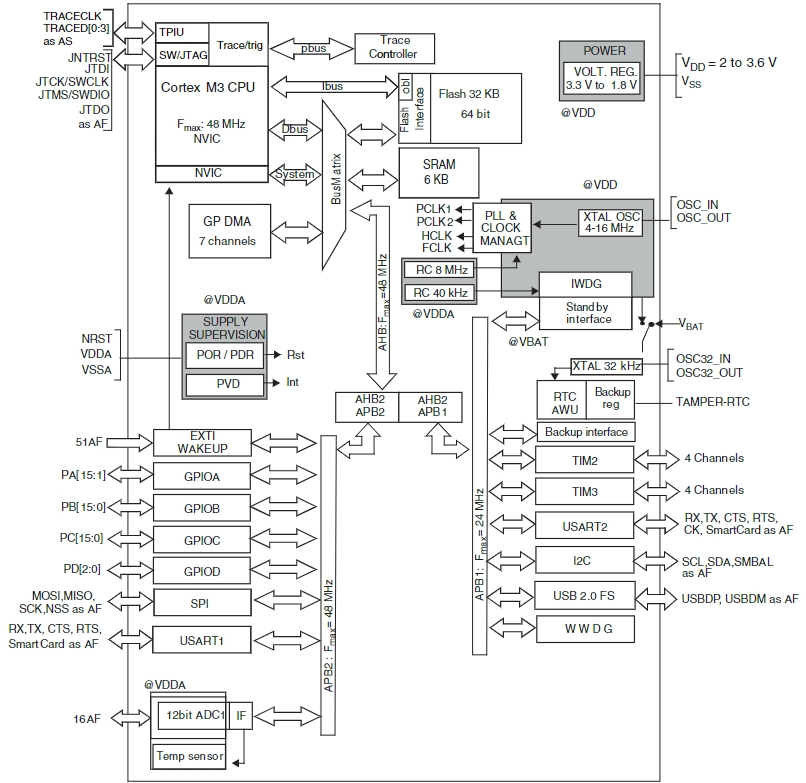

STM32F102C6T6ATR Typical application Circuitry

STM32F102C6T6ATR

STM32F102C6T6ATR is a dynamic microcontroller from the STM32F1 series developed by STMicroelectronics, which features the ARM Cortex-M3 core. This variant falls under the 'Access Line' category, tailored for applications requiring efficient core performance with a flexible set of peripherals at a cost-effective price point. It's particularly designed for tasks in industrial controls, consumer electronics, and entry-level automotive applications due to its robust operational capabilities. The "C6T6A" model code indicates specific memory configuration and package type, while "TR" highlights that it is provided in tape and reel form for efficient assembly in mass production.

Detailed Circuit Connection Setup for STM32F102C6T6ATR:

1. Power Connection Guidelines:

- Power Supply Pin (VDD): Connect the VDD pin (Pin 24 on a LQFP48 package) to a 3.3V regulated power source. This connection is essential because it supplies electricity to the microcontroller's peripherals and core.

- Ground Connection (VSS): All VSS pins (e.g., Pin 23 on LQFP48) should be connected to the ground to ensure a stable operation and minimize noise in the circuit.

2. Clock Configuration:

- External Oscillator Setup: For precise timing operations, connect a crystal oscillator across the OSC_IN (Pin 5) and OSC_OUT (Pin 6). A common configuration involves an 8 MHz crystal with load capacitors (typically 18-22 pF) grounded nearby to ensure stable oscillations.

3. Reset Pin Configuration:

- Reset Circuit: Attach a 10 kΩ pull-up resistor to the NRST pin (Pin 7) to maintain the microcontroller in a non-reset state under normal conditions. This pin may optionally be used to connect a push button for manual reset functionality.

4. GPIO and Peripheral Setup:

- General Purpose I/O (GPIO): Configure the required GPIO pins (such as Pins 1-4, 11-31) for various functionalities including digital inputs, outputs, or configured for specific peripheral functions like ADC inputs or PWM outputs based on the application needs.

- Peripheral Integration: Carefully connect peripherals such as UARTs and SPI to their respective pins. For instance, UART1 can be connected to Pins 9 (TX) and 10 (RX) for serial communication.

5. Communication Interface Configuration:

- Serial Wire Debug (SWD): Utilize the SWD interface for programming and debugging the STM32F102C6T6ATR. Connect the SWDIO (Pin 31) and SWCLK (Pin 32) for efficient debugging and firmware loading.

6. Testing and Validation:

- Comprehensive Testing: After all configurations are completed, it's vital to test the microcontroller setup extensively under operational conditions to ensure that all functionalities such as GPIO, UART, and external interrupts are working correctly as per the STM32F102C6T6ATR design requirements.

You can successfully integrate the STM32F102C6T6ATR into your electronic projects by adhering to these comprehensive instructions. This guide ensures that you are able to leverage the microcontroller's capabilities to the fullest, potentially enhancing the performance and reliability of your applications.
