Name: ST72F561R9TC
Brand: STMicroelectronics
SKU: ST72F561R9TC
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics ST72F561R9TC

Part No.:: ST72F561R9TC

Manufacturer:: STMicroelectronics

Package:: 64-LQFP

Datasheet:: ST72F561R9TC.pdf

Description:: IC MCU 8BIT 60KB FLASH 64LQFP

In Stock:: 3379

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ST72F561R9TC Specifications

Package/Case:
64-LQFP
Packaging:
Tray
Series:
ST7
RoHS:
RoHS
Speed:
8MHz
RAM Size:
2K x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Obsolete
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
CANbus, LINbusSCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
48
Core Processor:
ST7
Data Converters:
A/D 16x10b
Oscillator Type:
External
Program Memory Size:
60KB (60K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 125°C (TA)

ST72F561R9TC this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ST72F561R9TC price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ST72F561R9TC to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ST72F561R9TC information

Views：

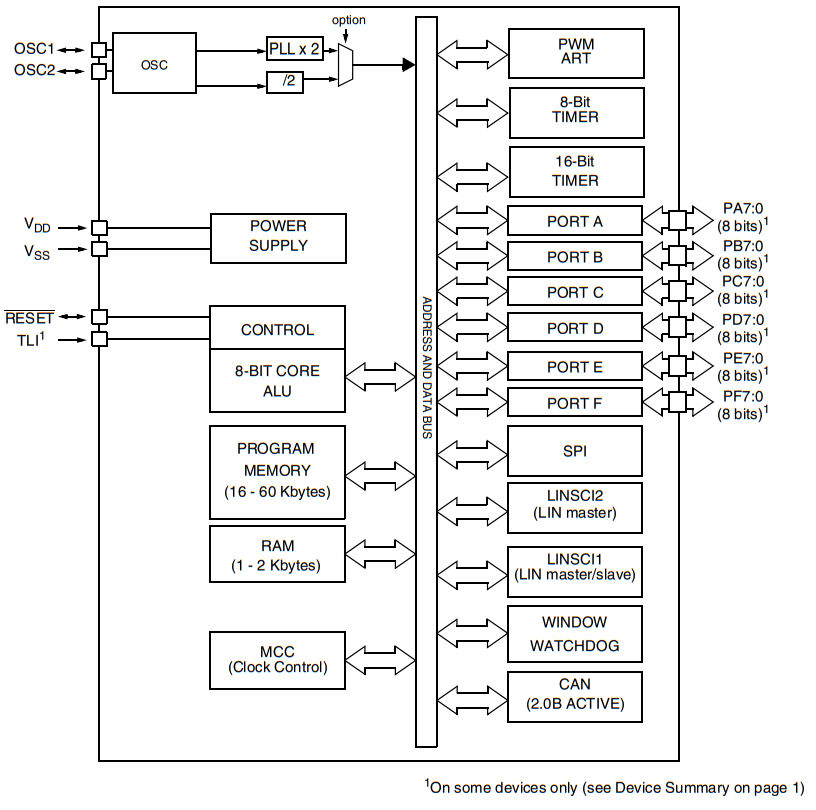

ST72F561R9TC Typical application Circuitry

ST72F561R9TC is a microcontroller unit (MCU) developed by STMicroelectronics. It belongs to the ST7 family of MCUs.

Features of ST72F561R9TC:

- It has a 8-bit architecture.
- It offers a clock speed up to 16 MHz.
- It features 2 kB of RAM and 60 kB of Flash memory.
- It also features I/O pins, timers, serial communication interfaces like UART, SPI, I2C, CAN, and a 10-bit analog to digital converter (ADC).

Application Scenarios:

The ST72F561R9TC is ideal for industrial applications such as motor control, automation systems, and appliances, owing to its robust set of peripherals, including high-resolution ADC and numerous communication interfaces.

Example Circuit Connection (Motor Control):

1. Power Supply: The VDD pin (Pin 80) and VSS pin (Pin 100) should be connected to a 5V power source and ground respectively.

2. Motor Control Pins: If controlling a motor, PWM signals can be sent through the PWM output pins, such as PA5/CC1A (Pin 18).

3. Serial Communication: For serial communication via UART, use the RXD pin (Pin 31) and TXD pin (Pin 32).

4. Digital I/O: Digital input and output can be done using the numerous GPIO pins, like PD0 - PD7 (Pins 60 - 67).

5. Analog Input: Analog input can be sent to the MCU through the analog input pins, like AN0 (Pin 39) for the ADC.

6. Reset Pin (RESET): The RESET pin (Pin 9) is driven low to reset the MCU and high for normal operation.

Considerations:

When designing a circuit with the ST72F561R9TC, it is important to ensure a stable power supply. Signal integrity should also be preserved, especially for high-speed interfaces. Additionally, one must ensure proper heat dissipation to prevent overheating of the MCU. If the MCU is to be used in an environment with potential electromagnetic interference, proper EMI protection measures should be in place.
