STMicroelectronics ST202EBDR

Part No.:: ST202EBDR

Manufacturer:: STMicroelectronics

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: ST202EBDR.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SO

In Stock:: 691

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ST202EBDR Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
230kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ST202EBDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ST202EBDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ST202EBDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ST202EBDR information

Views：

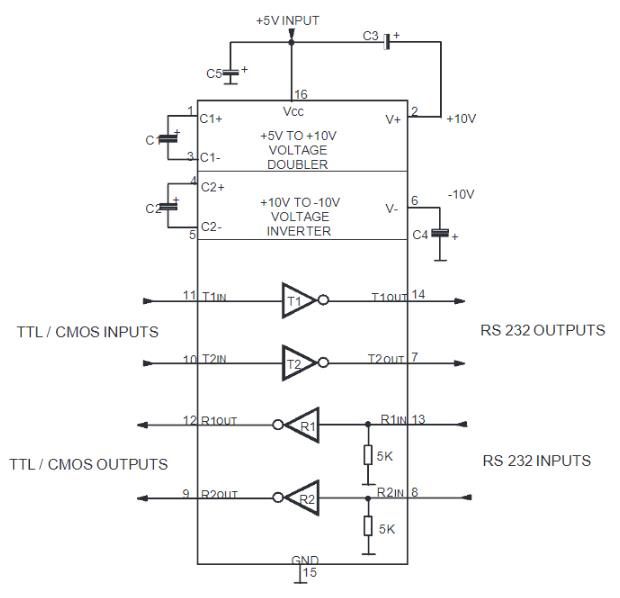

ST202EBDR Typical application Circuitry Schematics

The ST202EBDR is a device from STMicroelectronics and is typically part of a family of 5 V powered transceivers that manage both RS-232 and RS-232-like signal levels in a compact configuration. Devices such as the ST202EBDR are used in various applications to interface traditional RS-232 communication ports (like those you would find on a PC) to the typically lower voltage signal levels used on device circuitry. Key Characteristics:

1. Dual Transceiver Channels: - The ST202EBDR usually has two transceiver channels, each capable of transmitting and receiving RS-232 signals.

2. Voltage Levels: - These devices operate on a single +5V power supply but can translate signals that are in the true RS-232 voltage levels, which are significantly higher.

3. Data Rates: - They can generally handle decent data rates, suitable for many serial communication applications.

4. Electrostatic Discharge (ESD) Protection: - They tend to provide a robust ESD protection for the RS-232 I/O pins, which is crucial in preventing damage during handling and operation.

Typical Circuit Elements:

1. Power Supply: - VCC: Connect to a +5V power supply. - GND: Connect to the system ground.

2. Transmission (TX) and Reception (RX) Pins: - T1OUT, T2OUT: Transmit data lines for sending RS-232 level signals. - R1IN, R2IN: Receive data lines for receiving RS-232 level signals. - T1IN, T2IN: TTL/CMOS level input pins for transmitting data. - R1OUT, R2OUT: TTL/CMOS level output pins for received data.

3. External Capacitors: - Usually, four external capacitors are connected to the V+, V-, C1+, and C1- pins to generate the needed voltage levels for RS-232 transmission.

4. Control Pins: - ENABLE: This pin is typically used to enable/disable the driver outputs (T1OUT, T2OUT).

5. Protection: - Adequate decoupling capacitors are often connected close to the power supply pins to ensure stability.

Implementation: - Data Communication: - T1IN and T2IN would connect to the transmitting data sources (likely a microcontroller or another form of digital logic), and R1OUT and R2OUT would connect to the receiving data inputs on the same. - T1OUT and T2OUT would connect to an external RS-232 port for transmitting data, and R1IN and R2IN would connect to the RS-232 port for receiving data. - Power Supply: - It is essential to ensure that the VCC pin is supplied with a clean, stable +5V supply, and all ground references are robust.

Note: It's always recommended to refer directly to the datasheet for the ST202EBDR for the most accurate and detailed information regarding pin assignments, electrical characteristics, and typical application circuits. The datasheet will also provide details on the required external capacitor values for the charge pump and any additional recommended external components for optimal functionality and reliability in various applications. If you have specific questions or needs, feel free to share!
