What is the Additional Feature ?

Name: SPC560B54L3C6E0X
Brand: STMicroelectronics
SKU: SPC560B54L3C6E0X
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics SPC560B54L3C6E0X

Part No.:: SPC560B54L3C6E0X

Manufacturer:: STMicroelectronics

Package:: 100-LQFP

Datasheet:: SPC560B54L3C6E0X.pdf

Description:: IC MCU 32BIT 768KB FLASH 100LQFP

In Stock:: 3947

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SPC560B54L3C6E0X Specifications

Package/Case:
100-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, SPC56
RoHS:
RoHS
Speed:
64MHz
RAM Size:
64K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
DMA, LVD, POR, PWM, WDT
Connectivity:
CANbus, I²C, LINbus, SCI, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
77
Core Processor:
e200z0h
Data Converters:
A/D 53x10/12b
Oscillator Type:
Internal
Program Memory Size:
768KB (768K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 125°C (TA)

SPC560B54L3C6E0X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SPC560B54L3C6E0X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SPC560B54L3C6E0X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SPC560B54L3C6E0X information

Views：

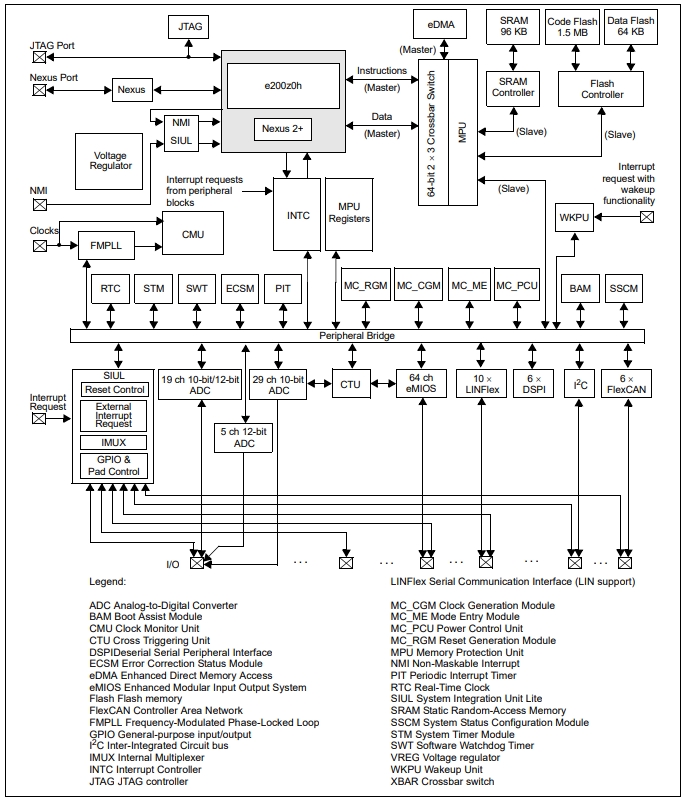

SPC560B54L3C6E0X Typical application Circuitry

SPC560B54L3C6E0X

The SPC560B54L3C6E0X is a sophisticated microcontroller chip from STMicroelectronics, specifically designed for automotive applications. It's part of the SPC56 32-bit MCU family, based on the Power Architecture®. The chip is known for its robustness, high-performance computing capabilities, and a wide array of communication interfaces, making it highly suitable for complex automotive systems such as advanced driver-assistance systems (ADAS), body control modules, and in-vehicle networking.

Application Scenario: Vehicle Body Control Module

In this application, the SPC560B54L3C6E0X serves as the central controller within a vehicle's body control module, managing functionalities like door control, lighting, and climate control systems.

Detailed Circuit Connection:

1. Power Supply Configuration:

- The SPC560B54L3C6E0X operates with a typical supply voltage suitable for automotive applications.

- Connect a stable automotive-rated power source to the VDD pins and ground the VSS pins.

2. Sensor Integration (Analog/Digital Inputs):

- Connect outputs from various sensors (e.g., temperature sensors, door sensors) to the appropriate ADC or GPIO input pins on the SPC560B54L3C6E0X.

- Configure these pins in the firmware to handle the sensor data correctly.

3. Actuator Control (PWM Outputs/Relay Control):

- Use GPIO pins configured for PWM output to control actuators (e.g., for climate control).

- For controlling relays (e.g., for door locks or lighting), use GPIO output pins, ensuring proper interfacing with relay driver circuits.

4. Communication Interfaces (CAN/LIN/FlexRay):

- Utilize the CAN interface for communication with other ECU units.

- Connect CAN_H and CAN_L lines to the vehicle's CAN network, ensuring proper termination and signal integrity.

- If necessary, also implement LIN or FlexRay communication, depending on the vehicle's network architecture.

5. Programming and Debugging (JTAG/Nexus Interface):

- Use the JTAG or Nexus interface for programming and debugging the SPC560B54L3C6E0X.

- Connect the JTAG pins (TMS, TCK, TDI, TDO) or Nexus pins to your debugging tool, ensuring a stable connection for firmware uploading and system debugging.

Design Considerations:

1. Automotive Compliance: Ensure that the entire design, including the SPC560B54L3C6E0X MCU and all peripheral components, meets automotive industry standards for reliability, safety, and EMI/EMC compliance.

2. Power Supply Stability: Implement robust power management with proper filtering and protection to handle the transients and noise typical in automotive power systems.

3. Thermal Management: Design the system to operate reliably across the automotive temperature range, including proper heat dissipation for the SPC560B54L3C6E0X and other power components.

4. Fault Tolerance and Diagnostics: Incorporate fault detection, handling mechanisms, and diagnostic capabilities to ensure system reliability and simplify maintenance.

In conclusion, the SPC560B54L3C6E0X is exceptionally well-suited for use in a vehicle's body control module, adeptly managing sensor data, actuating control commands, and ensuring seamless communication across the vehicle's network. The success of such an intricate system relies on strict adherence to automotive standards, careful power supply design, efficient thermal management, and comprehensive fault tolerance and diagnostic strategies.

SPC560B54L3C6E0X FAQ

1. How to order SPC560B54L3C6E0X on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that SPC560B54L3C6E0X is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the SPC560B54L3C6E0X. All suppliers must pass our qualification reviews before they can publish their products including SPC560B54L3C6E0X on icwhale.com; we pay more attention to the channels and quality of SPC560B54L3C6E0X products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the SPC560B54L3C6E0X price and inventory displayed accurate?

The price and inventory of SPC560B54L3C6E0X fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of SPC560B54L3C6E0X?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SPC560B54L3C6E0X we delivered, we will accept the replacement or return of the SPC560B54L3C6E0X only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of SPC560B54L3C6E0X.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
