What is the Additional Feature ?

Name: SN75176ADRG4
Brand: Texas Instruments
SKU: SN75176ADRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN75176ADRG4

Part No.:: SN75176ADRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN75176ADRG4.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 2856

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN75176ADRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
50 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

SN75176ADRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN75176ADRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN75176ADRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN75176ADRG4 information

Views：

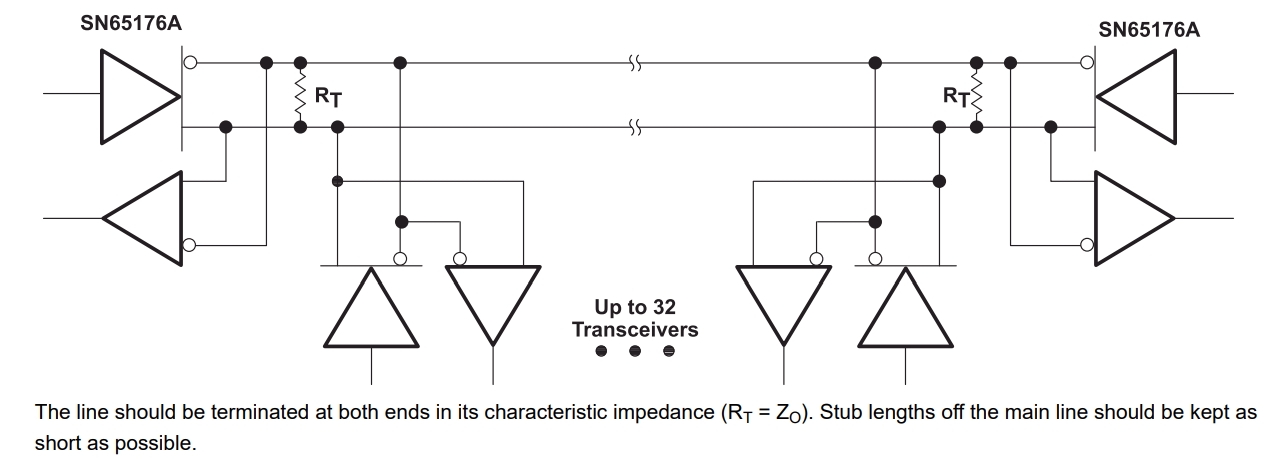

SN75176ADRG4 Typical application Circuitry

SN75176ADRG4

The SN75176ADRG4 is an integrated circuit designed as a differential bus transceiver. This chip, produced by Texas Instruments, is commonly used for bidirectional data communication on balanced transmission lines, particularly in RS-485 and RS-422 networks.

Functional Overview of SN75176ADRG4

- Differential Bus Transceiver: Optimized for bidirectional communication in RS-485 and RS-422 networks.

- High-Speed Data Communication: Suitable for high-speed data transfer applications.

- Balanced Line Driving and Receiving: This technique guarantees dependable data transfer over extended distances and across noisy surroundings.

SN75176ADRG4 Application Use Cases

- Industrial Automation Systems: Commonly used in industrial environments for reliable long-distance communication.

- Networked Control Systems: Suitable for control systems requiring robust data transmission.

Important details

- High Data Rate: Compatible with data speeds of up to 10 Mbps in general.

- Voltage Range of Supply: Usually operates between 4.75V and 5.25V per supply.

- Enhanced Noise Immunity: Effectively resists industrial electrical noise and interference.

Example Circuit: RS-485 Communication Network

Construct a circuit using the SN75176ADRG4 to facilitate RS-485 communication between a microcontroller and a network of devices.

1. Power Supply Connection:

- VCC Linkage: Connect VCC (pin 8) to a 5V power supply source.

- Grounding: Attach GND (pin 5) to the system's ground.

2. Microcontroller Interface:

- Transmitting Data: Connect the microcontroller's TX line to DI (pin 4), the Driver Input of the SN75176ADRG4.

- Receiving Data: Link the microcontroller's RX line to RO (pin 1), the Receiver Output of the SN75176ADRG4.

3. Network Connection using RS-485:

- Differential Communication Lines: Attach pins A (pin 6) and B (pin 7) to the A and B lines, respectively, of the RS-485 network.

4. Control Pins Setup:

- Driver Enable (DE): Link DE (pin 3) to a GPIO pin on the microcontroller to control the driver enable.

- Receiver Enable (RE): Connect RE (pin 2) to a GPIO or ground to activate the receiver.

Circuit Design Considerations of SN75176ADRG4

- Impedance Matching: To match the characteristic impedance, install termination resistors at both ends of the RS-485 bus.

- Noise Mitigation: Ensure proper cable shielding and grounding to minimize common-mode noise.

- Power Supply Quality: Verify the stability and cleanliness of the 5V power supply.

In this setup, the SN75176ADRG4 acts as a key interface for RS-485 communication, enabling the microcontroller to communicate effectively over a differential bus in an industrial setting. This design is essential in scenarios where reliable data transmission is needed over long distances and in electrically noisy environments. Attention to details like impedance matching, noise reduction, and power supply integrity is critical for the successful implementation of this circuit.
