Texas Instruments SN75176ADRE4

Part No.:: SN75176ADRE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN75176ADRE4.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3664

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN75176ADRE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
50 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

SN75176ADRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN75176ADRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN75176ADRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN75176ADRE4 information

Views：

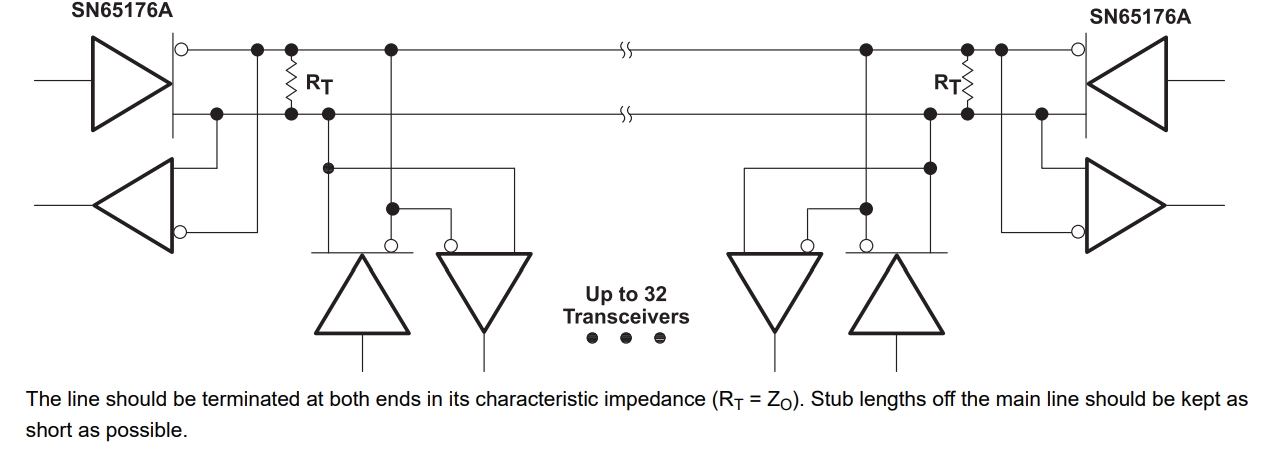

SN75176ADRE4 Typical application Circuitry

SN75176ADRE4

The SN75176ADRE4 is a differential bus transceiver chip designed for bidirectional data communication on a balanced transmission line. This chip, produced by Texas Instruments, is commonly used in digital systems for reliable data transmission over longer distances and in noisy environments.

Functional Attributes of SN75176ADRE4

- Differential Bus Transceiver: Suitable for bidirectional communication on RS-485 and RS-422 networks.

- High-Speed Data Transmission: Designed for efficient communication in high-speed data networks.

- Balanced Line Driver and Receiver: Ensures stable data transmission over twisted-pair cables.

Typical Application Scenarios

- RS-485/RS-422 Communication Networks: Ideal for industrial control systems, networked automation, and data acquisition systems.

- Long-Distance Data Transmission: Useful in applications where data needs to be transmitted reliably over long distances.

Important Details

- High-Speed Operation: Usually supports up to 10 Mbps of data rate.

- Broad Voltage Range: 4.75V to 5.25V is the operating voltage range.

- Robust Noise Immunity: Designed to withstand industrial electrical noise and interference.

Example Circuit: RS-485 Communication Interface

Design a circuit using the SN75176ADRE4 to establish an RS-485 communication interface between a microcontroller and a remote device.

1. Power Supply Connections:

- VCC Connection: Connect VCC (pin 8) to a 5V power supply.

- Ground Connection: Attach GND (pin 5) to the system ground.

2. Microcontroller Data Line Setup:

- TX (Transmit) to Driver Input: Connect the microcontroller's TX line to the driver input, DI (pin 4), of the SN75176ADRE4.

- RX (Receive) from Receiver Output: Attach the microcontroller's RX line to the receiver output, RO (pin 1), of the SN75176ADRE4.

3. RS-485 Network Connection:

- Differential Data Lines: Connect A (pin 6) and B (pin 7) of the SN75176ADRE4 to the RS-485 network's differential data lines (A and B).

4. Control Pins Configuration:

- Driver Enable (DE): Connect DE (pin 3) to a microcontroller GPIO to control the driver's operation.

- Receiver Enable (RE): Attach RE (pin 2) to another GPIO or ground to enable the receiver.

Design Consideration Points

- Impedance Matching: To match the characteristic impedance and avoid signal reflections, use termination resistors at the end of the RS-485 bus.

- Common-Mode Noise Rejection: To reduce noise interference, make sure your cables are properly shielded and grounded.

- Power Supply Stability: Verify the noise-free and reliable 5V power supply.

In this configuration, the SN75176ADRE4 acts as a robust interface for RS-485 communication, allowing the microcontroller to reliably transmit and receive data over a differential bus. This setup is crucial in industrial and networking environments where long-distance and noise-immune data transmission is required. Key aspects such as impedance matching, noise rejection, and stable power supply are essential for effective and reliable communication in such systems.
