Texas Instruments SN74LVC3G34DCURG4

Part No.:: SN74LVC3G34DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: SN74LVC3G34DCURG4.pdf

Description:: IC BUFFER NON-INVERT 5.5V 8VSSOP

In Stock:: 2210

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC3G34DCURG4 Specifications

Package/Case:
8-VFSOP (0.091, 2.30mm Width)
Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
3
NumberofBitsperElement:
1
InputType:
-
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC3G34DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC3G34DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC3G34DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC3G34DCURG4 information

Views：

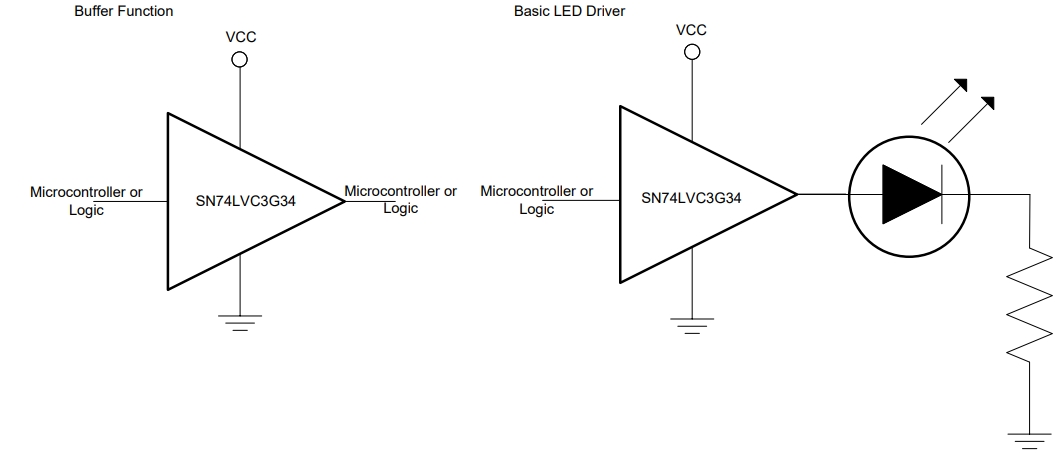

SN74LVC3G34DCURG4 Typical application Circuitry

SN74LVC3G34DCURG4

The SN74LVC3G34DCURG4 is a triple unbuffered buffer gate integrated circuit, developed by Texas Instruments. It belongs to the SN74LVC series and is designed to provide high-level signal driving capability in various digital applications.

Functional Attributes of SN74LVC3G34DCURG4

- Triple Unbuffered Buffers: Delivers enhanced signal driving capability.

- Signal Stability: Ideal for maintaining signal integrity in digital systems.

- Noise Tolerance: Effective in environments with potential signal interference.

Typical Applications

- Signal Distribution: Used in systems where a signal from a single source needs to be distributed to multiple destinations.

- Long Trace Driving: Useful for transmitting signals across long PCB traces.

- Logic Level Shifting: Assists in shifting logic levels within permissible voltage ranges.

Key Specifications

- Voltage Flexibility: Operates in a voltage range of 1.65V to 5.5V, compatible with various logic systems.

- Minimal Power Usage: Low power consumption makes it suitable for energy-efficient designs.

- Fast Signal Propagation: Ensures quick and efficient signal transmission.

Example Circuit: Distributing Signals in a Microcontroller-Based System

Create a circuit to distribute a single digital signal from a microcontroller to three different components.

1. Power Supply Connections:

- VCC Pin Linkage: Connect the VCC pin (pin 14) to the microcontroller's operating voltage, typically 3.3V.

- Grounding the Chip: Attach the GND pin (pin 7) to the common ground.

2. Microcontroller Signal Input:

- Input from Microcontroller: Connect an output pin of the microcontroller to input A (pin 1) of the SN74LVC3G34DCURG4.

3. Signal Output Distribution:

- Output to Components: Link outputs Y1 (pin 2), Y2 (pin 5), and Y3 (pin 6) to the respective input pins of the three different components.

4. Enhancing Signal Integrity:

- Decoupling Capacitor Implementation: Position a decoupling capacitor near the VCC pin to minimize power supply noise.

Circuit Design Focus Points

- Voltage Matching: Ensure the microcontroller's output voltage is within the operational range of the SN74LVC3G34DCURG4.

- Load Consideration: Account for the input characteristics of the components receiving the signals.

- Power Supply Stability: Maintain a stable power supply to ensure consistent performance.

In a setup like this, the SN74LVC3G34DCURG4 is effectively utilized to distribute a digital signal from a single microcontroller output to multiple destinations, thereby enhancing the system's overall capability. This arrangement is particularly advantageous in scenarios that demand strong signal driving and high noise immunity.
