Texas Instruments SN74LVC3G17DCURG4

Part No.:: SN74LVC3G17DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: SN74LVC3G17DCURG4.pdf

Description:: IC BUFFER NON-INVERT 5.5V 8VSSOP

In Stock:: 2356

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC3G17DCURG4 Specifications

Package/Case:
8-VFSOP (0.091, 2.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
3
NumberofBitsperElement:
1
InputType:
Schmitt Trigger
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC3G17DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC3G17DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC3G17DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC3G17DCURG4 information

Views：

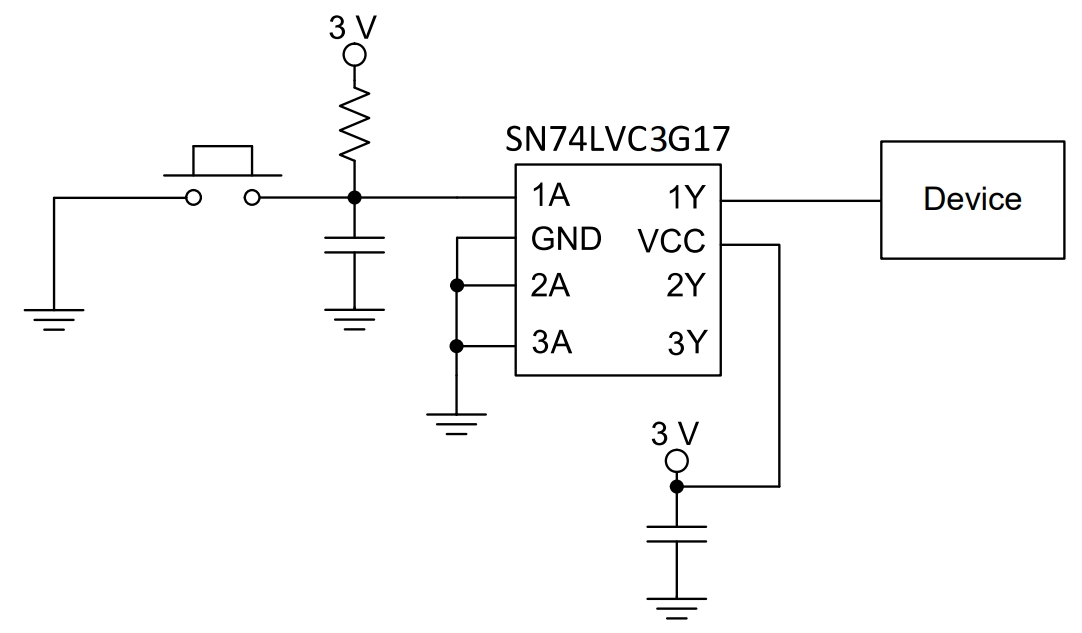

SN74LVC3G17DCURG4 Typical application Circuitry

SN74LVC3G17DCURG4

The SN74LVC3G17DCURG4 is an integrated circuit designed as a triple Schmitt-trigger buffer. This device is produced by Texas Instruments as part of their SN74LVC series, and it is tailored for applications requiring signal conditioning with high noise immunity.

Functionality of SN74LVC3G17DCURG4

The SN74LVC3G17DCURG4 functions as a triple Schmitt-trigger buffer, which is essential for stabilizing noisy or weak input signals and ensuring stable output transitions. It is particularly effective in digital signal processing where signal integrity is critical.

Application Scenarios

This chip is frequently used in digital circuits for noise filtering, shaping slowly changing signals, and interfacing with digital signals that are susceptible to noise.

Key Parameter Features

- Schmitt-Trigger Inputs: Offers enhanced noise immunity and stable signal transitions.

- Wide Voltage Range Compatibility: Operates with a supply voltage range of 1.65V to 5.5V, accommodating various logic levels.

- Low Power Consumption: Ideal for energy-efficient designs due to minimal power usage.

- High-Speed Operation: Capable of processing signals quickly, crucial in timing and pulse generation applications.

Circuit Connection Example: Noise Filtering for a Microcontroller Input

Design a circuit using the SN74LVC3G17DCURG4 to filter noise from a digital input signal before it reaches a microcontroller.

1. Power Supply Setup:

- VCC Connection: Connect VCC (pin 14) to a 3.3V power source, aligning with typical microcontroller logic levels.

- Grounding the IC: Attach GND (pin 7) to the system ground.

2. Input Signal Connection:

- Connecting Noisy Digital Inputs: Link up to three noisy digital input signals to the input pins A (pin 1), B (pin 3), and C (pin 5).

3. Output Signal Configuration:

- Filtered Outputs to Microcontroller: Connect the output pins Y (pin 2), Y (pin 4), and Y (pin 6) to respective digital inputs on the microcontroller.

4. Signal Integrity Enhancement:

- Decoupling Capacitor Use: Place a decoupling capacitor (e.g., 0.1 µF) near the VCC pin to stabilize the power supply and filter out noise.

Design Considerations

When designing circuits with the SN74LVC3G17DCURG4, it's important to consider the nature of the input signals, ensuring they are within the chip's voltage range, and the characteristics of the load (e.g., microcontroller) connected to the output.

In summary, the SN74LVC3G17DCURG4, with its triple Schmitt-trigger buffer functionality, is highly effective in applications where enhancing signal integrity and noise immunity is crucial, such as in digital signal processing for microcontrollers. Its compatibility with a wide range of operating voltages, noise immunity, fast signal processing, and low power consumption make it a valuable component in modern electronic systems. Attention to signal levels, power supply stability, and load requirements is essential for the effective implementation of this IC in practical circuit designs.
