Texas Instruments SN74LVC2G74DCURG4

Part No.:: SN74LVC2G74DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VSSOP

Datasheet:: SN74LVC2G74DCURG4.pdf

Description:: IC FF D-TYPE SNGL 1BIT 8VSSOP

In Stock:: 2394

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G74DCURG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Discontinued at Mosen
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
1
NumberofBitsperElement:
1
ClockFrequency:
200 MHz
MaxPropagationDelay@VMaxCL:
4.4ns @ 5V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Iq):
10 µA
InputCapacitance:
5 pF
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC2G74DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G74DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G74DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G74DCURG4 information

Views：

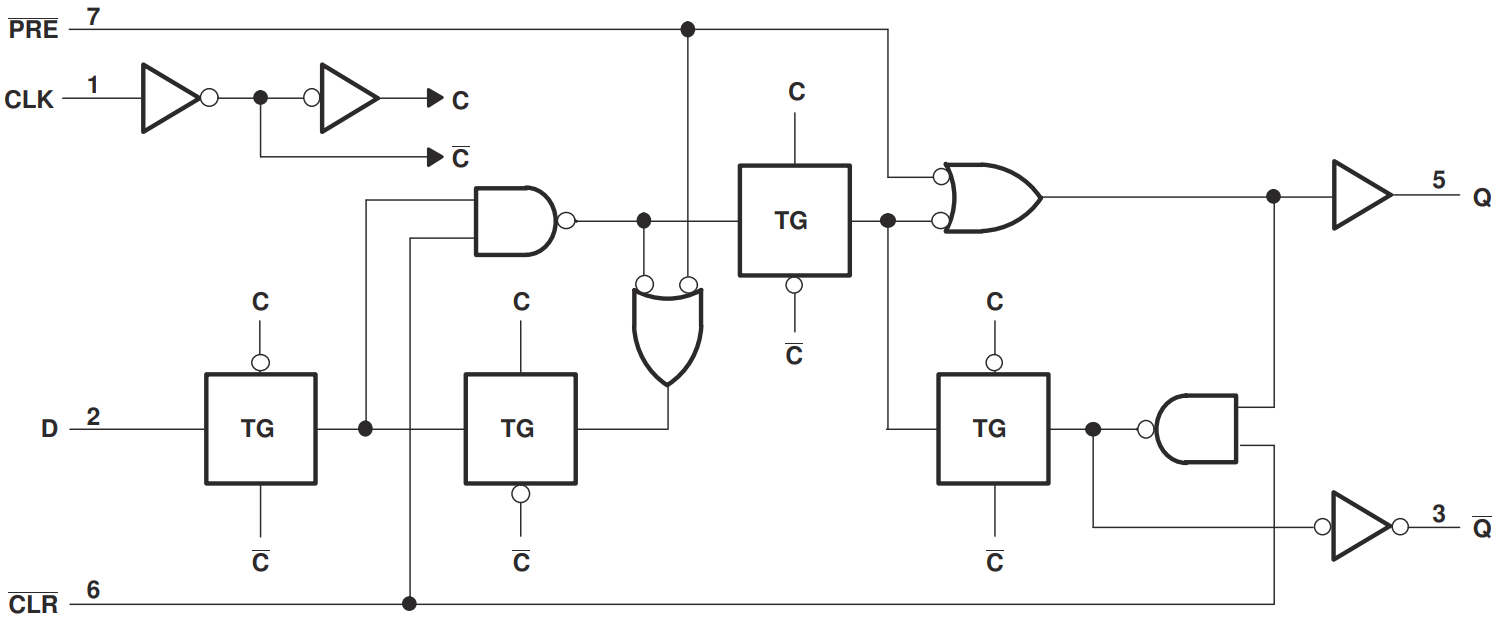

SN74LVC2G74DCURG4 Typical application Circuitry

SN74LVC2G74DCURG4

The SN74LVC2G74DCURG4 is an integrated circuit belonging to the SN74LVC series, renowned for its dual D-type positive-edge-triggered flip-flops. This specific component is engineered for high-performance digital systems where precise data storage and signal modulation are required, such as in computing, data processing, and communication systems.

1. Series Characteristics: The SN74LVC2G74DCURG4 is part of the SN74LVC family, a series celebrated for its low-voltage operation and high-speed interface capabilities. The devices in this series are particularly favored in digital logic applications due to their efficiency and reliability in processing digital signals. The SN74LVC2G74DCURG4, with its dual flip-flop configuration, offers the advantage of compact and efficient data handling within digital circuits.

2. Pin Configuration and Connectivity Protocol: The SN74LVC2G74DCURG4 comes in an 8-pin package, with each pin assigned a specific function. The pins include two data inputs (D1 and D2), two clock inputs (CLK1 and CLK2), two outputs (Q1 and Q2), one power supply pin (VCC), and one ground pin (GND). Data input pins (D1 and D2) receive the signals to be stored or transferred. The clock input pins (CLK1 and CLK2) trigger the flip-flops on the rising edge of the clock signal, enabling the transfer or storage of data. The output pins (Q1 and Q2) deliver the results of the flip-flop operations. While GND is connected to the circuit's ground, VCC is connected to the power source.

3. Implementing in Digital Systems: In integrating the SN74LVC2G74DCURG4 into digital systems, it is crucial to ensure that the clock signals are accurately timed and synchronized with the data inputs for proper operation. The flip-flop changes state at the rising edge of the clock signal, making the timing of these signals essential for reliable data handling.

4. Application in Digital Logic Design: The SN74LVC2G74DCURG4 is commonly employed in digital logic designs that require temporary data storage, data synchronization, or timing adjustments. For applications like portable electronic gadgets, where efficiency and space are crucial factors, its twin flip-flop design is perfect.

5. Design Considerations for Optimal Performance: When designing circuits with the SN74LVC2G74DCURG4, maintaining signal integrity is crucial, particularly for high-speed operations. This involves minimizing trace lengths for the clock and data lines to reduce potential signal degradation. Decoupling capacitors should also be positioned adjacent to the VCC pin in order to stabilize the power supply.

6. Precautions During Handling: It is important to handle the SN74LVC2G74DCURG4 carefully to prevent damage from electrostatic discharge (ESD). Employing ESD-safe practices during handling, soldering, and installation is vital to maintain the integrity of the device.

In conclusion, the SN74LVC2G74DCURG4, a part of the SN74LVC series, stands out as a dual D-type flip-flop, ideal for digital systems that necessitate efficient and accurate data storage and modulation. Its design facilitates precise control over digital signals, with careful attention to signal timing, power stability, and circuit layout being crucial for its effective deployment in digital logic applications.
