Texas Instruments SN74LVC2G66DCTRG4

Part No.:: SN74LVC2G66DCTRG4

Manufacturer:: Texas Instruments

Package:: 8-LSSOP, 8-MSOP (0.110, 2.80mm Width)

Datasheet:: SN74LVC2G66DCTRG4.pdf

Description:: IC SWITCH DUAL 1X1 SM8

In Stock:: 2481

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G66DCTRG4 Specifications

Package/Case:
8-LSSOP, 8-MSOP (0.110, 2.80mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
2
On-StateResistance(Max):
10Ohm
Channel-to-ChannelMatching(ΔRon):
2Ohm (Max)
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
3.9ns, 6.3ns
-3dbBandwidth:
300MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
6pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-58dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74LVC2G66DCTRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G66DCTRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G66DCTRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G66DCTRG4 information

Views：

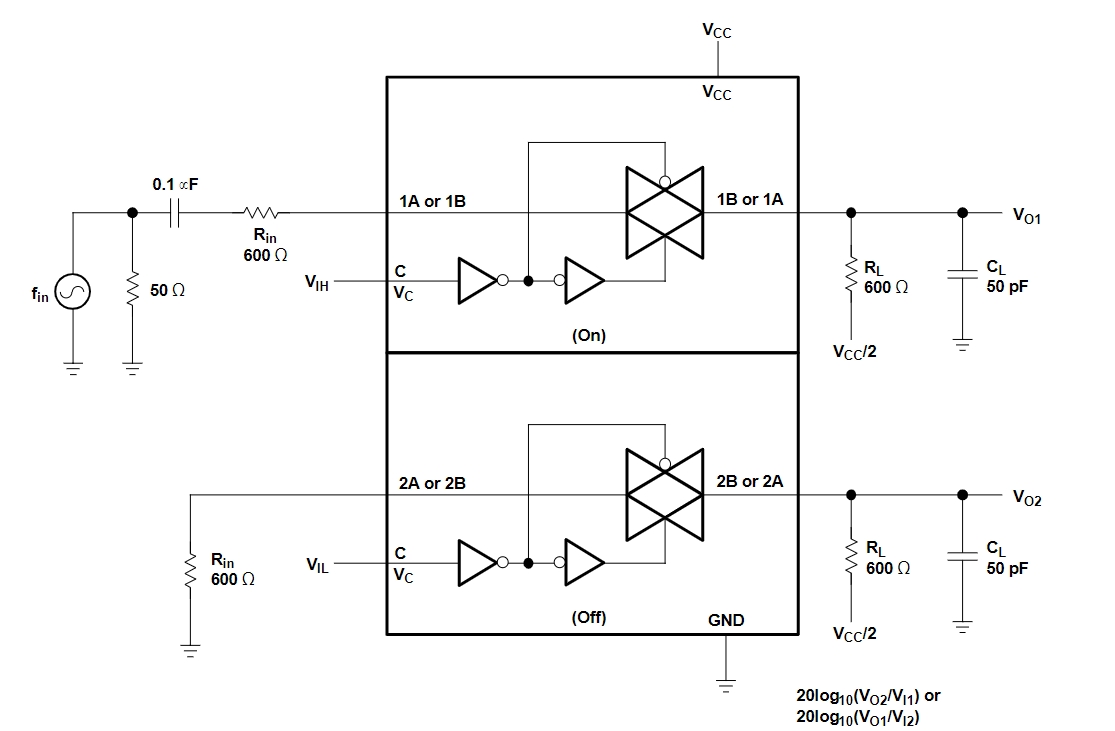

SN74LVC2G66DCTRG4 Typical application Circuitry

SN74LVC2G66DCTRG4

The SN74LVC2G66DCTRG4 is a dual bilateral switch IC, functioning as a precision analog switch controlled by digital signals. It's typically used in applications requiring the switching of analog or digital signals, such as multiplexing signals, switching audio or video inputs, or in communication systems for signal routing.

Application Scenario: Switching Between Sensor Inputs in a Data Acquisition System

In this scenario, SN74LVC2G66DCTRG4 is used to selectively switch between multiple sensor inputs in a data acquisition system, allowing a single analog-to-digital converter (ADC) to process signals from different sensors.

Circuit Connection Strategy

1. Sensor Input Connectivity

- Connect the output of the sensors to the I/O pins (1Y and 2Y; Pins 5 and 4) of SN74LVC2G66DCTRG4.

- Make sure the sensor outputs are compatible with the voltage range of SN74LVC2G66DCTRG4.

2. ADC Interface

- Attach the ADC input to the I/O pins (1A and 2A; Pins 2 and 1) of SN74LVC2G66DCTRG4.

- Consider impedance matching and maintaining signal integrity for accurate ADC readings.

3. Control Signal Implementation

- The control inputs (1OE and 2OE; Pins 3 and 6) of SN74LVC2G66DCTRG4 are connected to the controlling microcontroller or digital system to manage the sensor selection.

- Ensure the control signals are within the valid logic level range for SN74LVC2G66DCTRG4.

4. Power Supply Configuration

- Connect VCC (Pin 8) to a suitable power supply (typically 3.3V or 5V) and GND (Pin 7) to the system ground.

- Use decoupling capacitors close to the power pins to provide a stable power supply and minimize noise for SN74LVC2G66DCTRG4.

5. Grounding and Decoupling Measures

- Implement a solid ground plane and use decoupling capacitors at the power pins to reduce noise and stabilize operation.

- Proper grounding and decoupling are vital to maintain the operational stability of SN74LVC2G66DCTRG4.

Design Parameters

When integrating SN74LVC2G66DCTRG4 into a circuit, several important factors need attention:

1. Voltage Compatibility

- Confirm that the sensor outputs and control logic levels are within the operating range of SN74LVC2G66DCTRG4.

2. Signal Integrity

- Use appropriate routing, shielding, and buffering, if necessary, to maintain signal integrity, especially in noisy environments or for sensitive ADC measurements.

3. Power Supply Noise

- Ensure the power supply is stable and clean, as noise can impact the performance and accuracy of SN74LVC2G66DCTRG4.

4. Thermal Considerations

- Assess the power dissipation and thermal profile of SN74LVC2G66DCTRG4, especially when switching signals at high frequencies or in a high-temperature environment.

5. Circuit Protection

- Implement protection mechanisms, such as surge protectors or isolation techniques, to safeguard SN74LVC2G66DCTRG4 and connected devices from electrical anomalies.

By carefully addressing these considerations and leveraging the operational capabilities of SN74LVC2G66DCTRG4, engineers can effectively use this dual bilateral switch in data acquisition systems, ensuring precise and flexible signal routing from multiple sensors to an ADC.
